Quick Details
-
Mounting:
-
Direct or with metal kit
-
Input:
-
12-30V
-
Body:
-
Black
-
Diameter:
-
50mm
-
Control mode:
-
IO/IB/IOD
-
M12 quick connector:
-
optional
Quick Details
-
Color:
-
Red/Yellow/Green/blue
-
Accessories:
-
Nut, Gasket/ aluminum pipe/metal kit(optional)
-
Base thread:
-
M30X1.5mm
-
Mounting:
-
Direct or with metal kit
-
Input:
-
12-30V
-
Body:
-
Black
-
Diameter:
-
50mm
-
Control mode:
-
IO/IB/IOD
-
M12 quick connector:
-
optional

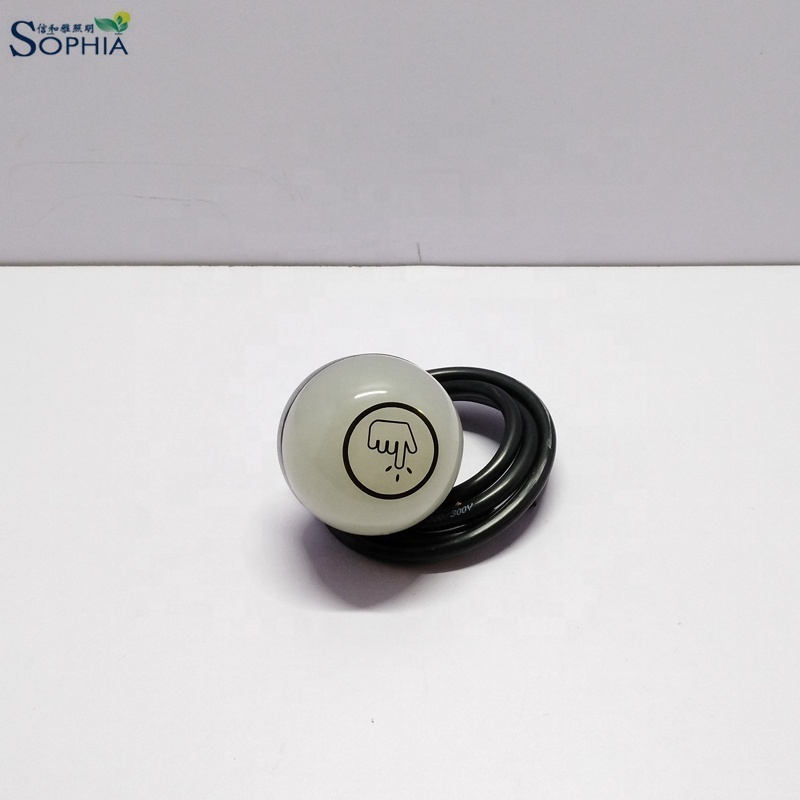

Sophia 50mm diameter 12V-30V touch button indicator light, pick to light used in automation, pharmacy, hospital, WMS system
Fixed by aluminum pipe & foldable base
End with cable or M12 quick connector
I
tem No.: RL50-T Series
Power: Less 5W;
Input: DC12V-30V;
Supply current:
Red, Green, Blue<75mA(12VDC); <40mA(30VDC);
Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);
White<205mA(12VDC); <100mA(30VDC)
Job inactivity-red, Job activity-blue, Job finish-green
IB intelligent bus: Indicator color customized and controlled by device instruction.
|
RL50-T Touch button Indicator series |
|
|
Supply Voltage |
12V-30Vdc |
|
Supply Current |
Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc |
|
Output Rating: |
|
|
a, Maximum Load |
150mA |
|
b, On-State Saturation Voltage |
<2V(10mA dc); <2.5V(150mA) |
|
c, Off-State Leakage Current |
<10uA(30Vdc) |
|
Indicators |
7 colors available: red, green, yellow, blue white etc |
|
Job inactivity |
Job inactivity-red, job activity-blue, job finished green |
|
IB intelligent bus |
Customized indicator colors, controlled by equipment instruction |
|
Electronic Protection |
Protected against reverse polarity and over current |
|
Output Response Time |
25 milliseconds(max.) On and Off |
|
Connections |
Integral 5-pin M12 QD wth 0.3m cable, or 1m integral cable |
|
Working temperature ( ℃ ) |
-40 ℃ ~50 ℃ |
|
Humidity |
95% at 50℃ |
|
IP rating |
IP69K |
|
Dimension |
50mmx5mm(ODxH) |
|
Mounting thread |
M30x1.5mm |
|
Material |
ABS and Polycarbonate |
|
Approval |
CE FCC |
|
Feature |
Interactive touch button; Actuated with work gloves; Rugged, fully encapsulated IP69K construction; 7 colors available Price is much cheaper than international brand |
