Quick Details
-
Model Number:
-
AR7600
-
Product name:
-
auto refractometer
-
Certificate:
-
CE ISO
-
Measure range:
-
-30.000~+25.000
-
cyl:
-
0 to +/-10D
-
monitor size:
-
7" touch screen
-
function:
-
contact lens measure , IOL
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
REDSUN
-
Model Number:
-
AR7600
-
Product name:
-
auto refractometer
-
Certificate:
-
CE ISO
-
Measure range:
-
-30.000~+25.000
-
cyl:
-
0 to +/-10D
-
monitor size:
-
7" touch screen
-
function:
-
contact lens measure , IOL

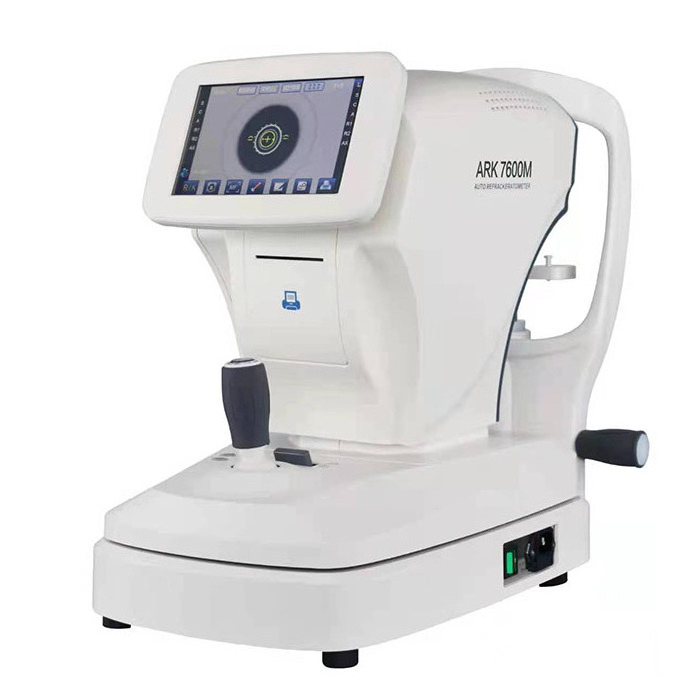

Auto refratometer
(AR-7600 ,ARK-7600)
AR-7600 Without keratometer
ARK-7600 With keratometer
7" Color and touch screen,
one key lock
IOL function
contact lens measure
Technical Data
New optical system, unique imaging impression
Hartman imaging analyzing and processing technology, accurate measurment result
touch screen, can move front and back freely
Motorized chinrest
Vertex Distance(VD): 0.0, 12.0, 13.75, 15.0
SPH: -30.000~+25.000 ( VD= 12mm, 0.01 , 0.06, 0.12, 0.25 Unit)
CYL: 0.000~ ± 10.000 (0 06, 0.12, 0.25 Unit )
Axis(AX): 1 . ~ 180 . ( 1 . Unit )
Cylinder Form : , +, ±
Puiple Distαnce(PD): 10~86mm
Minimum Pupil Diameter: 2.0mm
Pupil Diameter: 2.00-8.00mm
Measuring Light Ene ( gy: <30L) w ( Insure measuring safety )
Radius of Curvature: 5.0~10.0mm ( 0 01 mm Unit )
Corneal Power: 33.000~67.000
( In case that the corneal equivalent refractive powe ( is 1.3375 )
Corneal As↑igmatism: 0.000~ 15.000 ( 0.060/0 120/0 250 Unit )
Dαta Storing: Each 10 measured values of left eyes and right eyes
Axis: 1 . ~ 180 .
Chart: Auto fog
Monitor: SHARP 7" TFT LCO touch screen (Angle of view adjustable)
Built-in Printer: 57mm thermal printer, auto paper-cutting
Electrical Powe : AC 100~250V, 50/6οHz
NW: 22kg
GW: 26.5kg
Dimensions(packing): (L)680mm X (W)400mm×(H)640mm
2. Other Performance Parameters
2.1 7″TFT touch screen (angle adjustable)
2.2 Printer: 57mm thermal printer, auto paper cutting
2.3 Measuring Light Energy
2.4 Measuring Time: <0.5s
2.5 Minimum 2.0mm pupil can be measured.
The application of cloud and mist chart technology allows the patients’ eyes to look at the internal targets in a natural and comfortable situation and make the measurement more accurate
2.6 Auto tracking, auto focusing and auto measuring of end of measurement (partial model)
2.7 Electrical Power: AC100 ~ 250V, 50/60Hz
Specifications
| Vertex Distance(VD): | 0.0, 12.0, 13.75, 15.0 |
| SPH: | -30.000~+25.000 ( VD= 12mm, 0.01 , 0.06, 0.12, 0.25 Unit) |
| CYL: | 0.000~ ± 10.000 (0 06, 0.12, 0.25 Unit ) |
| Axis(AX): | 1 . ~ 180 . ( 1 . Unit ) |
| Cylinder Form | , +, ± |
| Puiple Distαnce(PD) | 10~86mm |
| Minimum Pupil Diameter | 2.0mm |
| Pupil Diameter | 2.00-8.00mm |
| Radius of Curvature | 5.0~10.0mm ( 0 01 mm Unit ) |
| Corneal Power | 33.000~67.000 |
| Corneal As↑igmatism | 0.000~ 15.000 ( 0.060/0 120/0 250 Unit ) |
| Dαta Storing | Each 10 measured values of left eyes and right eyes |
| Axis | 1 . ~ 180 . |
| Monitor | SHARP 7" TFT LCO touch screen (Angle of view adjustable) |
| Built-in Printer: | 57mm thermal printer, auto paper-cutting |
