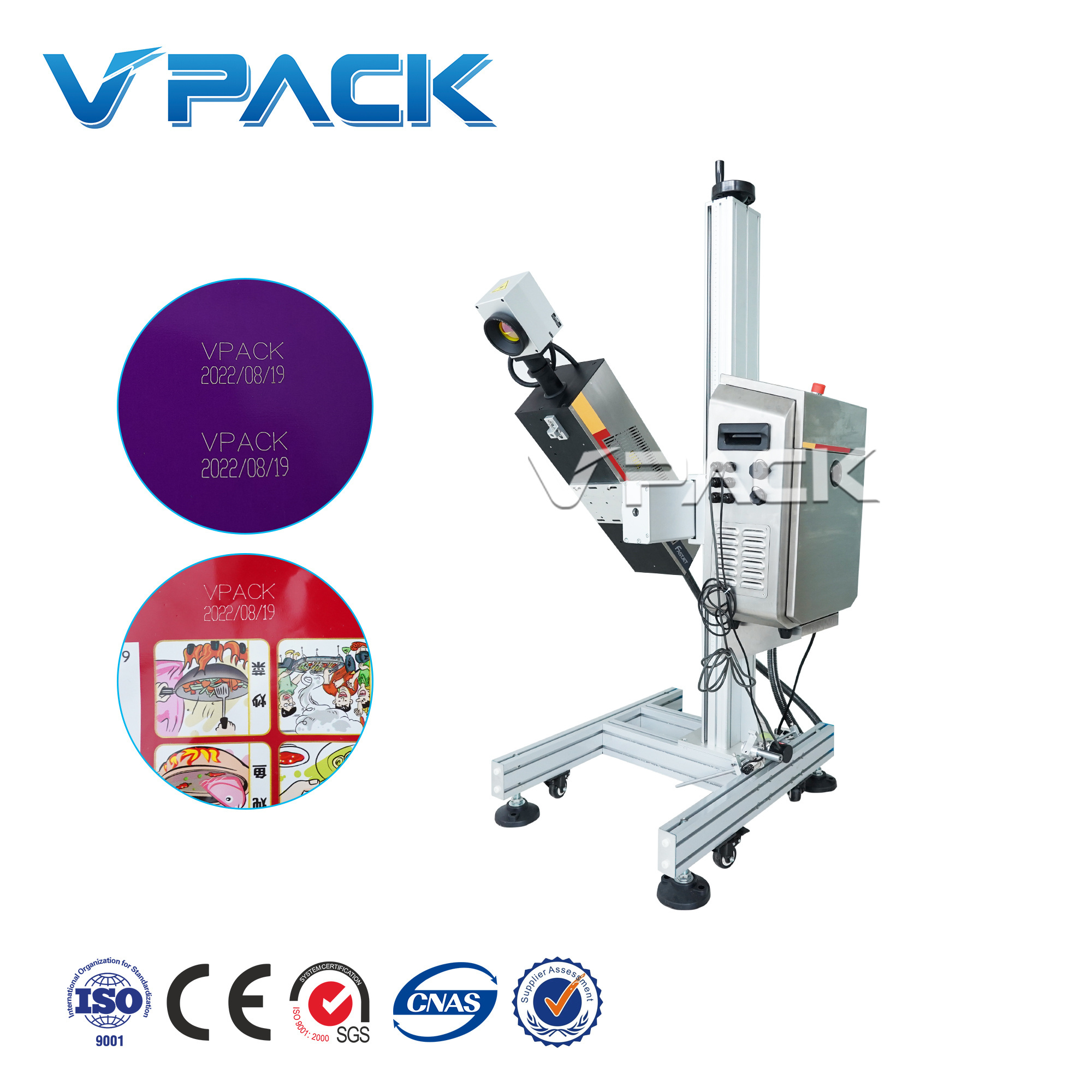

Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box
Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box
Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box
Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box
Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box
Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box
Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box
Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box

Co2 Laser Marking Machine Dater Code Printer for PET water bottle/online flying CO2 laser printing machine print on plastic/box

FOB Reference Price: Get Latest Price
≥1 Sets
US $5000
≥2 Sets
US $4900
≥3 Sets
US $4800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Cooling Mode:
Air Cooling
Control Software:
WIN CE
Place of Origin:
Jiangsu, China
Brand Name:
V PACK
Marking Head Brand:
Code
Weight (KG):
39 KG
Mode of Operation:
Automatic
Configuration:
CO2
Feature:
Laser
Product name:
Lazer Marking Machine
Marking Speed:
0-7000mm/s
Laser Power:
10watt 20watt 30watt
Certification:
ISO
After-sales Service Provided:
Video technical support
After Warranty Service:
Field maintenance and repair service
Marketing Type:
New Product 2023
Laser source:
CO2 Laser Source

Quick Details

Working Accuracy:
0.01mm
Graphic Format Supported:
PLT, DXF, BMP, JPEG
Laser Type:
CO2
Cooling Mode:
Air Cooling
Control Software:
WIN CE
Place of Origin:
Jiangsu, China
Brand Name:
V PACK
Marking Head Brand:
Code
Weight (KG):
39 KG
Mode of Operation:
Automatic
Configuration:
CO2
Feature:
Laser
Product name:
Lazer Marking Machine
Marking Speed:
0-7000mm/s
Laser Power:
10watt 20watt 30watt
Certification:
ISO
After-sales Service Provided:
Video technical support
After Warranty Service:
Field maintenance and repair service
Marketing Type:
New Product 2023
Laser source:
CO2 Laser Source
2022 New Design Co2 Laser Printer
(1) This machine has Stainless steel housing and 10.2" Hd touch screen.
(2) It can achieve high-quality & high-speed printing in food bags, PET bottles, cosmetic box, cartons etc.
(3) It is easy to Install and operate, because it is portable and has one-click backup & recovery.
(4) Ultra-high-speed makes up to 150,000 markings per hour.
Product Description

What's the advantage of CO2 Laser printer?

1. Applies high-contrast marks at ultra-fast speeds on nonmetallic products, wood, PET, plastic glass and other industrial products；
2. The marking performances are clearly and accurately positioned and code precision that does not adversely impact product aesthetics；
3. Virtually no maintenance and a source life expectancy of up to 3-5 years,delivers high performance and long-lasting reliability；
4. Meet the demands of high-speed packaging operations；
5. Increasing product throughput and maximizing productivity.
Machine configuration instructions
Laser
touch screen version(10w,Wave length 9.3,increase by 1000)
Vibrating mirror
Digital,analog mirror.
Field mirror
Singapore brand
Power
Taiwan brand
Encoder
Japanese OMRON
Detailed Images
Quick start and easy operation
1.Touch screen control is easier to operate for a best ease of use.
2.Application setting and tas creation takes only 2 minutes.
3.Simple pipelining can be made from the select box menu and preview window.
4.Automatic detection of ready-to-use encoders and product detector.
Printed code clear.
The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.Laser heads need not
be cleaned,not will they age or be replaced over time.Ink spray codes may be scratched or erased,but laser jet codes are
permanent.It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality laser
printing effect.
Laser and Red Light
Power supply and Control card
Product Paramenters
CO2 C6011
CO2 C6030-F
Laser Machine Characteristics
Material
All aluminum structure
Laser
Sealed metal radio frequency carbon dioxide laser generator
Continuous output power
≥10W
≥30W
Laser wavelength
9.3um
10.6um
Galvanometer deflection
High precision Double d scanning system
Engraving speed
≤7000mm/s
Master control
Highly integrated motherboard with 10 inch screen
Operating system
WIN CE
Cooling System
Air cooling system
Laser Parameters
Focus lens
Focal length 138 mm
Marking type
Dot matrix and vector machine (can play both dot matrix and vector)
Minimum line width
0.03mm
Repositioning Accuracy
0.01mm
Marking area
110mm×110mm（Choosable）
Locate mode
Red light focusing
Lines to type
Any lines in the marking range
Production Line Speed
0~100m/min (depends on the material) , 0~200m/min (depends on the material)
Support Types
Font
Standard Chinese and English, Numbers, etc
File Format
BMP/DXF/HPGL/JPEG/PLT
Bar codes
CODE39、CODE128、CODE126、QR
Parameters
Power
220V
Power Consumption
300W
650W
Machine net weight
14kg
25kg
3 d bracket net weight
30kg
Operational Reliability
External temperature 0℃-45℃;Humidity≤95% or less; Non - Condensing; No vibration
Laser Code Printer  used in water production line
4000BPH Water Production Line
9000BPH Water Production Line
12000BPH Water Production Line
Laser Code Printer for different product
Laser Code Printer work on water bottle video
Laser Code Printer work on zip-top can video
Laser Code Printer work on
PVC tube video
Related Products
Laser Code Printer work on
packing bag video
Laser Code Printer work on
engraving metal plate video

Fiber Laser printer

(1)High speed running
The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.
(2)High quality accessories
Laser heads need not be cleaned,not will they age or be replaced over time.
(3)Powerful functions
It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality
laser printing effect.
(4) Permanent marking
Ink spray codes may be scratched or erased,but laser jet codes are permanent.
(5) laser print words very clear
Model
Model
Fiber W7030
Fiber W7040
Fiber W7320
Laser parameters
Average output power
20W 30W 50W Optional
Output beam quality
＜1.5㎡






Marking performance
Marking line depth
≤1mm
Minimum focus spot
0.0005mm
Minimum character height
0.15mm
Repeat accuracy
±0.001mm
Maximum linear marking speed
12000mm/s
Marking format
Graphics, text, barcode, QR code, date, shift, batch number, serial number, File link
Standard engraving range
100mm×100mm
Optional engraving range
110mm×110mm  150mm×150mm
200mm×200mm  300mm×300mm

Physical characteristics
Power consumption of the whole machine
≤160W
Electricity demand
220V±10%/50Hz/4A
Cooling method
Air-cooled
Control interface
USB
Laser module life
Up to 100,000 hours
Advantage
- Great stability with high precision Intelligent circuit control
- Clear and unerasable marking Used for high speed production line
- Low cost for maintenance
- Easy to operate with an advantages of long life time

UV Laser Printer

Apply to HDPE/LDPE material.UV laser coding machine can help pharmaceutical, medical and cosmetics industry manufacturers in the whole life cycle of the product is a good brand protection and traceability, to prevent channeling goods and counterfeiting. No matter how the manufacturer's products are positioned to meet the requirements of consistent high quality coding, such as better visual system readability, a key element of the pharmaceutical packaging line, VPACK is a supplier of UV laser coding machines that provide permanent, high quality coding.
