Quick Details
-
Model Number:
-
SFLS200
-
Product Name:
-
Connecting Rod Float Level Switch
-
Measurement range:
-
L: 300~6000mm
-
Electrical interface:
-
M20 * 1.5 (internal)
-
Accuracy:
-
± 2.5%
-
Resolution:
-
± 10 mm
-
Working pressure:
-
≤1.6MPa
-
Output signal:
-
Relay alams
-
Power supply:
-
24VDC (12~36V DC)
-
Medium temperature:
-
- 20 ~ 150 ℃
-
Protection grade:
-
IP65
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SFLS200
-
Product Name:
-
Connecting Rod Float Level Switch
-
Measurement range:
-
L: 300~6000mm
-
Electrical interface:
-
M20 * 1.5 (internal)
-
Accuracy:
-
± 2.5%
-
Resolution:
-
± 10 mm
-
Working pressure:
-
≤1.6MPa
-
Output signal:
-
Relay alams
-
Power supply:
-
24VDC (12~36V DC)
-
Medium temperature:
-
- 20 ~ 150 ℃
-
Protection grade:
-
IP65
OVERVIEW

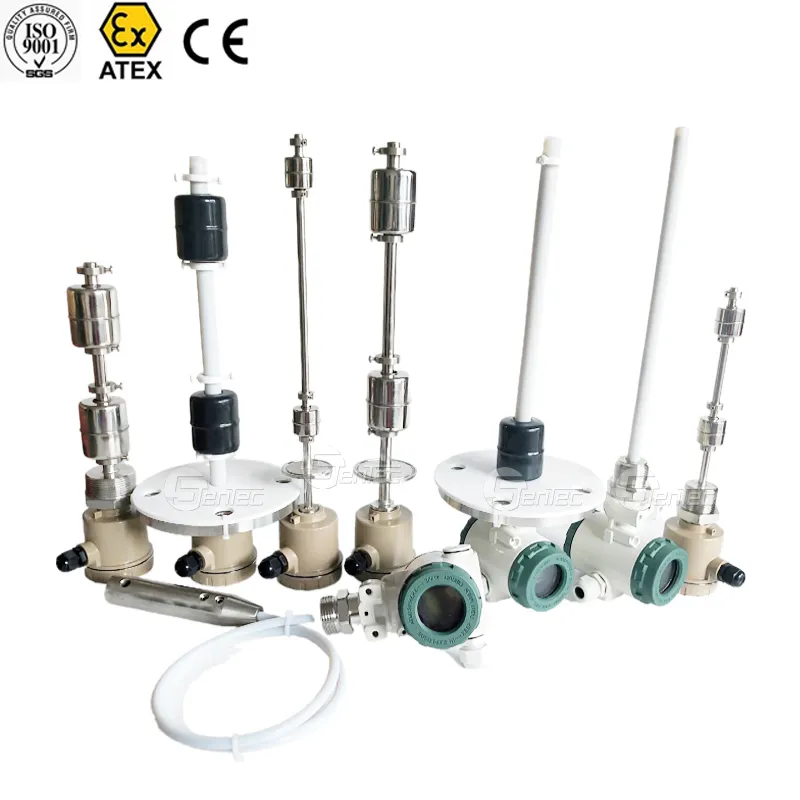

SFLS200 series float level switch is mainly composed of three parts: magnetic float, sensor and transmitter. 304 stainless
steel,PVC, PTFE and other materials are used as protection pipes and installation fixings for the floating ball liquid level
meter; for highly corrosive media, polytetrafluoroethylene is sintered on the surface of contact medium metal protection pipes and floating balls to ensure that the liquid level meter is not corroded. According to the user's requirements, the magnetic sensor is preset, and the floating ball changes the preset state of the magnetic sensor along with the up and down movement of the liquid level to send the on-off signal, so as to realize the monitoring of the liquid level.
SFLS200 series float level switch is mainly composed of three parts: magnetic float, sensor and transmitter. 304 stainless
steel,PVC, PTFE and other materials are used as protection pipes and installation fixings for the floating ball liquid level
meter; for highly corrosive media, polytetrafluoroethylene is sintered on the surface of contact medium metal protection pipes and floating balls to ensure that the liquid level meter is not corroded. According to the user's requirements, the magnetic sensor is preset, and the floating ball changes the preset state of the magnetic sensor along with the up and down movement of the liquid level to send the on-off signal, so as to realize the monitoring of the liquid level.
|
voltage
|
24VDC (12~36V DC)
|
|
Medium
|
density: ≥ 0.5g/cm3, viscosity ≤ 0.07pas
|
|
Range
|
300~6000mm
|
|
Accuracy
|
± 1.5% (H ≥ 1000mm), ± 2.5% (H < 1000mm)
|
|
Medium temperature
|
- 20 ~ 150 ℃
|
|
Output signal
|
Relay alams
|
|
Output load
|
90 ~ 1K Ω, 0 ~ 500 Ω
|
|
Connecting flange
|
DN100 PN1.6 ball φ 90; DN80 PN0.6 ball φ 76
|
|
Working pressure
|
≤1.6MPa
|
|
Indication
|
LED
|
|
Sensor material
|
Stainless steel 316
|
|
Shell material
|
Aluminum alloy
|
|
Explosion proof
|
flameproof type: Exd II BT4-6; Intrinsic safety type: Exia II CT4-6
|
MAIN FEATURES
* It can be used for multi-point control, and the control switch position can be customized according to the user's needs
* Using magnetic spring switch does not need power supply, contact life can reach 2 million times
* Comparison of multiple switch control points with other types of liquid level switch
* There are PVDF, PP, PVC plastic materials and SUS304, SUS316 metal materials, because acid and alkali, high temperature environment can be used
* The magnetic spring switch is completely separated from the conductor from the liquid. It can also be used in high temperature and high voltage equipment
* Simple structure, stable and reliable performance, convenient installation
* It can be used for multi-point control, and the control switch position can be customized according to the user's needs
* Using magnetic spring switch does not need power supply, contact life can reach 2 million times
* Comparison of multiple switch control points with other types of liquid level switch
* There are PVDF, PP, PVC plastic materials and SUS304, SUS316 metal materials, because acid and alkali, high temperature environment can be used
* The magnetic spring switch is completely separated from the conductor from the liquid. It can also be used in high temperature and high voltage equipment
* Simple structure, stable and reliable performance, convenient installation
Packaging&Shipping
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
Q: How to contact you?
A: Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
The specific price is subject to the parameters, please contact us for the quotation
