ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.
- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Linux
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TH LASER
-
Marking Head Brand:
-
zhibo-tech
-
Weight (KG):
-
12 KG
-
Marking Area:
-
120x80mm
-
Configuration:
-
Handheld type
-
Product name:
-

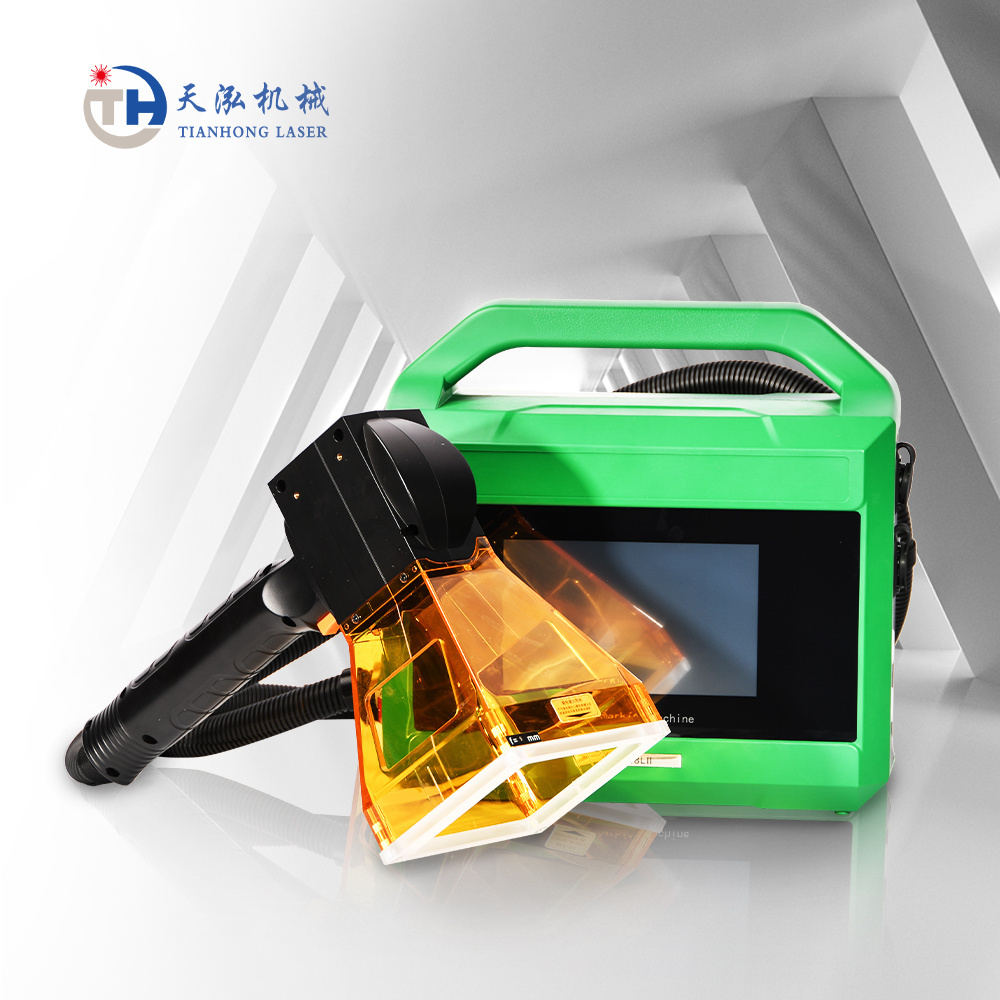

Fiber Optical Laser Marking Machine
-
Laser source:
-
Raycus
-
Applicable Material:
-
Metal Plastic
-
Laser Power:
-
20W /30w
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0.01-0.5mm
-
Power supply:
-
AC220V +10% / 50HZ
-
Control system:
-
Linux
-
Lifespan of laser device:
-
100000hours
Quick Details
-
Working Accuracy:
-
Linux
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Linux
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TH LASER
-
Marking Head Brand:
-
zhibo-tech
-
Weight (KG):
-
12 KG
-
Marking Area:
-
120x80mm
-
Configuration:
-
Handheld type
-
Product name:
-
Fiber Optical Laser Marking Machine
-
Laser source:
-
Raycus
-
Applicable Material:
-
Metal Plastic
-
Laser Power:
-
20W /30w
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0.01-0.5mm
-
Power supply:
-
AC220V +10% / 50HZ
-
Control system:
-
Linux
-
Lifespan of laser device:
-
100000hours
Product Description
Main Configurations
|
Serial number
|
Name
|
Brand
|
Model
|
Quantity
|
|
1.
|
Laser Source
|
Wuhan Raycus
|
F20/30/50
|
1 SET
|
|
2.
|
Galvanometer
|
Shenzhen zhibo-tech
|
ZB2D10C1064
|
1 PIECE
|
|
3.
|
Field mirror
|
Shenzhen JGZ
|
JGZL1-1064-160-110
|
1 PIECE
|
|
4.
|
Power Supply
|
Taiwan Mingwei
|
S150-24W
|
1 SET
|
|
5.
|
Software control system
|
Shenyang Baichuang
|
8-inch built-in control screen
|
1 SET
|
|
6.
|
Battery (optional)
|
BIKE
|
12000mA
|
1 PIECE
|
|
7.
|
wave filter
|
Taiwan YUNSANDA
|
CW2B-10A
|
1 SET
|
Technical Parameters
|
Project
|
Parameter table
|
TH-20W
|
TH-30W
|
TH-50B
|
||
|
Overall characteristics |
Material of complete machine
|
Sand blasting oxidation all aluminum structure
|
|
|
||
|
|
Laser
|
The service life of fiber laser generator is more than 100000 hours
|
|
|
||
|
|
Laser wavelength
|
1064nm
|
|
|
||
|
|
Actual output power
|
≥20W
|
≥30W
|
≥50W
|
||
|
|
Marking speed
|
≤12000mm/s
|
|
|
||
|
|
master control
|
8 inch touch controller
|
|
|
||
|
|
Cooling system
|
Normal temperature air cooling
|
|
|
||
|
|
Minimum line width
|
0.0012mm
|
|
|
||
|
|
Positioning mode
|
Red light indication
|
|
|
||
|
|
Number of lines of engraved characters
|
Within the marking range
Any number will do |
|
|
||
|
|
Production line speed
|
0 ~ 130m / min (depending on the material)
|
|
|
||
|
Software introduction |
Multilingualism
|
English, French, Spanish, German, Chinese, Russian, Arabic, etc
|
|
|
||
|
|
Operation authority
|
Multi user management authority
|
|
|
||
|
|
operating system
|
Linux system
|
|
|
||
|
|
Inkjet mode
|
Static, analog and encoder. Three printing modes
|
|
|
||
|
|
Reserved signal
|
Start printing, printing status, printing completion, fault alarm
|
|
|
||
|
|
data protection
|
With power-off data protection function
|
|
|
||
|
|
Missing print monitoring
|
False triggering due to material reflection, providing overspeed
alarm function
|
|
|
||
|
|
Remove intersections
|
Automatically remove intersection points to avoid overlapping
|
|
|
||
|
|
Coding software
|
It can realize single and dual code sending
|
|
|
||
|
Supporting content |
typeface
|
Chinese, English, digital, traditional and other standard font
|
|
|
||
|
|
file format
|
BMP/DXF/HPGL/JPEG/PLT
|
|
|
||
|
|
bar code
|
Code39, code128, code126, QR, Zhizhi code (optional)
|
|
|
||
|
Parameter |
Power Supply
|
Standard configuration: external power supply 220V / 50Hz
|
|
|
||
|
|
Power consumption
|
200W
|
|
|
||
|
|
Net machine weight
|
Handheld case: 7kg, handpiece: 1.25Kg, total weight after carton packaging: 8.25kg
|
|
|
||
|
|
Overall dimensions
|
Case: 270 * 155 * 245, hand-held head: 240 * 100 * 230mm,
packing case: 470 * 410 * 360mm
|
|
|
||
|
|
Battery endurance
|
Optional: built in battery: 12000ma normal use time 12-16 hours
|
|
|
||
|
Environment
|
requirement
|
External temperature: 0 ℃ - 45 ℃; Humidity ≤ 95%;
Non condensing; No vibration
|
|
|
||
Applicable Materials
ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.
Applicable Industries
communication products, sanitary ware, tool, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Packing&Shipping
1.Our wooden case is after fumigation treatment.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Company Introduction
1, JINAN Tianhong Mechanical Equipment Co., Ltd. Located in the beautiful "spring city " Jinan, is a professional CNC Machine company with manufacturing,R&D and marking.
2, Jinan Tianhong supply various CNC product such as advertising, application. Art and Craft, Organic Glass, Mould, Marking,Automobile Industry, Textile Machinery, Electronics, and so on.
3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality,
Customer First" is the corporate management purpose. We have got good reputation and many agents all over the world especially in North America, European, Middle East and South Asia
4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better !
2, Jinan Tianhong supply various CNC product such as advertising, application. Art and Craft, Organic Glass, Mould, Marking,Automobile Industry, Textile Machinery, Electronics, and so on.
3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality,
Customer First" is the corporate management purpose. We have got good reputation and many agents all over the world especially in North America, European, Middle East and South Asia
4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better !
After Sales Service
1) 24 Hours online service.
2) 24 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas and also remote assistance.
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to install the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
Jinan Tianhong Co.,ltd supply free technical training for all customers all over the world until the workers from buyer can
operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
2) 24 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas and also remote assistance.
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to install the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
Jinan Tianhong Co.,ltd supply free technical training for all customers all over the world until the workers from buyer can
operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a MACHINE to me,thanks?
Yes, In order to recommand you the suitable machine, please tell me the max working area, materials to do .
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours
service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best
shipping freight and machine price send to you
5)Payment terms
a. T/T in advance
b. L/C is acceptiable
c.West Union for Samller Amount
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a MACHINE to me,thanks?
Yes, In order to recommand you the suitable machine, please tell me the max working area, materials to do .
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours
service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best
shipping freight and machine price send to you
5)Payment terms
a. T/T in advance
b. L/C is acceptiable
c.West Union for Samller Amount
6)Delivery terms
Gnerally it will be be delivery within 5 working days after get the payment.
Gnerally it will be be delivery within 5 working days after get the payment.
