Quick Details
-
Brand Name:
-
VANSE
-
Product name:
-

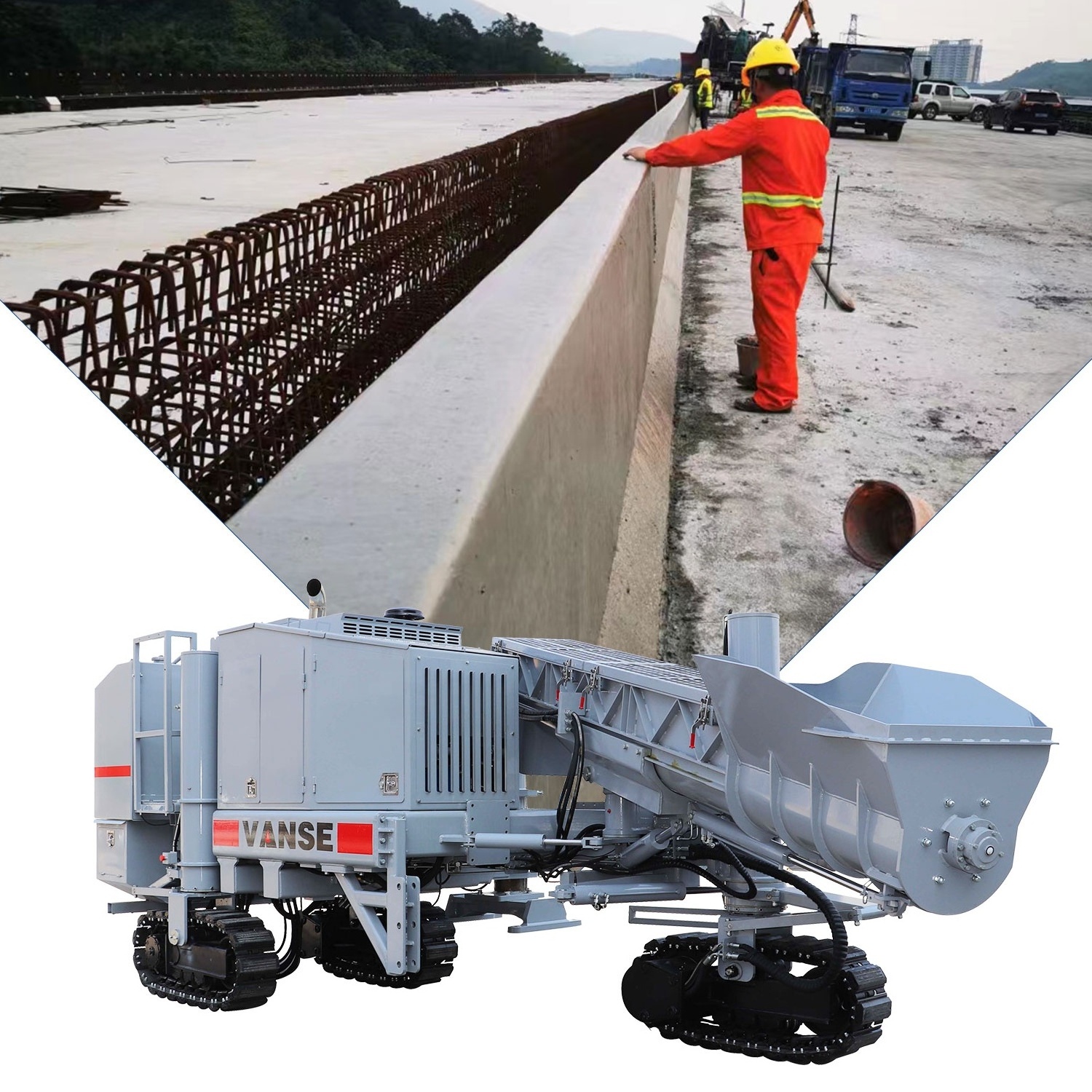

CONCRETE SLIPFORM MACHINE/ CONCRETE CURB MACHINES
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Weight (KG):
-
11000
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VANSE
-
Product name:
-
CONCRETE SLIPFORM MACHINE/ CONCRETE CURB MACHINES
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
PRODUCT DISPLAY
SPECIFICATION
|
WS1400 SLIPFORM MACHINE TECHNICAL PARAMETERS
|
|
|
|
|||
|
Overall Machine Width
|
2400mm
|
Engine Manufacturer Model
|
Cummins QSB4.5
|
|||
|
Machine Height
|
2450mm
|
Number Of Cylinders
|
4
|
|||
|
Total Machine Length
|
6000mm
|
Maximum Torque
|
600N.m @ (1500rpm)
|
|||
|
Minimum Left Turn Radius
|
700mm
|
Maximum Power
|
97KW @ (2200rpm)
|
|||
|
Minimum Right Turn Radius
|
6000mm
|
Maximum Torque Point Power
|
94KW @ (1500rpm)
|
|||
|
Walking Speed
|
0-22m/min
|
Maximum Speed
|
2200rpm
|
|||
|
Speed Of Work
|
0-15m/min
|
Fuel Tank Volume
|
400
|
|||
|
Lifting Height Of Outriggers
|
900mm
|
Water Tank Volume
|
400
|
|||
|
Mold Lifting Height
|
500mm
|
Hydraulic Oil Tank Volume
|
330
|
|||
|
Steering Mode
|
Front Wheel Steering
|
Number Of Walking Tracks
|
Three Tracks
|
|||
|
Number Of Vibration Interfaces
|
6 Ways
|
Total Weight Of Equipment
|
11 T
|
|||
