Quick Details
-
Through the particle size:
-
<8mm
-
Voltage:
-
380V/Customized
-
Delivery pressure:
-
6Mpa
-
Tadpole capacity:
-
60L
-
Keyword:
-
Cement Mortar Plaster Spraying Machine
-
Color:
-
Customized
Quick Details
-
Place of Origin:
-
China
-
Product name:
-
spray painting machine
-
Transport vertical distance:
-
30 m
-
Through the particle size:
-
<8mm
-
Voltage:
-
380V/Customized
-
Delivery pressure:
-
6Mpa
-
Tadpole capacity:
-
60L
-
Keyword:
-
Cement Mortar Plaster Spraying Machine
-
Color:
-
Customized

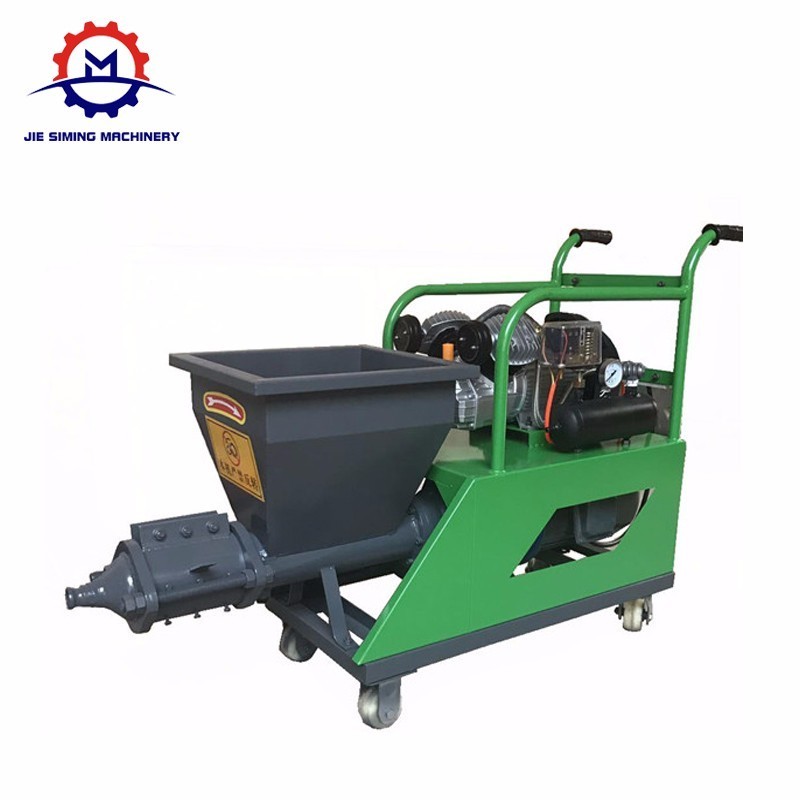

China Factory wall cement mortar sprayer equipment,concrete spraying machineed
Description
Mortar spraying machine is mainly used for building internal and external wall surface goods mixed mortar, putty powder, refractory coating and pressure grouting.
Working principle is feed cement or other products into feeder, and mixing slurry under the action of screw pump, is pressurized continuous discharge, and along the pipeline conveying forward, arrived at the nozzle is introduced into the wind, slurry under the action of wind, jet formation, and spray on the wall surface.
Structure:
1.Basically no ash falls, water, and material, the cost can be reduced more than 20%;
2.Co-mortar operations, such as thin-layer mortar , but also for paint, lacquer, relief effect coatings, waterproofing materials, refractory materials, such as spraying operations, is used for housing protection, paint, paste on the bottom of suitable models
3.Simple operation; speed, high efficiency, low labor intensity
4.Project quality assurance; a multi-purpose machine that can spray mortar ,fire protection materials, refractory materials.
5.It carries with an air compressor and a variable frequency electric box.
Applications :
1.Plugging engineering applications
Water leakage of expansion joint, subway, tunnels, mine plugging, leak-proof projects, dams & other flood water leakage plugging projects.
2.Structure reinforcement projection applications crack
Reinforcement, bridge reinforcement, floor reinforcement.
3.Coating project materials
Waterproof material, cement-based capillary crystalline waterproof(CCCW) coating, Js waterproof coating, polyurethane waterproof plastering, waterproof agent, indoor and outdoor spraying, cement mortar, dry mortar, putty powder, emulsion paint, stone paint
Parameter
| Iterm | Wall Cement Spray Plaster Mortar Putty Spray Plastering Machines |
| Power | 7.5kw |
| Voltage | 380V |
| Input pressure | 6Mpa |
| Transmission of horizontal distance | 60mm |
| Bucket capacity | 50L |
| Through the particles | <8mm |
| The vertical distance transport | 30M |
| Type | High pressure |
pictures
Warranty service
Best after-sales service for every customers within one year product warranty.
Always honest with excellent quality
We will make great efforts to provide our customers with first-class machines, first-class quality, first-class price and service.
1. Each machine is manufactured by professional experienced staff.
