Quick Details
-
Brand Name:
-
Safewill
-
Model Number:
-
ES80A-Y8
-
Product name:
-
Professional industrial dust monitor
-
Monitoring method:
-
Inhalation type
-
Data transmission:
-
4G LTE
-
Particulate matter type:
-
PM2.5/PM10/TSP
-
Standard parameters:
-
Temperature/Humidity/Atmospheric pressure
-
Optional parameters:
-
Wind speed/wind direction/noise
-
Installation method:
-
Column installation
-
Data platform:
-
Support cloud data monitoring
-
Alarm Type:
-
Sound+Light Alarm
-
MOQ:
-
1PC
Quick Details
-
Type:
-
Dust online monitor system
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Safewill
-
Model Number:
-
ES80A-Y8
-
Product name:
-
Professional industrial dust monitor
-
Monitoring method:
-
Inhalation type
-
Data transmission:
-
4G LTE
-
Particulate matter type:
-
PM2.5/PM10/TSP
-
Standard parameters:
-
Temperature/Humidity/Atmospheric pressure
-
Optional parameters:
-
Wind speed/wind direction/noise
-
Installation method:
-
Column installation
-
Data platform:
-
Support cloud data monitoring
-
Alarm Type:
-
Sound+Light Alarm
-
MOQ:
-
1PC
Products Description
|
Product Name
|

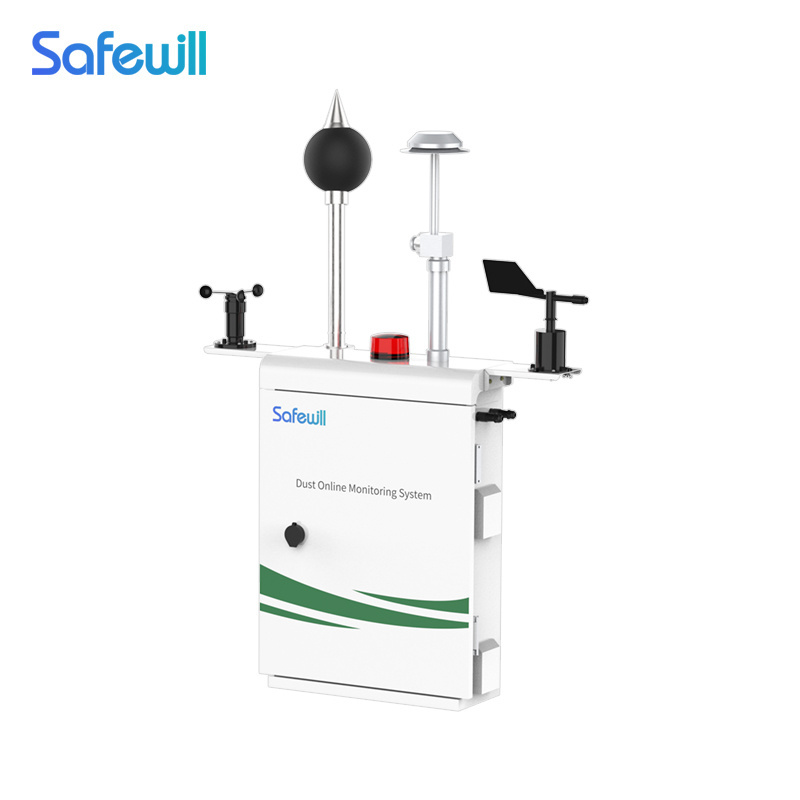

SAFEWILL ES80A-Y8 Dust Online Monitoring System
|
|
|
|
|||
|
Detection Method
|
Diffusion / Suction
|
|
|
|
|||
|
Data Transmission
|
RS485 Modbus/4G LTE Optional
|
|
|
|
|||
|
Preheat Time
|
90 Seconds
|
|
|
|
|||
|
Temperature/ Humidity
|
-20℃~50 ℃/10%RH ~95%RH (No Condensation)
|
|
|
|
|||
|
Power Supply/Consumption
|
AC220V/50Hz/Optional Solar Power Supply/80W（MAX）
|
|
|
|
|||
|
Size
|
620*440*160MM
|
|
|
|
|||
|
The Main Material
|
Cold Rolled Steel Plate
|
|
|
|
|||
|
Installation Method
|
Outdoor Column Installation
|
|
|
|
|||
|
Protection Class
|
IP53
|
|
|
|
|||
|
The Standard Particulate Matter Configuration
|
|
|
|
|
||||
|
Particulate matter
|
Measuring Range
|
Resolution
|
Indication Error
|
|
||||
|
PM2.5
|
0-1000ug/m3
|
1ug
|
>100ug/m3
|
|
||||
|
PM10
|
0-1000ug/m3
|
1ug
|
>100ug/m3
|
|
||||
|
TSP
|
0-1000ug/m3
|
1ug
|
>100ug/m3
|
|
||||
|
Meteorological And Other Parameters(Optional)
|
|
|
|
|
||||
|
Parameters
|
Range
|
|
Resolution
|
Accuracy
|
||||
|
Temperature
|
-30℃--50℃
|
|
0.1℃
|
±1℃
|
||||
|
Humidity
|
0-95%Rh
|
|
1%Rh
|
±5%Rh
|
||||
|
Wind Speed
|
0~60m/s
|
|
0.1 m/s
|
±1m/s
|
||||
|
Wind Direction
|
0-360°
|
|
1°
|
/
|
||||
|
Atmospheric Pressure
|
600—1100hPa
|
|
1 hPa
|
/
|
||||
|
Noise
|
30dB(A)~130dB(A) (A-weighted)
|
|
/
|
±3dB
|
||||
|
Rainfall
|
0~4mm/min
|
|
0.1mm
|
±0.4mm (≤10mm) ±4%(>10mm)
|
||||
|
Illumination
|
0~200,000 Lux
|
|
/
|
±7% (25℃)
|
||||
|
UV Radiation
|
0~400mW/㎡
|
|
1mW/㎡
|
±5%
|
||||
