Quick Details
-
Application:
-
Sever room
-
Power supply:
-
POE and DC12V
-
Output:
-
TCPIP/UDP/SNMP
-
Certificate:
-
ISO9001/CE
-
Display:
-
LED Display
-
Precision:
-
Temp:0.5℃/Humi:3%RH
-
Color:
-
White
-
Size:
-
134*116.5*40mm
Quick Details
-
Place of Origin:
-
Beijing, China
-
Product name:
-
Digital Temperature And Humidity Sensor
-
Alarm:
-
audible and visual alarm
-
Application:
-
Sever room
-
Power supply:
-
POE and DC12V
-
Output:
-
TCPIP/UDP/SNMP
-
Certificate:
-
ISO9001/CE
-
Display:
-
LED Display
-
Precision:
-
Temp:0.5℃/Humi:3%RH
-
Color:
-
White
-
Size:
-
134*116.5*40mm

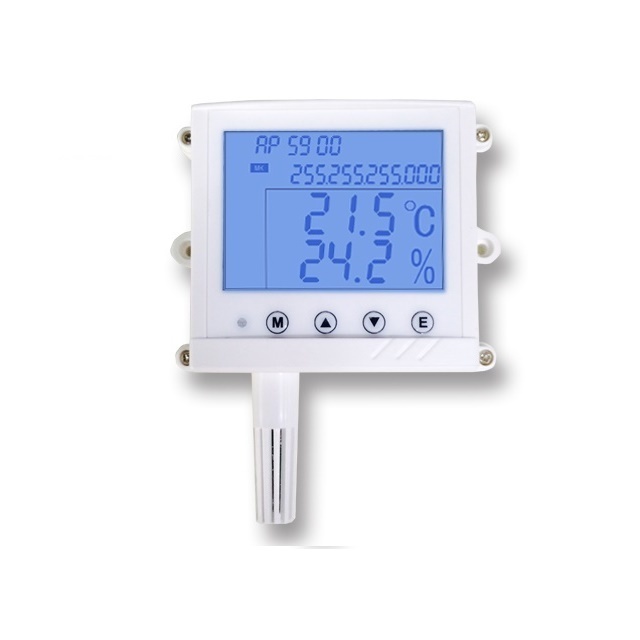

Modbus Tcp Digital Temperature And Humidity Sensor RJ45 Port
P roduct description
The Apem5900 series is a high-precision temperature and humidity sensor with Ethernet communication.The product has built-in high-precision temperature and humidity chip. If the temperature and humidity exceed the set threshold, the device will automatically send an alarm message and generate an audible and visual alarm on the spot.
F eatures
1. RJ45 network port communication, support TCP / UDP / SNMP protocol
2. Simple configuration, easy to use, set by button or software.
3. High precision temperature and humidity probe for high data accuracy
4. The equipment supports POE power supply and DC external power supply. The cost of laying the power line on site is greatly reduced.
5. Support remote configuration and query temperature and humidity data.
6. Alarm hysteresis can be set
Product parameters
|
T emperature |
M easurement accuracy: Measuring range: C alibration: |
±0.5C -20-85C Configuration tool software calibration |
|
H umidity |
measurement accuracy: Measuring range: calibration: |
±3% RH (non-condensing) 1%~99% RH (typical) Configuration tool software calibration |
|
A larm |
Alarm method: Alarm setting upper and lower limits: |
Audible alarm
Support setting |
|
Communication parameter |
Network Interface: Device MAC address: Transmission distance: Parameter configuration Set mode : Protocol: |
RJ45, 10M/100M adaptive Factory default (unique address is not adjustable) Unlimited
Configuration software / D evice itself TCP, UDP, SNMP, ARP, DHCP and other network protocols |
|
P ower supply |
Power supply: Dual power supply: operating hours: Working current: |
POE / D c12v 300ma Support 7*24*365 hours 300mA |
|
Sensor probe |
Types of: Built in / external: |
Temperature and humidity External |
|
E nvironment |
W orking environment:
Storage environment: |
Temperature -20~+70°C, humidity 0~99%RH, non-condensing Temperature -20~+70°C, humidity 0~99%RH, non-condensing |
|
Protection level |
Enclosure rating: Fire-proof level: Anti-electromagnetic interference: |
IP65 V-0
Support optical isolation |
|
M aterial |
S hell : panel: Screen display: weight: Installation Method: |
ABS (white) PCB single side LCD screen About 300 grams Wall surface: screw fixed metal surface: magnet adsorption |
|
S ize |
Shell size: LCD size: |
1 34 *1 16.5 *40mm 49 * 78 mm |
