Quick Details
-
Keyword:
-
flat pack container house
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZXH
-
Product name:
-

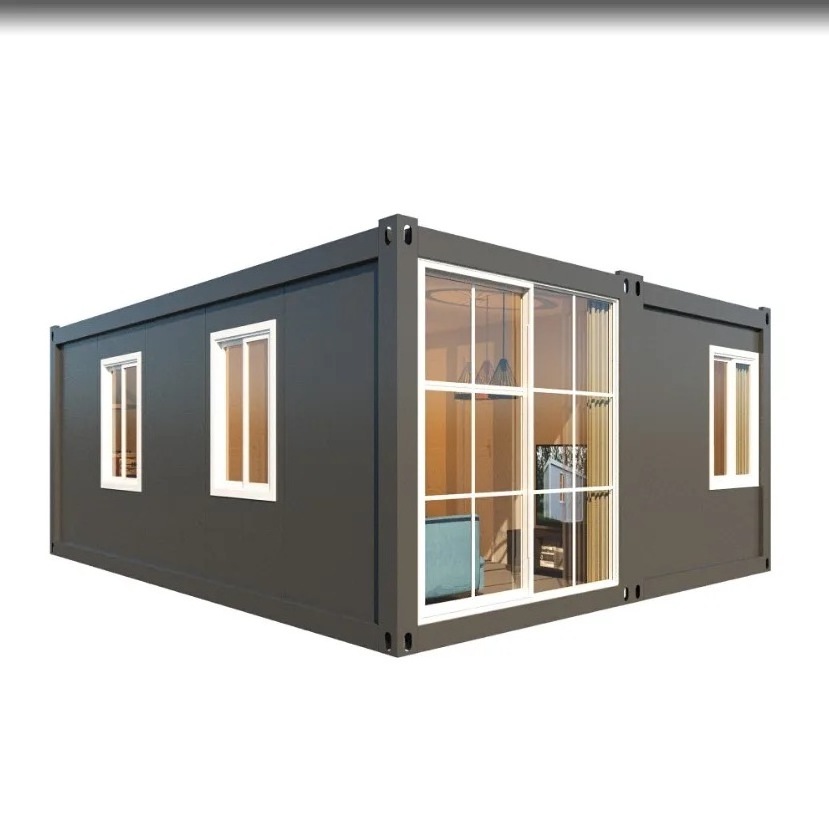

flat pack container house
-
Keyword:
-
flat pack container house
-
Color:
-
Customized Color
Product Description
Engineering Cases
|
Specification
|
Length(mm)
|
6055(5780)
|
|
|
||
|
|
Width(mm)
|
2435(2250)
|
|
|
||
|
|
Height(mm)
|
2896(2600)
|
|
|
||
|
|
Weight
|
Around 2000kg
|
|
|
||
|
|
Roof type
|
Flat roof, with internal drainage
|
|
|
||
|
|
Storey
|
≤3 storey
|
|
|
||
|
Design parameter
|
Life time of steel frame
|
20 years
|
|
|
||
|
|
Earth live load
|
2.0KN/m2
|
|
|
||
|
|
Roof live load
|
0.5KN/m2
|
|
|
||
|
|
Wind load
|
0.6KN/m2
|
|
|
||
|
|
Earthquake resistance
|
grade 8
|
|
|
||
|
Steel structure
|
Corner column
|
Galvanized cold rolled steel, t=3.0mm, material:Q235B
|
|
|
||
|
|
Roof beam
|
Galvanized cold rolled steel, t=3.0mm, material:Q235B
|
|
|
||
|
|
Roof secondary beam
|
C channel steel, t=1.6mm, material:Q235B
|
|
|
||
|
|
Earth beam
|
Galvanized cold rolled steel, t=3.0mm, material:Q235B
|
|
|
||
|
|
Earth secondary beam
|
C channel stee, t=2.0mm, material: Q235B
|
|
|
||
|
|
Paint
|
Graphene powder spraying(static electricity spray process)
|
|
|
||
|
Roof
|
Roof panel
|
0.5mm thickness galvanized steel sheet, color: white grey
|
|
|
||
|
|
Insulation
|
100mm fiberglass wool insulation with one side aluminum film,
desity≥14kg/m³, combustion performace: grade A non-combustible |
|
|
||
|
|
Ceiling
|
0.5mm thickness steel sheet, color white grey
|
|
|
||
|
Wall
|
Thickness
|
75mm fiberglass sandwich panel, outer panel is 0.5mm orange peel galvanized steel sheet, ivory white color, PE coating, inner
panel is 0.5mm galvanized flat steel sheet, white grey, PE coating. |
|
|
||
|
|
Insulation
|
75mm fiberglass insulation, density≥64kg/m³, combustion performace: grade A non-combustible
|
|
|
||
|
|
Low-e glass
|
6mm glass+12mm hollow glass+6mm glass, low-e glass, aluminum frame
|
|
|
||
|
|
Normal glass
|
6mm glass+12mm hollow glass+6mm glass, normal glass, plastic steel frame
|
|
|
||
|
Door
|
Specification(mm)
|
Single door, width x height=1660*2030
|
|
|
||
|
|
Material
|
Steel door
|
|
|
||
|
Electric system
|
Voltage
|
220V~250V
|
|
|
||
|
|
Electric wire
|
Indoor power line is 6 m2, lighting switching line is 1.5m2
|
|
|
||
|
|
Disconnector
|
Miniature circuit breaker
|
|
|
||
|
|
Lighting
|
Two unit single-tube daylight lamp, 36W
|
|
|
||
|
|
Socket
|
With socket
|
|
|
||
|
Water system
|
Water supply
|
PPR
|
|
|
||
|
|
Drainage
|
UPVC
|
|
|
||
Our services
We can provide customerswith special materials andcustom house design solutions within a specified timeframe to provide the mostadequate preparation foryour project to be carriedout.
We can design the house toany size you need and effi-ciently complete the servicechain from processing tohandling to delivery
Optional: air conditioner, bed, table, chair, toilet, bathroom
We can also provide other electrical appliances and furniture, or we provide the size, and customers can purchase by themselves.
Standard configuration: circuit, socket, light, door, window, lock
Each container house includes sockets, lights, doors and windows, locks and complete wiring. We can also provide different sockets according to different countries. You can also choose the style of doors and windows, please consult our staff for details.
low cost of rawmaterials and goods, lifting processing,storage, transportation and other logisticslinks to optimize the cost,the price is lower than themarket.
Please contact us for more options
If you have other needs, such as solar energy systems, electricity, pipelines, sewage treatment systems, etc., please feel free to contact us, we have professional designers and engineering teams, as well as professional procurement, to help customers solve various problems.
