Quick Details
-
application:
-
RF Encoder Modulator
-
Application:
-
Digital Television Front End System
-
input:
-
HDMI IP ASI Input
-
output:
-
IP ASI RF DVB-T DVB-C ATSC ISDBT DTMB
-
video encoder:
-
H264/MPEG-4
-
Support:
-
TS Re-multiplexing
-
Streaming Protocol:
-
UDP/RTP protocol (multicast)
-
Management:
-
web-NMS
-
Power:
-
100-240VAC
-
Size:
-
482mm*410mm*44mm
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
tuoying
-
Model Number:
-
EX1604A
-
application:
-
RF Encoder Modulator
-
Application:
-
Digital Television Front End System
-
input:
-
HDMI IP ASI Input
-
output:
-
IP ASI RF DVB-T DVB-C ATSC ISDBT DTMB
-
video encoder:
-
H264/MPEG-4
-
Support:
-
TS Re-multiplexing
-
Streaming Protocol:
-
UDP/RTP protocol (multicast)
-
Management:
-
web-NMS
-
Power:
-
100-240VAC
-
Size:
-
482mm*410mm*44mm
Product Description
EX1604A is the latest cost-effective HD encoder modulator.
It supports 16 HDMI inputs, 1 Gigabit IP input/output;4
(ATSC, ISDBT,DTMBT, DVB-C/-T) outputs, 4 MPTS or SPTS outputs. With high integration, good performance and low cost, the device integrates the complete front-end system functions and is popular in similar digital TV transmission systems in hotels, clubs, hospitals and so on.
Specification
Key Features
16 channels HDMI input（Support HDCP)
1 Gigabit IP input/output, MPTS output, UDP/RTP/RTSP protocol (multicast)
All standard modultion (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
Support 2* ASI input
Support 2* ASI output separatly
LCD disply and Bottons operation
Web network management
Support online softwel upgrading
Specifications
1 Gigabit IP input/output, MPTS output, UDP/RTP/RTSP protocol (multicast)
All standard modultion (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
Support 2* ASI input
Support 2* ASI output separatly
LCD disply and Bottons operation
Web network management
Support online softwel upgrading
Specifications
|
Input
|
HDMI(16HDMI)
|
|
|
|
|
2*ASI input
|
|
|
|
Output
|
RF output 4 frequencies（DVB-C/DVB-T/ATSC/ISDBT/DMBT）
|
|
|
|
|
2*ASI output
|
|
|
|
|
IP output, SPTS/ MPTS
|
|
|
|
Video Encoding
|
Encode Format
|
MPEG-4 AVC/H.264
|
|
|
|
Input port
|
HDMI
|
|
|
|
Input Resolution
|
1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i @50/59.94Hz |
|
|
|
Output Resolution
|
1920×1080_30P,1920×1080_30P,1280×720_30P,
720x576_25P,720x480_25P |
|
|
|
Code Rate
|
1Mbps~13Mbps（each channel)
|
|
|
|
Rate Mode
|
CBR、VBR
|
|
|
Video Encoding
|
Encode Format
|
MPEG1 Layer2
|
|
|
|
Sample Rate
|
48KHz
|
|
|
|
Bit Rate
|
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps, 384kbps
|
|
|

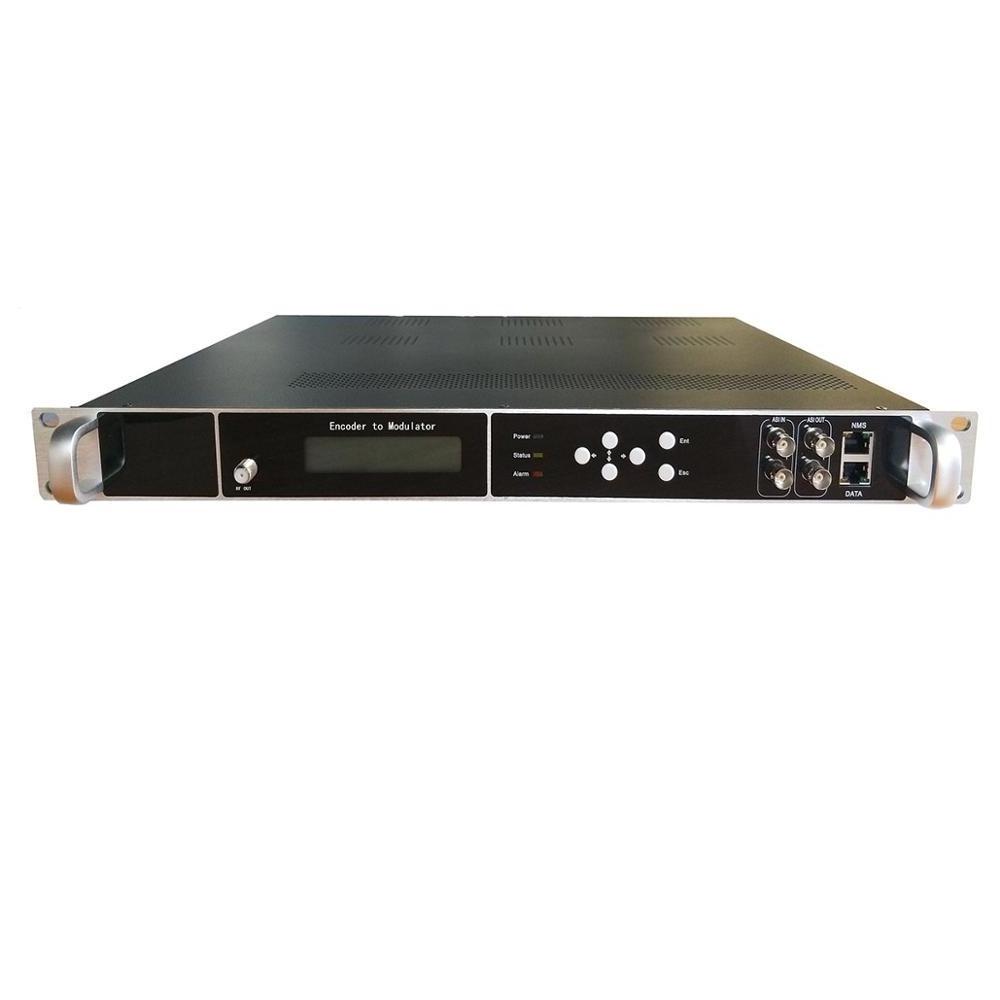

1.
|
RF Out
|
|
2.
|
LCD Display
|
|
3.
|
Indicator lights
|
|
4.
|
Bottons
|
|
5.
|
ASI In
|
|
6.
|
ASI OUT
|
|
7.
|
NMS、DATA Input/ output
|
|
1.
|
HDMI input
|
|
2.
|
Power switch
|
|
3.
|
Power socket
|
|
4.
|
Grounding
|
Other similar products
Packing&Delivery
|
Packaging Details
|
cartons
|
