Quick Details
-
Place of Origin:
-
China
-
Model Number:
-

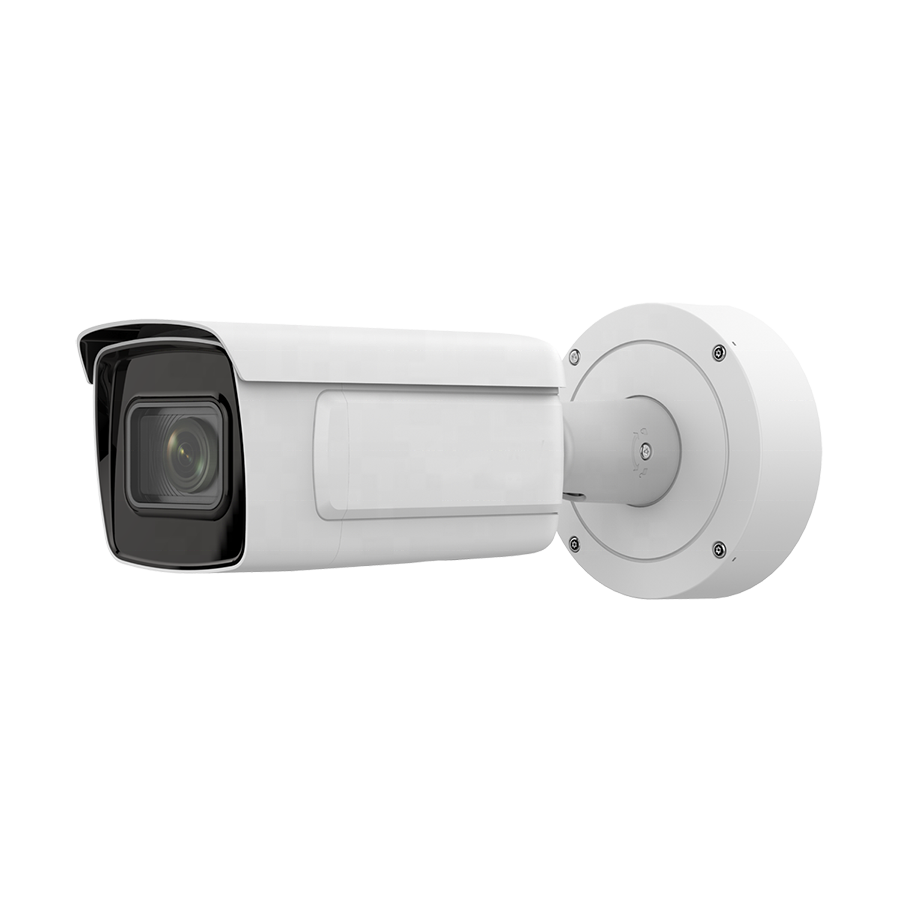

iDS-2CD7AC5G0-IZHSYR
-
Resolution:
-
4000 x 3000
-
Lens:
-
2.8 to 12 mm
-
Power Supply:
-
12V DC/PoE
-
Video Compression:
-
H.265+/H.265/H.264+/H.264
-
Audio:
-
I/O
-
Waterproof:
-
IP67
-
Light Range:
-
50m
-
Vandel proof:
-
IK10
Quick Details
-
Special Features:
-
Face detection, NIGHT VISION, Waterproof / Weatherproof, Built-in Siren, Face Recognition
-
Function:
-
Alarm I/O, NIGHT VISION, Waterproof / Weatherproof, Built-in Siren
-
Customized support:
-
Customized logo
-
Place of Origin:
-
China
-
Model Number:
-
iDS-2CD7AC5G0-IZHSYR
-
Resolution:
-
4000 x 3000
-
Lens:
-
2.8 to 12 mm
-
Power Supply:
-
12V DC/PoE
-
Video Compression:
-
H.265+/H.265/H.264+/H.264
-
Audio:
-
I/O
-
Waterproof:
-
IP67
-
Light Range:
-
50m
-
Vandel proof:
-
IK10
Product Description
Specification
|
Camera
|
|
|
|
Image Sensor
|
1/1.7" Progressive Scan CMOS
|
|
|
Max. Resolution
|
4000 × 3000
|
|
|
Min. Illumination
|
Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
|
|
|
Shutter Time
|
1 s to 1/100,000 s
|
|
|
Day ＆ Night
|
IR cut filter
|
|
|
Lens
|
|
|
|
Focus
|
Auto, semi-auto, manual
|
|
|
Focal Length ＆ FOV
|
2.8 to 12 mm, horizontal FOV: 96.2°to 36.4°, vertical FOV: 69.3°to 27.2°, diagonal
FOV: 129.4°to 45.5° 8 to 32 mm, horizontal FOV: 40.2°to 14.4°, vertical FOV: 29.6°to 10.8°, diagonal FOV: 51.47°to 17.8° |
|
|
Aperture
|
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73 |
|
|
Lens Mount
|
Integrated
|
|
|
Illuminator
|
|
|
|
Supplement Light Range
|
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m |
|
|
IR Wavelength
|
850 nm
|
|
|
Smart Supplement Light
|
Yes
|
|
|
Video
|
|
|
|
Main Stream
|
50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280
x 720) 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (4000 × 3000) 60 Hz: 20 fps (4000 × 3000) |
|
|
Sub-Stream
|
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480) |
|
|
Third Stream
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
|
|
Fourth Stream
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
|
|
Fifth Stream
|
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480) |
|
|
Custom Stream
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
|
|
Video Compression
|
Mainstream: H.265+/H.265/H.264+/H.264
Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG |
|
|
Video Bit Rate
|
32 Kbps to 16 Mbps
|
|
|
H.264 Type
|
Baseline Profile/Main Profile/High Profile
|
|
|
H.265 Type
|
Main Profile
|
|
|
Bit Rate Control
|
CBR/VBR
|
|
|
Scalable Video Coding (SVC)
|
H.264 and H.265 encoding
|
|
|
Region of Interest (ROI)
|
4 fixed regions for each stream
|
|
|
Target Cropping
|
Yes
|
|
|
Audio
|
|
|
|
Environment Noise Filtering
|
Yes
|
|
|
Audio Sampling Rate
|
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
|
|
|
Audio Compression
|
G.711/G.722.1/G.726/MP2L2/PCM/MP3
|
|
|
Audio Bit Rate
|
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps
(PCM)/8 to 320 Kbps (MP3) |
|
|
Audio Type
|
Mono sound
|
|
|
Network
|
|
|
|
Simultaneous Live View
|
Up to 20 channels
|
|
|
API
|
ONVIF (PROFILES, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
|
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|
|
Smooth Streaming
|
Yes
|
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator, operator and user
|
|
|
Security
|
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
|
|
Network Storage
|
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
|
Client
|
iVMS-4200, Hik-Connect, Hik-Central
|
|
|
Web Browser
|
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
|
|
|
|
|
|
Wide Dynamic Range (WDR)
|
Digital WDR
|
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule, Alarm Trigger
|
|
|
Picture Overlay
|
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
|
|
|
Image Enhancement
|
BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
|
|
|
Image Parameters Switch
|
Yes
|
|
|
Image Settings
|
Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client
software or web browser |
|
|
SNR
|
≥52 dB
|
|
|
Interface
|
|
|
|
Alarm
|
2 input, 2 outputs (max. 24 VDC, 1 A)
|
|
|
Audio
|
-IZHY:
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ,interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω,interface type: non-equilibrium, mono sound |
|
|
RS-485
|
With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
|
|
|
Video Output
|
1 Vp-p Composite Output (75Ω/CVBS) (For debugging only)
|
|
|
On-Board Storage
|
Built-in memory cardslot, support microSD/microSDHC/microSDXC card, up to 256 GB
|
|
|
Reset Key
|
Yes
|
|
|
Ethernet Interface
|
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
|
|
|
Power Output
|
With -Y: 12 VDC, max. 100 mA (supported by all power supply types)
|
|
|
Event
|
|
|
|
Basic Event
|
Motion detection, video tampering alarm, vibration detection, exception (network
disconnected, IP address conflict, illegal login, HDD full, HDD error) |
|
|
Linkage
|
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email |
|
|
Smart Event
|
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection |
|
|
Deep Learning Function
|
|
|
|
Multi-target-type Detection
|
Supports simultaneous detection of human body and face
Gets 8 face features and 13 human body features |
|
|
Face Capture
|
Detects up to 30 faces simultaneously;
Supports swing left and right from -60°to 60°, tilt up and down from -30°to 30°; Up to 3 face libraries with up to 30000 faces each are configurable; Recognizes face identity via face modeling, grading and comparing to those in face library; Supports face library encryption. |
|
|
People Counting
|
Yes
|
|
|
Queue Management
|
Detects queuing-up people number, and waiting time of each person
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis |
|
|
Perimeter Protection
|
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc. |
|
|
General
|
|
|
|
Power
|
12 VDC ± 20%, 1.33 A, max. 16.0 W, three-core terminal block, reverse polarity
protection, PoE: IEEE 802.3at, 42.5 V to 57 V, 0.43 A to 0.31 A ， max. 18.0 W |
|
|
Language
|
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
|
Heater
|
Yes
|
|
|
General Function
|
Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy
masks, flash log, password reset viae-mail, pixel counter |
|
|
Storage Conditions
|
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
Startup and Operating
Conditions |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
Material
|
Aluminum alloy body
|
|
|
Dimension
|
Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 mm × 351 mm (Ø5.5″ × 13.8″) |
|
|
Package Dimension
|
405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″)
|
|
|
Weight
|
Approx. 1920 g (4.2 lb.)
|
|
|
With Package Weight
|
Approx. 3060 g (6.7 lb.)
|
|
|
Approval
|
|
|
|
EMC
|
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
|
|
Safety
|
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-
1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
|
|
Environment
|
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
|
|
Protection
|
IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
|
|
|
Automotive and Railway
|
With -R: EN50121-4
|
|
|
Anti-Corrosion Protection
|
With -Y: NEMA 4X (NEMA 250-2018)
|
|
|
Other
|
With -Y: PVC FREE
|
|
Feature
* High quality imaging with 12 MP resolution
* Clear imaging against strong back light due to DWDR technology
* Efficient H.265+ compression technology to save bandwidth and storage
* Advanced streaming technology that enables smooth live view and data self-correcting in poor network
* 5 streams and up to 5 custom streams to meet a wide variety of applications
* Water and dust resistant (IP67) and vandal proof (IK10)
* Clear imaging against strong back light due to DWDR technology
* Efficient H.265+ compression technology to save bandwidth and storage
* Advanced streaming technology that enables smooth live view and data self-correcting in poor network
* 5 streams and up to 5 custom streams to meet a wide variety of applications
* Water and dust resistant (IP67) and vandal proof (IK10)
Function
Face Counting
With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and samples
the face features simultaneously, and compares them with the built-in face library, so to remove the duplicated person. It
counts persons and reports a face alarm simultaneously to achieve both the entrance control and people counting.
Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether
the person is wearing a hard hat, and captures the head of the person and reports an alarm if not.
Multi-Target-Type Detection
With the embedded deep learning algorithms, the camera detects and captures the face and human body in the specified
region. It supports a structurized modeling of the face and human body to achieve a structurized data collection.
Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each
person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection.
Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party
application development.
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor
network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are
automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera
transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because
of the packet loss and error rate.
Anti-Corrosion Coating(-Y)
The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat
(Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion
performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anti
corrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.
With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and samples
the face features simultaneously, and compares them with the built-in face library, so to remove the duplicated person. It
counts persons and reports a face alarm simultaneously to achieve both the entrance control and people counting.
Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether
the person is wearing a hard hat, and captures the head of the person and reports an alarm if not.
Multi-Target-Type Detection
With the embedded deep learning algorithms, the camera detects and captures the face and human body in the specified
region. It supports a structurized modeling of the face and human body to achieve a structurized data collection.
Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each
person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection.
Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party
application development.
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor
network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are
automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera
transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because
of the packet loss and error rate.
Anti-Corrosion Coating(-Y)
The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat
(Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion
performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anti
corrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.
Our Advantages
Shipping & Payment
FAQ
Hot Searches
