Quick Details
-
Range of Spindle Speed(r.p.m):
-
100 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
1100W
-
Place of Origin:
-
China
-
Brand Name:
-
Thorpmct
-
Model Number:
-
MX210V
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1230*470*510MM
-
Weight (KG):
-
100 KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Max. Length of Workpiece (mm):
-
75
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
100 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
1100W
-
Place of Origin:
-
China
-
Brand Name:
-
Thorpmct
-
Model Number:
-
MX210V
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1230*470*510MM
-
Weight (KG):
-
100 KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
Product Description

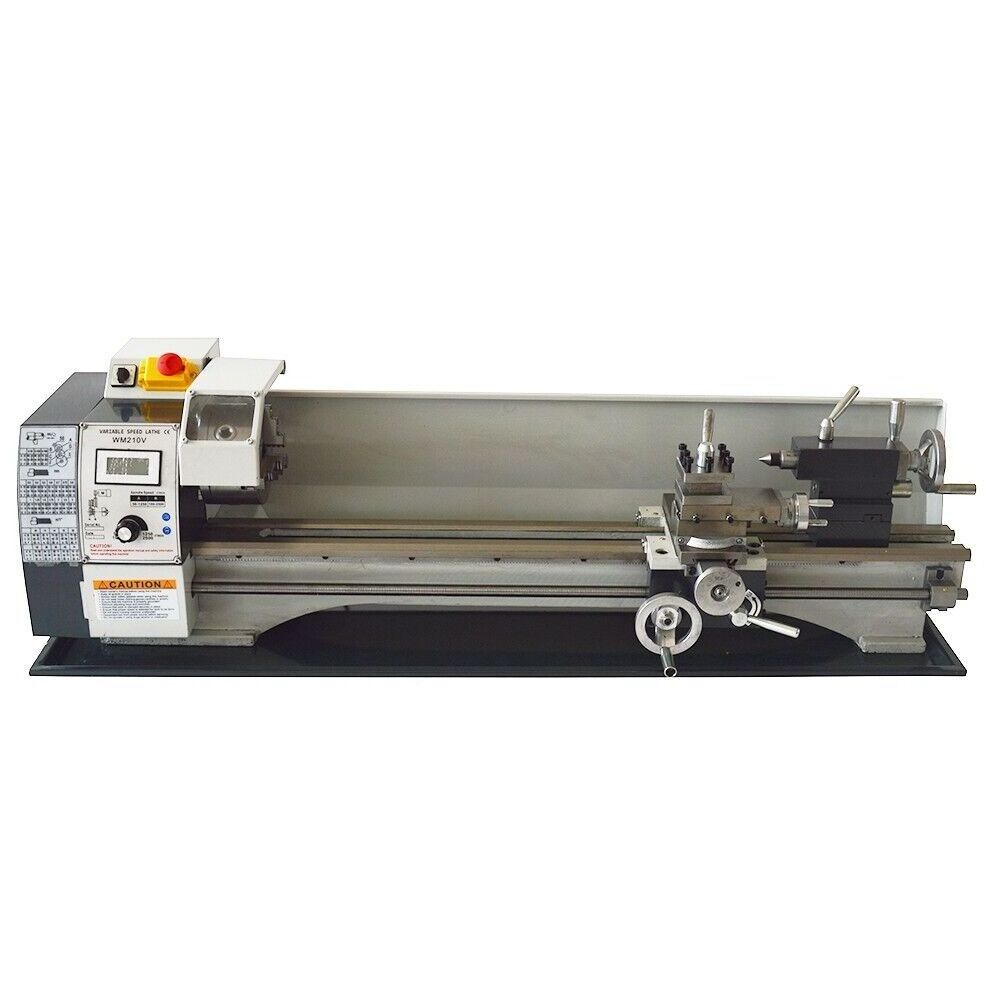

210V mini metal lathe machine
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example, turning,inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds ofcommonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonlyused metric thread.
Product Parameters:
Product Parameters:
|
Motor:
|
110V brushless motor
|
|
Voltage:
|
AC110V 50/60Hz
|
|
Power:
|
1100W
|
|
Length of center:
|
31.5"(750mm)
|
|
Swing Over Bed:
|
8.3"(210mm)
|
|
Rotary diameter of tool rest:
|
5.51"(140mm)
|
|
Spindle bore:
|
1.50"(38mm)
|
|
Diameter of chuck:
|
4.92"(125mm)
|
|
Width of lathe bed:
|
3.94"(100mm)
|
|
Number of Spindle Speeds:
|
Infinitely variable speeds
|
|
Spindle taper:
|
MT5
|
|
Knife rest labour:
|
Horizontal four-station
|
|
Spindle rotation speed:
|
50-2500rpm
|
|
Range of Inch Threads(optional accessory ):
|
10-44T.P.I
|
|
Precision of the spindle:
|
0.01mm
|
|
Automatic feed range:
|
0.1mm-0.2mm
|
|
Maximum stroke of tool rest plate:
|
2.16"(55mm)
|
|
Maximum stroke of middle plate:
|
2.95"(75mm)
|
|
Maximum stroke of bottom plate:
|
26.8"(680mm)
|
|
Maximum stroke of tailstock sleeve:
|
2.36"(60mm)
|
|
Tail frame taper:
|
MT2
|
|
Package size:
|
48.4"*18.5"*20.1"(123cm*47cm*51cm)
|
|
Net weight/Gross weight:
|
155.4LB(70.5kg)/205.0LB(93kg)
|
