Quick Details
-
Brand Name:
-
tuofa
-
Model Number:
-
tuofaxxxj001
-
Structure:
-
Swivel Clamp
-
Usage:
-
Heavy Duty
-
color:
-
silver
-
material:
-
malleable iron
-
character:
-
adjustable type
-
model:
-
nut-2
-
weight:
-
3.20kg
-
steel wire diameter:
-
9.0-11.0mm
-
rated failure:
-
88kn
-
Surface treatment:
-
Hot Dip Galvanized
Quick Details
-
Measurement system:
-
Metric
-
Material:
-
Metal
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
tuofa
-
Model Number:
-
tuofaxxxj001
-
Structure:
-
Swivel Clamp
-
Usage:
-
Heavy Duty
-
color:
-
silver
-
material:
-
malleable iron
-
character:
-
adjustable type
-
model:
-
nut-2
-
weight:
-
3.20kg
-
steel wire diameter:
-
9.0-11.0mm
-
rated failure:
-
88kn
-
Surface treatment:
-
Hot Dip Galvanized

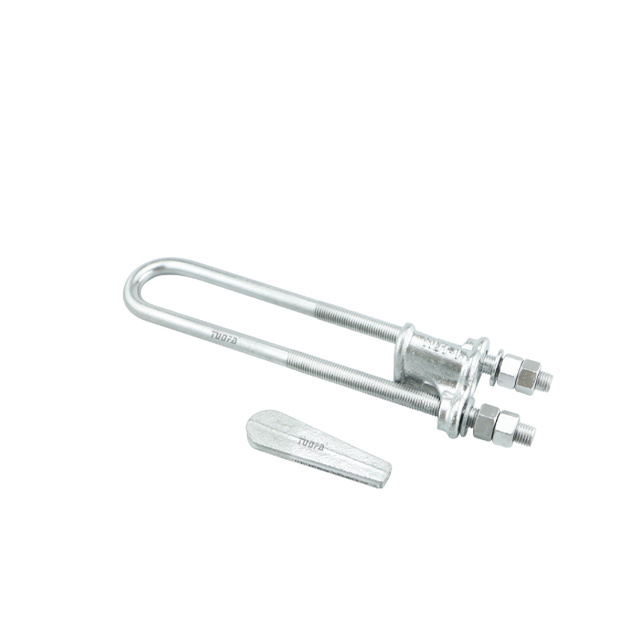

UT wedge clamps adjustable type /electric fitting
………………………………………………………………………………………………………………………………
1. The body and wedge are malleable iron.The cotter pin is stainless steel.the other parts are steel.All ferrous parts
are Hot dip galvanized .
………………………………………………………………………………………………………………………………
2.the model and drawing for ut clamp!
|
Model |
Steel wire Diameter/mm |
Dimession/MM |
Rated failure load/Kn |
Weight/kg |
|||
|
C |
M |
L |
L1 |
||||
|
NUT-1 |
6.6-7.8 |
56 |
16 |
350 |
200 |
45 |
2.10 |
|
NUT-2 |
9.0-11.0 |
62 |
18 |
430 |
250 |
88 |
3.20 |
|
NUT-3 |
13.0-14.0 |
74 |
22 |
500 |
300 |
143 |
5.40 |
|
NUT-4 |
15.0-16.0 |
82 |
24 |
580 |
300 |
164 |
7.20 |
