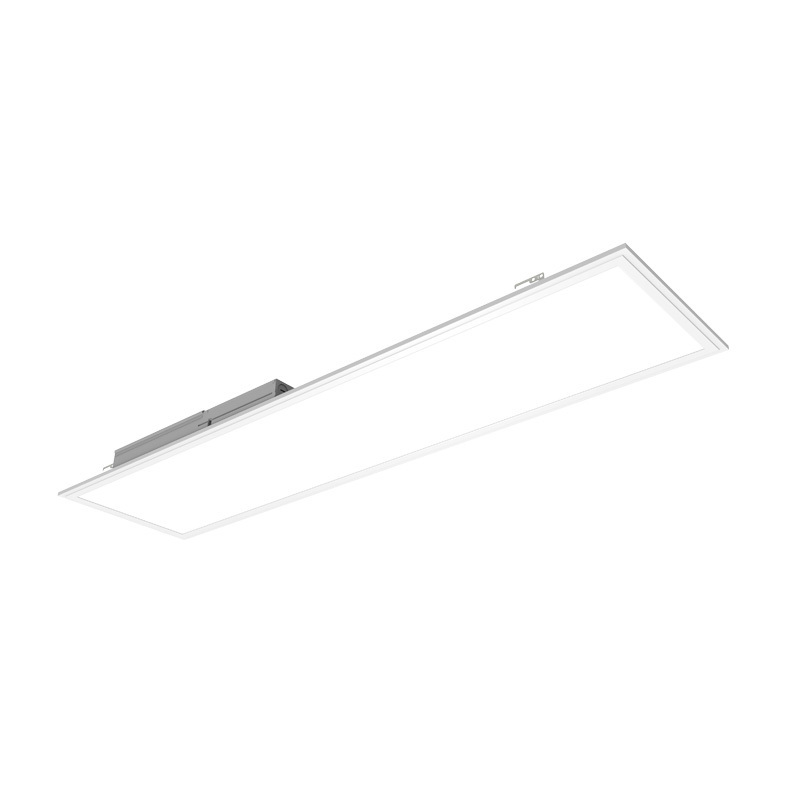

No Flicker Dimmable 60x60 120x30 120x60 light ceiling square ultra slim led panel light

No Flicker Dimmable 60x60 120x30 120x60 light ceiling square ultra slim led panel light

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10.78

≥400 Pieces

US $10.48

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Shade Shape:: Square

Place of Origin:: Guangdong, China

Brand Name:: ALITE

Model Number:: LP-1203-30W-DNA

Color Temperature(CCT):: 3000~5000K

Input Voltage(V):: 100-277VAC

Lamp Luminous Efficiency(lm/w):: 110/130

Lamp Luminous Flux(lm):: 4500-8750

Working Temperature(℃):: -25 - 40

PCs/ Ctn:: 4

Packing Dimension:: 64.2x20.8x65

Product Dimension:: 60.3x60.3x2.8

Product Weight（kg）:: 2.3

Product name:: led panel light 60x60

Power:: 30W 36W 50W 70W

Keyword:: 2x4 led panel

Size:: 2X4ft 2x2ft 1X4ft

Power Factor:: 0.9

Frequency:: 50/60Hz

Function avaliable:: Emergency/Sensor/dali/1-10v dim

Beam angle:: 120°

Installation Way:: Embedded/Suspended/Surface Mount

Quick Details

Lamp Body Material:: Aluminum

Design Style:: Modern

Shade material:: Plastic

Shade Shape:: Square

Place of Origin:: Guangdong, China

Brand Name:: ALITE

Model Number:: LP-1203-30W-DNA

Color Temperature(CCT):: 3000~5000K

Input Voltage(V):: 100-277VAC

Lamp Luminous Efficiency(lm/w):: 110/130

Lamp Luminous Flux(lm):: 4500-8750

Working Temperature(℃):: -25 - 40

PCs/ Ctn:: 4

Packing Dimension:: 64.2x20.8x65

Product Dimension:: 60.3x60.3x2.8

Product Weight（kg）:: 2.3

Product name:: led panel light 60x60

Power:: 30W 36W 50W 70W

Keyword:: 2x4 led panel

Size:: 2X4ft 2x2ft 1X4ft

Power Factor:: 0.9

Frequency:: 50/60Hz

Function avaliable:: Emergency/Sensor/dali/1-10v dim

Beam angle:: 120°

Installation Way:: Embedded/Suspended/Surface Mount

No Flicker Dimmable 60x60 120x30 120x60 light ceiling square ultra slim led panel light

Products Description

Details Images

Product Features of led ceiling light panel :

① Small package: Save shipment cost;
② Wireless remote control: Cut down installation and maintenance cost;
③ Full range of function: 0-10V Dimmable, Emergency, Non-dimmable, or flexible combination function.
④ High quality driver and LM80 test LED,to make the 5 years warranty.
⑤ Approved by ETL SAA FCC,CE,ROHS,etc.

If you would like to know more details please contact Nicole- nicole@aliteled.com.

Specification

Product Name	led ceiling light panel
Material	Aluminum body+PMMA lens
Power	2x2FT: 20W/25W/30W/36W/40W or tunable optional 2x4FT: 25W/30W/40W/45W/50W or tunable optional 1x4FT: 20W/25W/30W/36W/40W or tunable optional
Voltage	100-277VAC, 100-347VAC
Lumen Efficiency	110LM/W, 130LM/W
Color Temperature	3500K/4000K/5000K or tunable
CRI	82
Lifespan & Warranty	50000 hours5 years, 10 years optional
UGR	<19 is allowed to customize

Model No.	L(mm)	W(mm)	H(mm)
LP-0303	295	295	30
LP-0306	295	595	30
LP-0606	595	595	30
LP-1203	1195	295	30
LP-1206	1195	595	30

Function shows

Common Functions Optional of

led ceiling light panel :

1. Wattage and CCT adjustable;

2. 0-10V Dimmable, Motion sensor;

3. Equipped with a dip switch for stepwise adjustment of power and color temperature;

4. Emergency module when needed, external emergency battery back up for option.

Emergency backup kit of led ceiling light panel :

1. Full 10w backup power over 90minutes dischage time.
2. Lithium iron phosphate(LiFePO4) battery, high safety performance.
3. Height <24mm, suitable for application with compact room as well.
4. Remote control test, no need for test switch wiring, easy operation save wiring cost and mantain cost. Refer to Figure 1
5. Connect to AC input end directly, easy wiring.
6. Good compatibility, work with all 0-10V dim LED products(<70w).

Smart APP Control of led ceiling light panel :

Use the world's leading smart wireless control system -TUYA smart, via Bluetooth Mesh/Ziabee communication to manage light by APP(Android and IOS), smart control for dimming, CCT adjusting, timing, ON & OFF etc.

Installation Instructions

Package

Application

Indoor lighting Residential lighting, Home lighting Commercial lighting, Hotel, Shops etc.Public lighting, Hospitals etc.
Warning and caution:
Don't use in completely enclosed fixtureand damp area.
