Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CJ
-
Model Number:
-
Solar Connectors PV Connector
Quick Details
-
Type:
-
MCX
-
Application:
-
Power
-
Gender:
-
Female
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CJ
-
Model Number:
-
Solar Connectors PV Connector

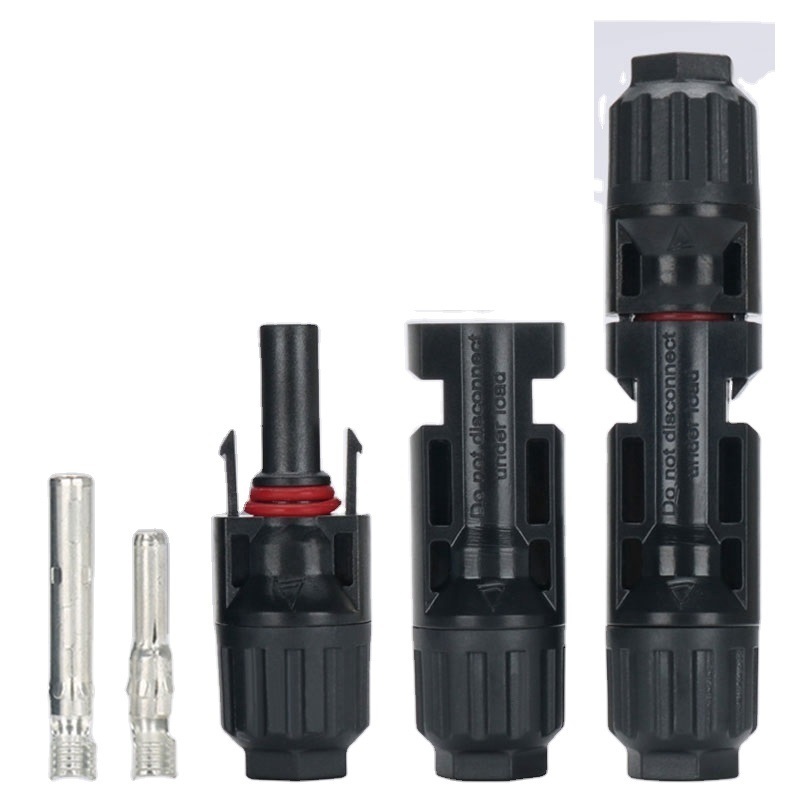

Name:High quality Ip67 Waterproof Power Connector Solar For Solar Pv System
| Rate voltage | 1000V-1500V |
| Rated current | 30A(4mm2,6mm2) |
| Test voltage | 6KV(50Hz) |
| Protect degree | IP67/IP68 |
| Insulation material | PPO |
| Contact material | Copper sliver plated |
| Operating temperature | -40°C~+90°C |
| Contact resistance of plug connectors | ≤5mΩ |
| Suitable cable | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
| Safe class | 2 |
| Flame class | UL94-V0 |
| Insertion force | ≤50N |
| Withdraw force | ≥50N |
