Suspending ceiling framing machine stud and track machine to make gypsum framing metal stud and track roll forming machine

Suspending ceiling framing machine stud and track machine to make gypsum framing metal stud and track roll forming machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥3 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Raw material:: Gi Steel

Usage:: Decorative Gypsum Board

Quick Details

Weight (KG):: 5000

Place of Origin:: Hebei, China

Brand Name:: ZHONGTUO

Raw material:: Gi Steel

Usage:: Decorative Gypsum Board

Product Overview

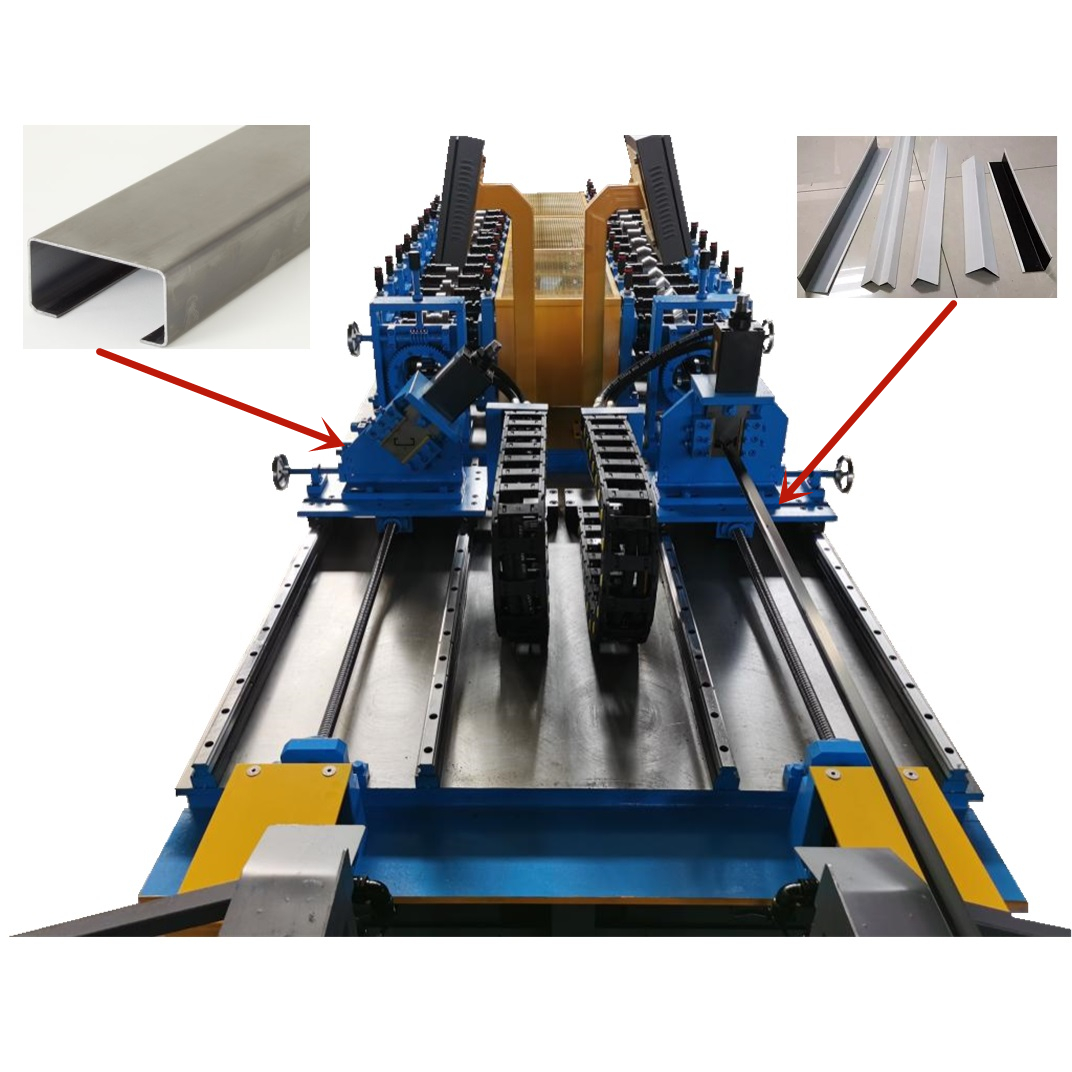

Double C profile U profile Angle stud track forming machine

Drywall system CD UD CW UW C profile U profile Angle stud track forming machine gypsum board profile is to produce the light steel keel which is a new type of building material. With the development of my country's modernization construction, light steel keel is widely used in hotels, terminals, train stations, stations, playgrounds, shopping malls, factories, office buildings, old buildings Renovation, interior decoration, ceiling and other places.
Light steel (painted) keel ceiling has the advantages of light weight, high strength, suitable for waterproof, shockproof,dust proof, sound insulation, sound absorption, constant temperature, etc. It also has the advantages of short construction period and easy construction.

PRODUCT SPECIFICATIONS

1.Formed Material	PPGI,GI,AI		Thickness:0.5-1.2mm
2.Decoiler	Hydraulic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		12 rows(As your requirement)
		Diameter of shaft		50mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		Metal steel welded
		Drive		gear transmission
		Dimension(LWH)		55008001200(customize)
		Weight		About 4.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	60-70m/min		The speed depends on your request, we have 25m/min, 45m/min and 70m/min for you choose
