Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
COMFAST
-
Place of Origin:
-
Guangdong, China
-
Model:
-
CF-E4
-
Chipset:
-
QCA9531+QCA9887, CJ907-C3
-
Flash/RAM:
-
128MB/16MB
-
Transition Rate:
-
2.4GHz & 5.8GHz
-
Antenna:
-
2*5dBi Dual Band omnidirectional Antennas; 2*5dBi 4GHz Antennas
-
Power:
-
DC 12V 1.5A
-
Power Consumption:
-
18W
-
IP Index:
-
IP31
-
Physical Port:
-
1*10/100Mbps WAN RJ45; 2*10/100Mbps LAN RJ45
-
Speed:
-
750Mbps
Quick Details
-
Max. LAN Data Rate:
-
750Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
COMFAST
-
Place of Origin:
-
Guangdong, China
-
Model:
-
CF-E4
-
Chipset:
-
QCA9531+QCA9887, CJ907-C3
-
Flash/RAM:
-
128MB/16MB
-
Transition Rate:
-
2.4GHz & 5.8GHz
-
Antenna:
-
2*5dBi Dual Band omnidirectional Antennas; 2*5dBi 4GHz Antennas
-
Power:
-
DC 12V 1.5A
-
Power Consumption:
-
18W
-
IP Index:
-
IP31
-
Physical Port:
-
1*10/100Mbps WAN RJ45; 2*10/100Mbps LAN RJ45
-
Speed:
-
750Mbps

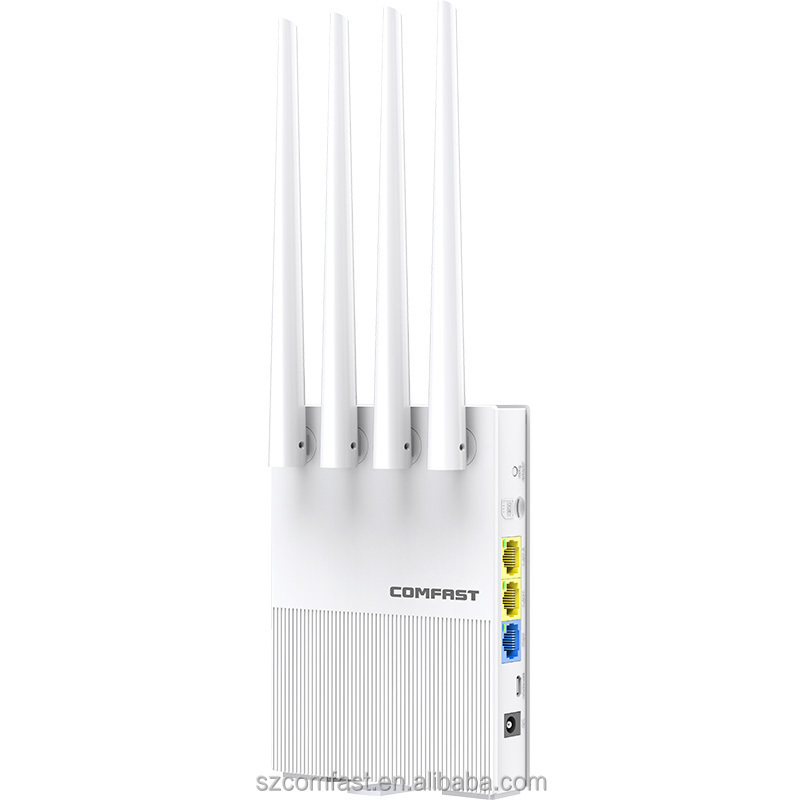

COMFAST Outdoor Wireless Router CF-E4 750Mbps 4G WiFi Router with SIM Card Slot
| Model | CF-E4 |
|
Hardware Specification
|
Chip: QCA9531+QCA9887; 4G
:
CJ907-C3
DDR: 128MB,
Flash: 16MB
|
|
Module Information
|
LTE FDD: Band 1,3,5,8; LTE TDD: Band 38,39,40,41
LTE FDD Rel.9
:
150Mbps DL/50Mbps UL(Cat 4) ;
LTE TDD Rel.9
:
130Mbps DL/35MbpsUL(Cat 4)
|
|
Antenna
|
2*5dBi Dual Band omnidirectional Antennas;
2*5dBi 4GHz Antennas
|
|
Wireless Standard
|
IEEE802.11 a/b/g/n/ac
|
| RF Parameters |
Output Power(Max):
82mW
(
≈19dBm
)
Receiver Sensitivity(Min): -96dBm
Frequency: 802.11b/g/n: 2.412GHz-2.472GHz
802.11ac/a/n:5.180GHz-5.825GHz
|
| Physical Ports |
1*10/100Mbps WAN RJ45
2*10/100Mbps LAN RJ45
1*RESET/WPS Button
1*DC Power Supply Port
1*Micro USB Port
1*nano SIM Card Slot
|
| Power | DC12V/1.5A |
| Power Consumption | <=18W |
| MTBF | >250000H |
| IP Index | IP31 |
| Physical Size |
149
(L)
*110
(W)
*26
(H)
mm; Antenna:190mm
|
Our Services
- Reply your inquiry in 24 working hours;
- Customized design is available, OEM and ODM are warm welcomed;
- Delivery the goods to our partners all over the world with high speed and great precision;
- Offer customers the most competitive price with good quality wireless networking equipment.
