Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BENLEE
-
Model Number:
-
BM25-GD11-820-212-N-20A
-
IP level:
-
IP67
-
Product Name:
-

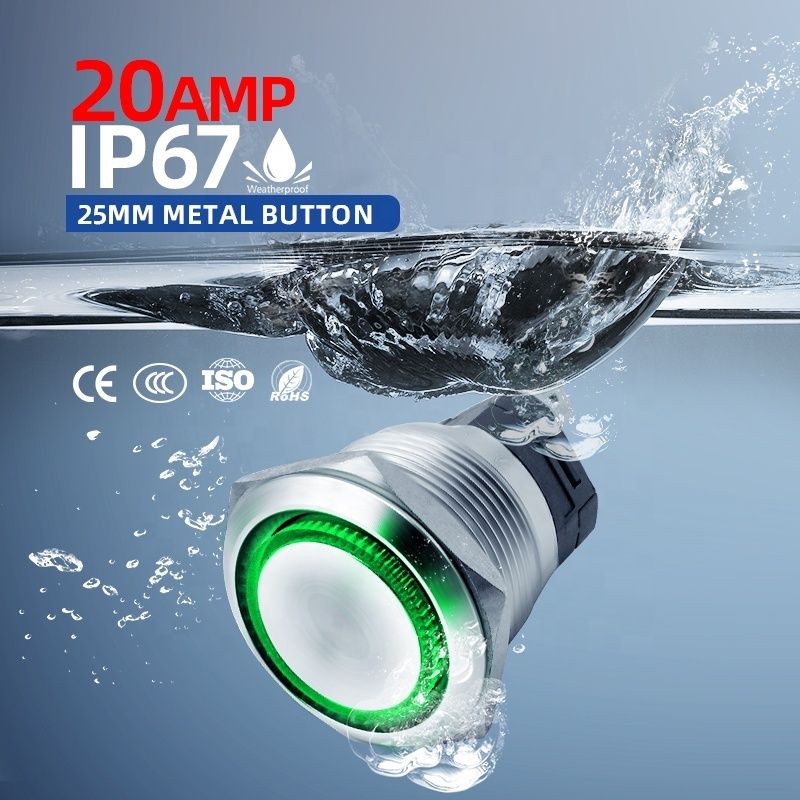

Metal push button switch with led
-
Mounting Hole Size:
-
25mm Diameter
-
Shell Material:
-
Stainless Steel
-
mechanical life:
-
100000 times
-
Insulation resistance:
-
≥100mΩ(DC 500V)
-
LED color:
-
Multiple colors available
-
Application:
-
Industrial Equipment/electrical equipment
-
Contacts:
-
1NO/2NO
-
Certification:
-
CCC.CE.ROHS.ISO9001
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
20A
-
Max. Voltage:
-
AC 500V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BENLEE
-
Model Number:
-
BM25-GD11-820-212-N-20A
-
IP level:
-
IP67
-
Product Name:
-
Metal push button switch with led
-
Mounting Hole Size:
-
25mm Diameter
-
Shell Material:
-
Stainless Steel
-
mechanical life:
-
100000 times
-
Insulation resistance:
-
≥100mΩ(DC 500V)
-
LED color:
-
Multiple colors available
-
Application:
-
Industrial Equipment/electrical equipment
-
Contacts:
-
1NO/2NO
-
Certification:
-
CCC.CE.ROHS.ISO9001
Product Paramenters
|
Operating temperature
|
-25℃-+55℃ (no icing and condensation, the air is naturally flame retardant)
|
|
Working humidity
|
45-85%RH
|
|
Contact resistance
|
≤50mΩ（ Initial value）
|
|
Insulation resistance
|
≥100mΩ（DC 500V ）
|
|
Brand Name
|
BENLEE
|
|
Vibration resistance
|
50Hz, amplitude 1.2mm
|
|
Impact resistance
|
＞10G
|
|
Head protection level
|
IP67
|
|
Electrical life
|
100,000 times
|
