Quick Details
-
Power Source:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESUN
-
Model Number:
-
ksd308
-
Voltage:
-
250V
-
Current:
-
20-70A
-
Life Time:
-
100000 Cycle Life Times
-
Switch Type:
-
normal close/normal open
-
Temperature range:
-
-30-160C
-
Product name:
-
bimetal thermostat
-
Terminal's size:
-
6.3X0.8/ 4.8*0.8
-
MOQ:
-
500pcs
-
Name:
-
ksd302 thermostat
-
Keywords:
-
bimetal thermostat
Quick Details
-
After-sales Service Provided:
-
Free spare parts, Onsite Installation, Return and Replacement, Field maintenance and repair service, Overseas Call Centers
-
Warranty:
-
3 years
-
Application:
-
Car, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESUN
-
Model Number:
-
ksd308
-
Voltage:
-
250V
-
Current:
-
20-70A
-
Life Time:
-
100000 Cycle Life Times
-
Switch Type:
-
normal close/normal open
-
Temperature range:
-
-30-160C
-
Product name:
-
bimetal thermostat
-
Terminal's size:
-
6.3X0.8/ 4.8*0.8
-
MOQ:
-
500pcs
-
Name:
-
ksd302 thermostat
-
Keywords:
-
bimetal thermostat

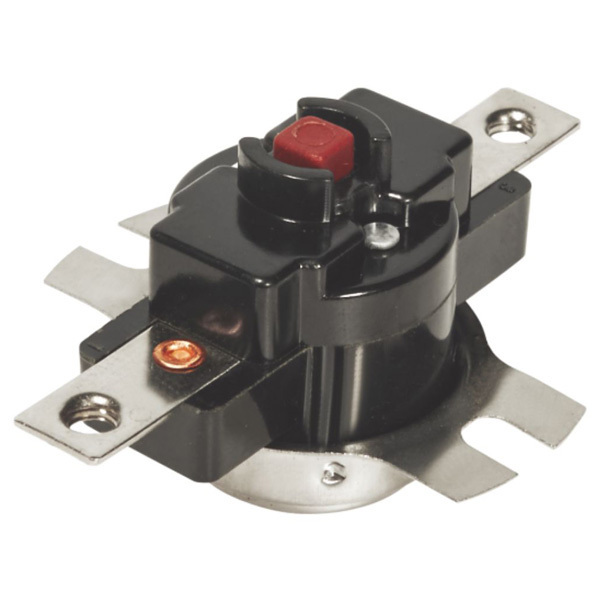

Snap-on Disc Temperature Switch, Bimetallic Thermostat 250V 25A
Specification
The KSD302/KSD308 series of 3/4 ’’ Bimetal temperature controls base on proven reliability in a compact,versatile,cost-effective design.The snap action of the bimetal disc provides high-speed contact separations resulting in excellent life cycle characteristics at electrical loads up to AC110V-400V/15A-70A
A variety of terminal and mounting configurations are available for maximum design flexibility.the quality,reliability,affordability,versatility and word-wide agency approvals of the KSD302/KSD308 series make it the thermostat of choice for a wide variety to temperature control applications.
Contact type
The KSD302/KSD308 disc thermostat is available in single throw(SPST) switch actions:
Automatic Reset -Can be built to either open or close its contacts on temperature rise.
Manual Reset -Available with contacts that open on temperature rise.the contacts can be reset by depressing the button after the control has cooled down.
Action Temperature Range
Bakelite Body: 20 ℃ ---160 ℃
Products List
Factory Workshop
Certification:
Supervalu service:
1. We have rich experience of OEM&ODM, factory can manufacture according to your request.
2. custom-made label is accept.
3.
samples for testing is accept.
FAQs
1. Why I choose you?
A: 13 year's manufacture experience and automation production line,all quality certification passed
2. What are your main products?
A:Bimetal thermostat(KSD301/KSD302/KSD306/KSD308)
B:Thermal protector(BW9700/KSD9700/17AM/ST-22/S01/S06 ect)
C:Temperature senor and fuse
3. Warranty:
A: 3 years
4. How do you ensure good product quality?(quality control)
A: All products are thoroughly tested in-house with our vast array of calibration and special testing equipment (like Fluke PPC4 (Pneumatic Pressure controller/Calibrators)). Our testing process is conducted in accordance with a strict quality control system.
6. How fast can you deliver goods (Delivery time)?
A: samples delivery time 2-5 days.Mass order 7-10days. Big amount (Over 20K) 10-15days.
7.What's your MOQ?
A: 100PCS for mass order
8. What express ways can you offer, can we use our own courier?
A: DHL,FedEx;UPS;TNT.Customer account is accept.
