Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517
Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517
Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517
Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517
Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517
Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517
Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517
Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517

Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517

FOB Reference Price: Get Latest Price
≥1 Pieces
US $15.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
XRT or OEM
Model Number:
SNL517
Type:
Housing units
size:
10 - 500 mm
Certificate:
ISO9001:2000
Lubrication:
Oil Grease
Hardness of Bearing:
HRC59-62
Bearing Structure:
Spherical
Clearance:
C0 , C2 , C3 , C1 , C4
Stock:
Bulk

Quick Details

Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Other
Material:
Cast Iron
Place of Origin:
Shandong, China
Brand Name:
XRT or OEM
Model Number:
SNL517
Type:
Housing units
size:
10 - 500 mm
Certificate:
ISO9001:2000
Lubrication:
Oil Grease
Hardness of Bearing:
HRC59-62
Bearing Structure:
Spherical
Clearance:
C0 , C2 , C3 , C1 , C4
Stock:
Bulk

Split Plummer Block Bearing Housings SNL517 Pillow Block Housing SNL517

Product Description

Model

Dimension(mm)

Drawing

Weight(kg)

L

A

W

SN505

165

75

67

1.1

SN506

185

52

77

1.7

Material

cast iron

Port

Guangzhou port

Cetificate

ISO 9001:2008, SASO ,CQC

Advantage

1).Excellent and high quality control  2).Prompt delivery  3).Competitive price  4).Small order accepted  5).Customers' drawing or samples accepted   6).OEM service

Application

Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.

process production

1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging

Choice of seals
There is a choice of two standard seals for each housing and other special seals can be incorporated (fig). End covers are also available.

Reinforced base
The housing base is reinforced with ribs and extra material surrounding the four holes for the attachment bolts in order to improve seating on the base plate. The attachment bolts can be preloaded to give better location and cannot deform the housing base or housing bore (fig).

Good heat conduction
The reinforcement of the housing base means that there is a considerable area of contact between the base and base plate making for improved heat flow away from the bearing (fig).

Relubrication facility
The large SNL housings have three drilled and tapped holes that are plugged by metal screws. Two of the holes are in the housing cap (fig) and one is in the side face. Two grease nipples with covers as well as one adapter with G 1/8 and G 1/4 threads are supplied with each housing. Dimples cast into the cap mark the positions for grease nipples if it is required to relubricate the seals.

Space for sensor connections
Flat areas offer space to accommodate sensors for condition monitoring (fig). Housings with tapped holes can be supplied to order.

Caps and bases individually marked
The housing base and cap are matched during manufacture and are not interchangeable with those of other housings. To prevent mixing, the same consecutive number is marked on the cap and base of each individual housing (fig).

Easy mounting
Cap bolts are easy to unscrew. Notches to pry the cap from the base ease cap removal. The rectangular base and centring marks that are vertical to the housing bore axis simplify alignment (fig). Dimples mark the positions for dowels. Mounting instructions are also supplied with each housing.

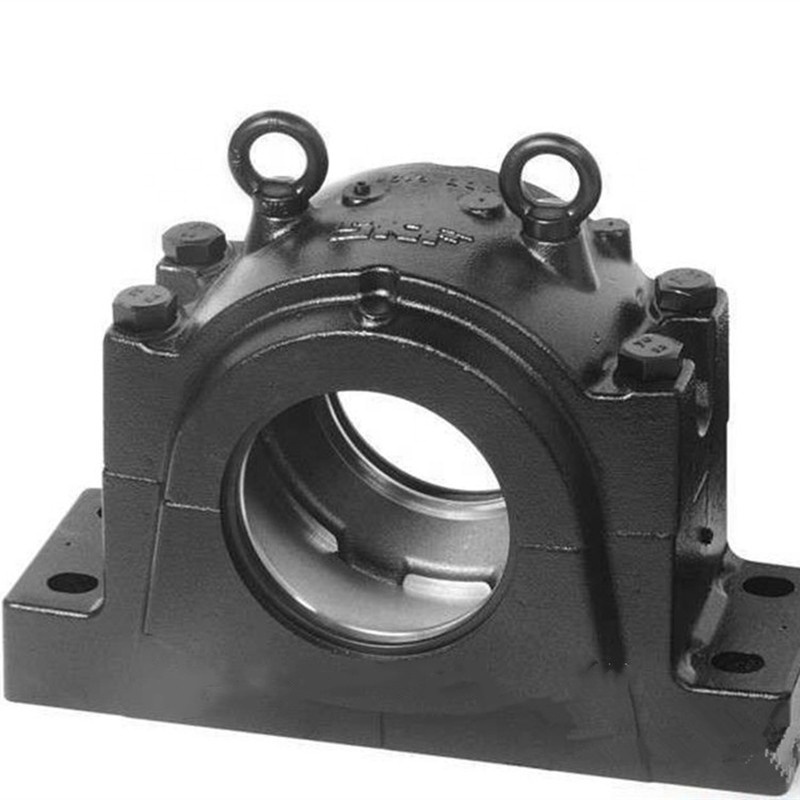

Split plummer block bearing housings sn517 pillow block housing SNL517 Photos

main products range

1.Deep groove ball bearings (68series,69series,60series,62series,63series,64series)
2.Tapered roller bearing(320 series,322 series,323 series)
3.Linear bearing
4.Thrust ball bearing(511 series,512 series,513 series)
5.Cylindrical roller bearing(NU10 series,NJ2 Series,N3 series, NN series)
6.Needle roller bearing
7.Angular contact ball bearing(70 series.72 series.73 series.74 series)
8.Spherical roller bearing
9.Thurst roller bearing
10.Spherical ball bearing(230 series,222series,223series)
11.Pillow block bearing(UCP series, UCF series, UCT series, UCFL series)

Packaging & Shipping
Package

1. Laser mark on the bearing;

2. Bearing wrapped by vacuum packaging ;
3. Outer color polybag + box + carton, industrial standard packaging;

4. According to your requirements.

Delivery 1-3 days after payment received
Shipping port Qingdao,Guangzhou,Shanghai
