Quick Details
-
Brand:
-
KAFENG
-
Packaging:
-
100/bag
-
Description:
-
Screw terminal blocks
-
Date Code，指元器件在生产商的生产日期或生产批次:
-
250V/16A
-
Pitch(mm):
-
5.0
-
Poles (P):
-
2P-XXP
-
Rated current:
-
16A
-
Rated voltage:
-
250V
-
Impulse withstand voltage:
-
1.6KV
-
Wire range:
-
0.5-2.5mm²/22-14AWG
-
Plastic Material:
-
PA66,UL94V-0
-
Stripping Length:
-
6-7mm
-
Conductor Material:
-
Copper,Sn plated
-
Operating temperature:
-
'-40~+105℃
Quick Details
-
Type:
-
Screw Terminal Blocks
-
Model Number:
-
KF300-5.0-XXP
-
Place of Origin:
-
Zhejiang, China
-
Brand:
-
KAFENG
-
Packaging:
-
100/bag
-
Description:
-
Screw terminal blocks
-
Date Code，指元器件在生产商的生产日期或生产批次:
-
250V/16A
-
Pitch(mm):
-
5.0
-
Poles (P):
-
2P-XXP
-
Rated current:
-
16A
-
Rated voltage:
-
250V
-
Impulse withstand voltage:
-
1.6KV
-
Wire range:
-
0.5-2.5mm²/22-14AWG
-
Plastic Material:
-
PA66,UL94V-0
-
Stripping Length:
-
6-7mm
-
Conductor Material:
-
Copper,Sn plated
-
Operating temperature:
-
'-40~+105℃

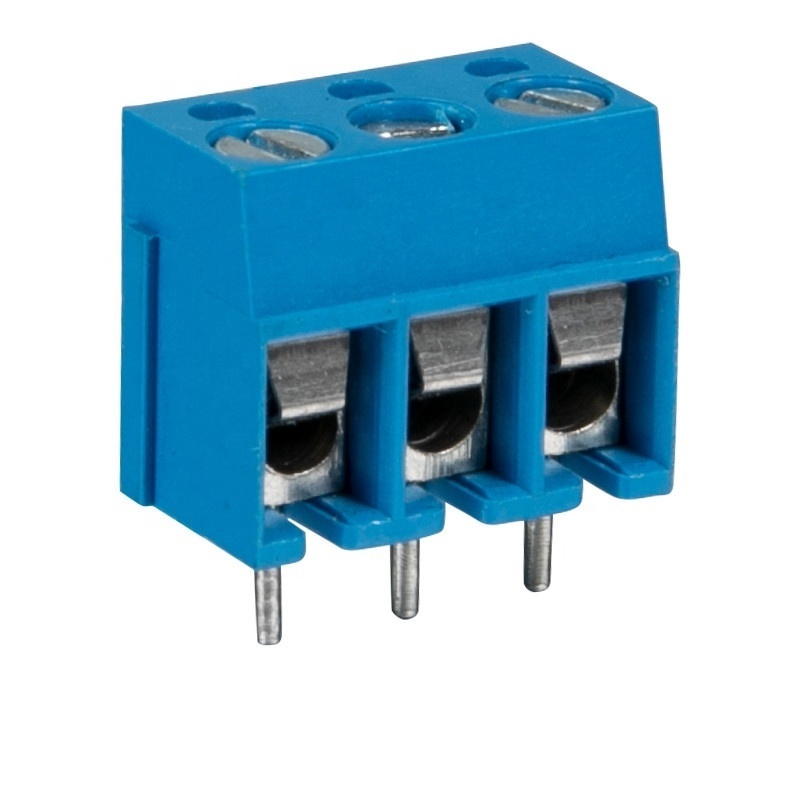

Terminal Blocks: High-quality raw materials
Housing Material: Celanese PA66,UL94V-0.Conductor Material: Copper H65 with Ni Plated;Welding Pin Sn Plated.
Screw: More corrosion resistance, greater torque.
Automatic production, strict quality control.
We have many kinds of terminal block, Welcome to Choose us and we can offer free sample to you for testing first.
Housing Material: Celanese PA66,UL94V-0.Conductor Material: Copper H65 with Ni Plated;Welding Pin Sn Plated.
Screw: More corrosion resistance, greater torque.
Automatic production, strict quality control.
We have many kinds of terminal block, Welcome to Choose us and we can offer free sample to you for testing first.
|
Pitch(mm）
|
5.0
|
|
Poles (P)
|
2P-XXP
|
|
Rated current
|
16A
|
|
Rated voltage
|
250V
|
|
Impulse withstand voltage
|
1.5KV
|
|
Operating temperature
|
-40~+105℃
|
|
Wire range
|
0.2-2.5mm²/22-14 AWG
|
|
Plastic Material
|
PA66,UL94V-0
|
|
Soldering temperature
|
260℃/5S
|
Founded in 2012, Ningbo KAFENG Elecctronic CO.,LTD. is a professional manufacturer of Electronic Connectors. The main products include: Terminal blocks, Dip Switch,Connector and so on.
We have exported more than 100countries like USA, Mexico, Canada, Germany,Spain,Poland,Russia,Singapore,Thailand, India etc.
Professional design team
We have more than 18 engineers in design team, nealy all of them get bachelor degree, They design and develop new products under the guidance of the market.
We do a little max, you can do a little less, let’s create a perfect world together.
Q1: What are your main products?
Our main products contains Terminal blocks,Dip switch,Quick wire connector,DIN41612
connectors,Waterproof connector,Pin header,Female header, and so on.
Q2: How could I ensure the quality?
We have our own QC control department, and we also have got many certifications such as, CE, UL,TUV,CUL and so on to ensure the quality of our products, you could just trust us.
Q3: Is OEM and ODM available?
Yes, OEM and ODM cooperating mode is available.
Q4: Are you factory or foreign trade company?
We are factory and we do export by ourself, we will provide you with the most competitive goods and products.
Q5: I would like to ask you if it's possible to have my logo on the product?
We hope you know that our company support customized logo service, and the logo printing should be up to the logo printing quantity, you could choose the printing method you prefer and we would also like to recommend the one which is more suitable for you.
connectors,Waterproof connector,Pin header,Female header, and so on.
Q2: How could I ensure the quality?
We have our own QC control department, and we also have got many certifications such as, CE, UL,TUV,CUL and so on to ensure the quality of our products, you could just trust us.
Q3: Is OEM and ODM available?
Yes, OEM and ODM cooperating mode is available.
Q4: Are you factory or foreign trade company?
We are factory and we do export by ourself, we will provide you with the most competitive goods and products.
Q5: I would like to ask you if it's possible to have my logo on the product?
We hope you know that our company support customized logo service, and the logo printing should be up to the logo printing quantity, you could choose the printing method you prefer and we would also like to recommend the one which is more suitable for you.
