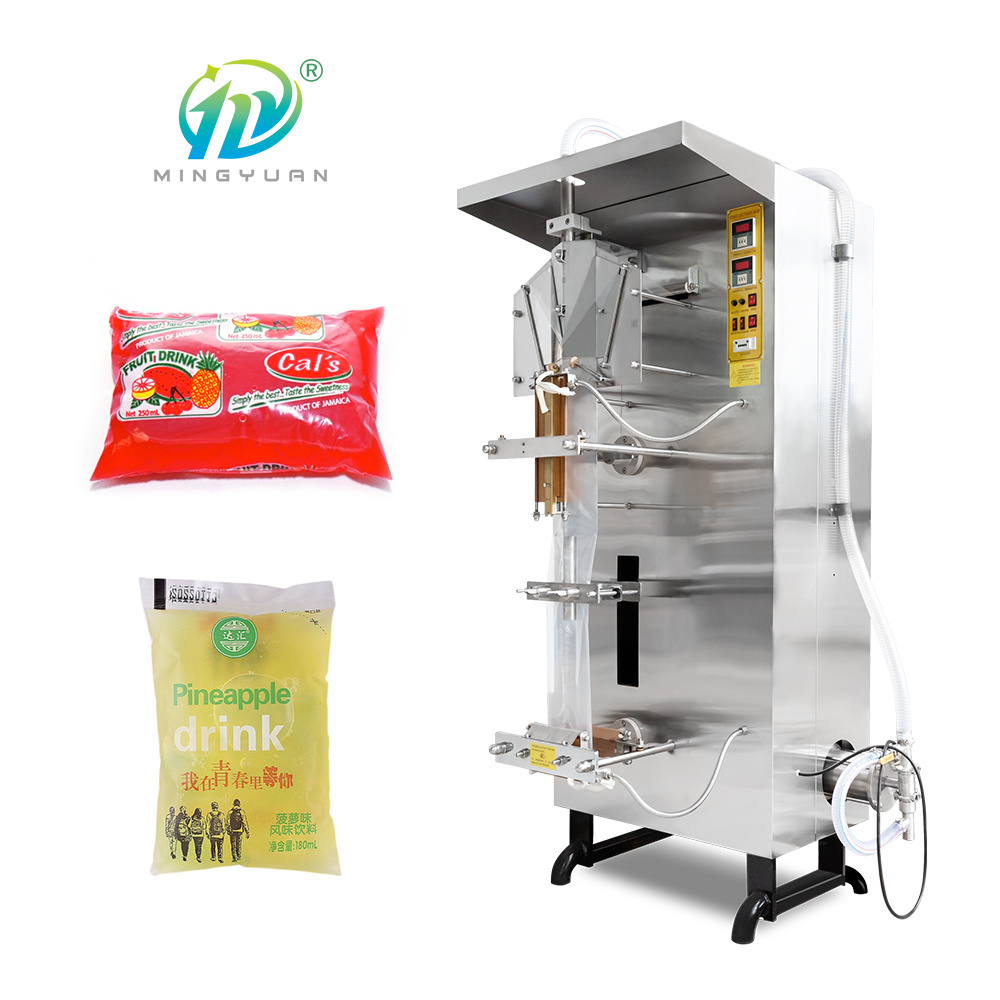

The number is printed on the bag by means of a gear with a steel seal
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
35bag/min
-
Weight (KG):
-
275
-
Voltage:
-
220v/AC 50Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGYUAN
-
Dimension(L*W*H):
-
880X760X1800mm
-
Model:
-
MY-SJ-1000
-
bag-making length:
-
50-150mm
-
Packing film width:
-
100-320mm
-
Packing speed:
-
2000-2200bags/h
-
power:
-
220V/50hz(60hz)
-
Overall Dimension:
-
880*760*1800mm
-
Weight:
-
275kg
Quick Details
-
Function:
-
Wrapping, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
35bag/min
-
Weight (KG):
-
275
-
Voltage:
-
220v/AC 50Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGYUAN
-
Dimension(L*W*H):
-
880X760X1800mm
-
Model:
-
MY-SJ-1000
-
bag-making length:
-
50-150mm
-
Packing film width:
-
100-320mm
-
Packing speed:
-
2000-2200bags/h
-
power:
-
220V/50hz(60hz)
-
Overall Dimension:
-
880*760*1800mm
-
Weight:
-
275kg
Products Description
|
Model
|
MY-SJ1000
|
MY-ZF2000
|
|
bag-making length
|
50-150mm
|
50-150mm
|
|
Packing film width
|
100-320mm
|
100-320mm
|
|
Packing speed
|
2000-2200bags/h
|
1100-1400bags/h
|
|
power
|
220V/50hz（60hz） 1.6KW
|
220V/50hz（60hz） 2.1KW
|
|
Overall Dimension
|
880×760×1800mm
|
1050*850*2050mm
|
|
Weight
|
275kg
|
370kg
|
Packaging sample
Product Details
Control panel (button version)
It adopts button-type control, which is intuitive and easy to operate.
Operation panel (intelligent version)
Adopt PLC controller with color touch screen, support multiple languages, all working parameters can be set and reflected on the
control panel, easy to operate
control panel, easy to operate
Bag Forming Unit
The film is reduced to the size required for packaging through the overshaper
Vertical sealing component
The pure copper vertical seal has the advantages of fast heating unifoem temperature and good Heat conduction effect without deformation
Pumping plant
Water is pumped from the container into the machine by means of a pumping device
Drawing film forming
Two bag pulling devices,ensure the film running more smoothly
Bag pulling component
Pulling the bag smoothly with accurate length.
Horizontal sealer
Pure copper is used to generate heat quickly,the bag is sealed horizontally. The seal is beautiful and firm ,and it can withstand 70 kilograms of pressure.
Optional equipment
Steel mark coder
Why Choose Us
Free tool box
Success Case
Company Strength
Make sample bags
If it’s necessary according to your requirements, we can make sample bags for your reference.
Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
Remark
1. Our company accept the payment of L/C,,T/T,e-checking, etc,confirm with our sales personnel finally please.
2. There may becharge when adding the additional configuration, please confirm with our sales personnel.
3. The packing machine final price need to confirm with our sales personnel.
4. Our company reserve all the right for the final explanation. Send your message to this supplier
