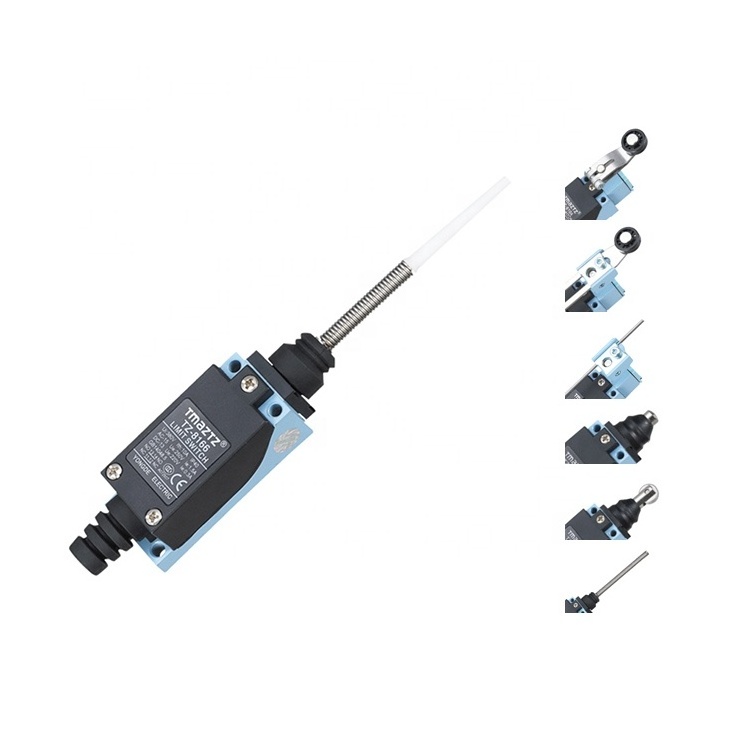

TMAZTZ limit switch TZ AZ 8166 ME 8166 XCE 181 Flexible rod type wire rope hoisting

TMAZTZ limit switch TZ AZ 8166 ME 8166 XCE 181 Flexible rod type wire rope hoisting

FOB Reference Price: Get Latest Price

≥200 Pieces

US $1.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: TZ8166

Protection Level:: IP65

Operating Temperature:: -5 ~+65

Max. Current:: 15A

Quick Details

Max. Voltage:: 380V

Place of Origin:: Zhejiang, China

Brand Name:: TMAZTZ

Model Number:: TZ8166

Protection Level:: IP65

Operating Temperature:: -5 ~+65

Max. Current:: 15A

Product Overviews

Product Show

DRAWING AND SPECIFIC

Version:1.0 StartHTML:000000264 EndHTML:000018154 StartFragment:000002327 EndFragment:000018106 StartSelection:000002327 EndSelection:000018038 SourceURL:https://post.alibaba.com/product/publish.htm?spm=a2747.manage.0.0.1af471d2LYIWVR&itemId=1600067186170

Specifications

.Ratings

Rated
vottage

Non-inductive load

Inductive load

Resistive
load

Lamp load

Inductive load

Motor load

N.C.

N.O.

N.C.

N.O.

N.C.

N.O.

N.C.

N.O.

125 VAC

250 VAC

1.5

0.7

0.5

1.5

0.8

8 VDC

14 VDC

30 VDC

125 VDC

250 VDC

0.4

0.2

0.4

0.2

Notes: 1. Inductive load has a power factor of 0.4 min. (AC) and a time constant of

7msec. max. (DC).

2. Lamp load has an inrush current of 10 times the steady-state current,

while motor load has an inrush current of 6 times the steady-state current.

.Characteristics

Operating speed	5mm to 50cm/s
Operating frequency	120 operations/min.
Contact resistance	25mW max (initial)
Insulation resistance	100MW min. (at 500VDC)
Dielectric strength	1,000VAC, 50/60Hz for 1 minute between non-continuous terminals; 1,500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying parts and between each terminal and ground
Vibration	10 to 55Hz, 1.5mm double amplitude
Shock	Approx. 300m/s ² (approx. 30G’s)
Ambient temperature	Operating: -5 to +65°c
Humidity	95%RH max.
Service life	Mechanically: 10,000,000 operations min. Electrically: 500,000 operations min.
Weight	Approx. 130 to 190g
Degree of protection	IEC : IP65
