Quick Details
-
Dimensions:
-
1000*1000*50
-
Use:
-
Welding
-
Weight (KG):
-
500 KG
-
Product name:
-

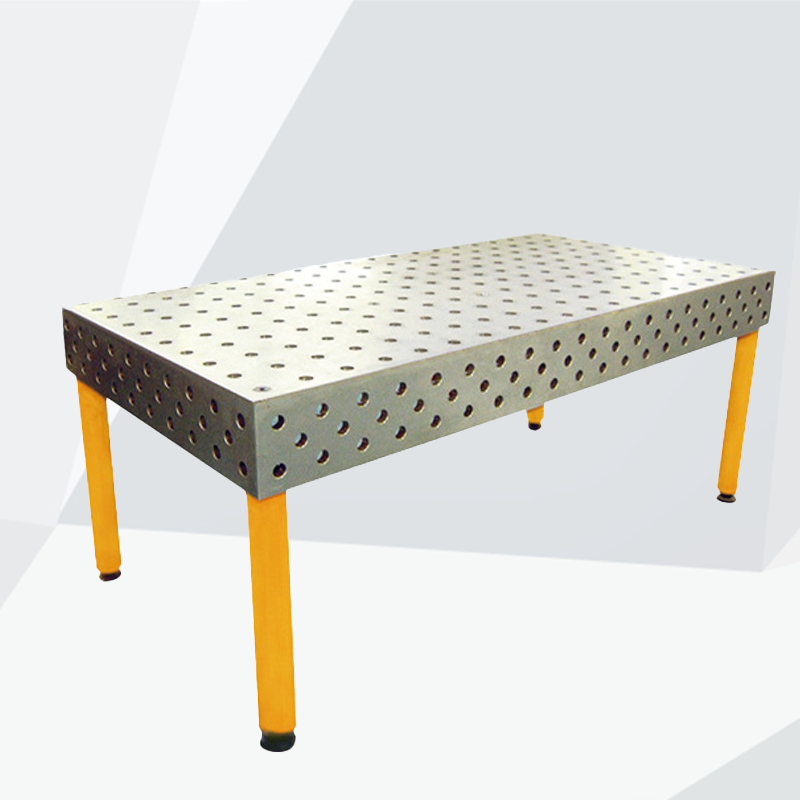

3D Welding Table
-
Material:
-
Cast Iron
-
Feature:
-
Long Lifespan
-
Function:
-
Precision Soldering Welding
-
Surface:
-
D16
-
Surface Treatment:
-
Tempering Nitriding
-
Support:
-
Support Leg
-
Process:
-
CNC Machining
-
Quality:
-
High-quality
-
Accessory:
-
Supporting Angles
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Precise
-
Dimensions:
-
1000*1000*50
-
Use:
-
Welding
-
Weight (KG):
-
500 KG
-
Product name:
-
3D Welding Table
-
Material:
-
Cast Iron
-
Feature:
-
Long Lifespan
-
Function:
-
Precision Soldering Welding
-
Surface:
-
D16
-
Surface Treatment:
-
Tempering Nitriding
-
Support:
-
Support Leg
-
Process:
-
CNC Machining
-
Quality:
-
High-quality
-
Accessory:
-
Supporting Angles
Product Paramenters
3Series:D16/D22/D28
D16 tables: Hole diameter is @16mm; Hole spacing to each other is 50+0.05mm; Grid pattern 50x50mm on table top.
D22 tables: Hole diameter is @22mm; Hole spacing to each other is 75+0.05mm; Grid pattern 75x75mm on table top.
D28 tables:Hole diameter is 28mm; Hole spacing to each other is 100+0.05mm; Grid pattern 100x100mm on table top.
D22 tables: Hole diameter is @22mm; Hole spacing to each other is 75+0.05mm; Grid pattern 75x75mm on table top.
D28 tables:Hole diameter is 28mm; Hole spacing to each other is 100+0.05mm; Grid pattern 100x100mm on table top.
|
D28 series parameters
|
|
|
|
Aperture
|
φ28.065--φ28.149mm
|
|
|
Hole spacing
|
L1=100±0.05mm
|
|
|
Flatness
|
0.1/1000mm
|
|
|
Verticality
|
0.1/200mm
|
|
|
Surface roughness
|
RA3.2
|
|
|
Standard load bearing
|
2T
|
|
|
Frame bearing
|
5T
|
|
|
Nitriding hardness
|
HV450~HV630
|
|
|
Specifications
|
1000*1000~2000*4000mm
|
|
|
Part NO.
|
Specifcation（mm）
|
Weight（KG）
|
|
PT-1010
|
1000*1000*200
|
345
|
|
PT-1212
|
1200*1200*200
|
455
|
|
PT-1510
|
1500*1000*200
|
480
|
|
PT-1515
|
1500*1500*200
|
725
|
|
PT-2010
|
2000*1000*200
|
655
|
|
PT-2412
|
2400*1200*200
|
870
|
|
PT-3015
|
3000*1500*200
|
1365
|
|
PT-4020
|
4000*2000*-200
|
2375
|
|
D16 series parameters
|
|
|
|
Aperture
|
φ16.065--φ16.149mm
|
|
|
Hole spacing
|
L1=50±0.05mm
|
|
|
Flatness
|
0.1/1000mm
|
|
|
Verticality
|
0.1/200mm
|
|
|
Surface roughness
|
RA1.6
|
|
|
Standard load bearing
|
2T
|
|
|
Frame bearing
|
5T
|
|
|
Nitriding hardness
|
HV450~HV630
|
|
|
Specifications
|
1000*500~2400*1200mm
|
|
|
Part NO.
|
Specifcation（mm）
|
Weight（KG）
|
|
PT-105D
|
1000*500*100
|
82
|
|
PT-1010D
|
1000*1000*100
|
156
|
|
PT-128D
|
1200*800*100
|
142
|
|
PT-1212D
|
1200*1200*100
|
210
|
|
PT-1510D
|
1500*1000*100
|
232
|
|
PT-1515D
|
1500*1500*100
|
345
|
|
PT-2010D
|
2000*1000*100
|
297
|
|
PT-2412D
|
2400*1200*100
|
453
|
Products show
1. Modularity and flexibility
Can be connected and changed arbitrarily according to the shape of workpiece.
2. High precision.
The precision can reach decimillimetre(dmm) for fixing and clamping.
3. Quick fixing and clamping.
Only spending a few minutes to fix and clamp workpieces from one to another.
4. Ease to operate.
Only 2 hours, any worker can learn how to use it quickly.
5. High price-performance ratio.
1 set of modular flexible fixture can replace all traditional dedicated fixtures.
Saved a lot of time, labor, material resources and funds for enterprises.
6. Clean, tidy and environmental Friendly.
Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.
Can be connected and changed arbitrarily according to the shape of workpiece.
2. High precision.
The precision can reach decimillimetre(dmm) for fixing and clamping.
3. Quick fixing and clamping.
Only spending a few minutes to fix and clamp workpieces from one to another.
4. Ease to operate.
Only 2 hours, any worker can learn how to use it quickly.
5. High price-performance ratio.
1 set of modular flexible fixture can replace all traditional dedicated fixtures.
Saved a lot of time, labor, material resources and funds for enterprises.
6. Clean, tidy and environmental Friendly.
Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.
