Quick Details
-
Voltage:
-
380V
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
1200*500*800mm
-
Weight (KG):
-
493
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Wood Chipper Making Machine Wood Sawdust Shredder Crusher Machine
-
Name:
-
waste wood sawdust grinder
-
Application:
-
Wood Processing
-
Raw material:
-
Wood Pieces
-
Spare parts:
-
Hammer Blades
-
Usage:
-
Wood Chipper Shredder Cutting Wood Branch
-
Function:
-
Crushine Wood
-
Advantage:
-
High Efficient
-
Package:
-
Wooden Case
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mona
-
Marketing Type:
-
Hot Product 2020
-
Voltage:
-
380V
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
1200*500*800mm
-
Weight (KG):
-
493
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Wood Chipper Making Machine Wood Sawdust Shredder Crusher Machine
-
Name:
-
waste wood sawdust grinder
-
Application:
-
Wood Processing
-
Raw material:
-
Wood Pieces
-
Spare parts:
-
Hammer Blades
-
Usage:
-
Wood Chipper Shredder Cutting Wood Branch
-
Function:
-
Crushine Wood
-
Advantage:
-
High Efficient
-
Package:
-
Wooden Case
coconut shell grinding agricultural diesel wood sawdust crushing machine waste wood crusher machine price for biochar pellet
coconut shell grinding agricultural diesel wood sawdust crushing machine waste wood crusher machine price for biochar pellet

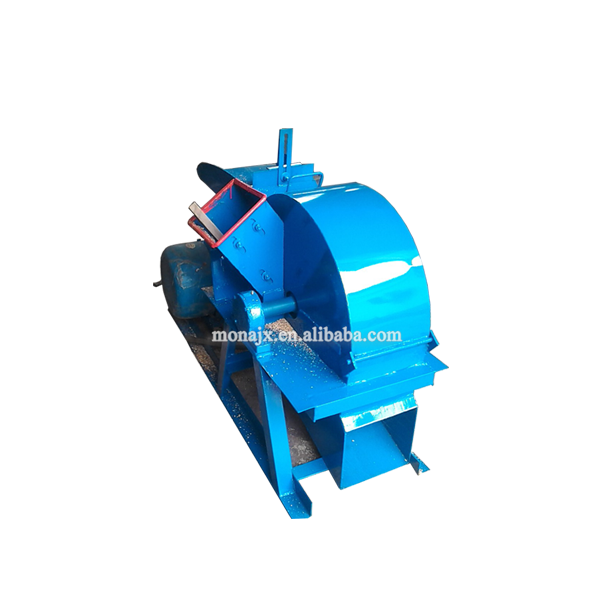

I ntroduction of wood crusher:
This wood sawdust machine is composed by host body, knife cutting part, chips re-crush part and sieving part ,ect. It combines both chipping and crushing in one machine, can make sawdust in one process, no need to use wood chipper for preprocessing of wood logs. To ensure security, the feed inlet of this crushing equipment adopts self-sction design to avoid serious damage to operators.
Raw Material of wood crusher:
Any types of Agro-forestry waste& forest waste.
Such as wood branch, wood logs, wood waste, wood chips, wood pieces, bamboo, panel, and corn comb, stalks, rice husk, coffee husk, coir pith, jute sticks, groundnut shells.
Work Principle of Wood crusher:
Timber by feed port into, when wood according to contact to peel and cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, cut cut pieces of wood in the peel and cut indoor by cutting knife plate wind leaf produced by the high speed flow send out.
Advantages of Wood crusher :
Compact structure, high output, wide range of raw materials, high
quality of wood chips, safe and reliable, easy to operate, easy to
maintain, is the advanced wood chipper home and abroad.
Technical parameters of wood crusher:
|
Model |
Blade (pcs ) |
Feeding size (mm ) |
Cutter Dia. ( mm ) |
Blade size (mm ) |
Capacity ( T/h ) |
Spindle speed ( r/min ) |
Power (kw ) |
Physical size(mm) |
|
MN-420 |
3 |
150*150 |
420 |
150*70*8 |
0.6-1.5 |
600 |
7.5 |
1200*500*800 |
|
MN-600 |
3 |
180*150 |
600 |
200*100*10 |
1.5-3 |
600 |
15 |
1500*570*1050 |
|
MN-700 |
3 |
190*200 |
650 |
230*120*12 |
2-6 |
600 |
18.5 |
1500*680*1100 |
|
MN-800 |
4 |
200*200 |
735 |
230*120*12 |
3-8 |
550 |
30 |
1850*730*1240 |
|
MN-950 |
4 |
230*250 |
830 |
250*120*12 |
5-10 |
550 |
37 |
1900*820*1800 |
|
MN-1150 |
4-6 |
300*300 |
1150 |
340*150*14 |
8-13 |
600 |
75 |
2560*1150*1800 |
Our stock of wood crusher:
Delivery shows of wood crusher:
