Quick Details
-
Place of Origin:
-
Fujian,China
-
Brand Name:
-
SAVCH
-
Model Number:
-
S800
-
Warranty:
-
12months
-
Type:
-
AC-DC-AC
-
Name:
-
China VFD Drive 220V 2HP Savch Power Inverter 1.5KW S800
-
key part:
-
Fairchild IGBT,Delta Fan
-
color:
-
white or dark blue
-
Output frequency resolution:
-
0.1hz
-
control mode:
-
V/F
-
Input Rated Voltage:
-
Single 220V
-
Output frequency,Voltage:
-
0.1Hz~400Hz ,0~230V
-
Capacity (kW):
-
0.2 ~1.5kW
-
Cooling mode:
-
Natural cooling/forced cooling
-
Hunidity:
-
Below 90RH%(no dewing)
-
Certification:
-
CE,ISO9001/14001,OHSAS 18001
Quick Details
-
Control Mode:
-
V/F
-
Rated Power:
-
0.2-1.5kW
-
Nominal Voltage:
-
220V,230V
-
Place of Origin:
-
Fujian,China
-
Brand Name:
-
SAVCH
-
Model Number:
-
S800
-
Warranty:
-
12months
-
Type:
-
AC-DC-AC
-
Name:
-
China VFD Drive 220V 2HP Savch Power Inverter 1.5KW S800
-
key part:
-
Fairchild IGBT,Delta Fan
-
color:
-
white or dark blue
-
Output frequency resolution:
-
0.1hz
-
control mode:
-
V/F
-
Input Rated Voltage:
-
Single 220V
-
Output frequency,Voltage:
-
0.1Hz~400Hz ,0~230V
-
Capacity (kW):
-
0.2 ~1.5kW
-
Cooling mode:
-
Natural cooling/forced cooling
-
Hunidity:
-
Below 90RH%(no dewing)
-
Certification:
-
CE,ISO9001/14001,OHSAS 18001

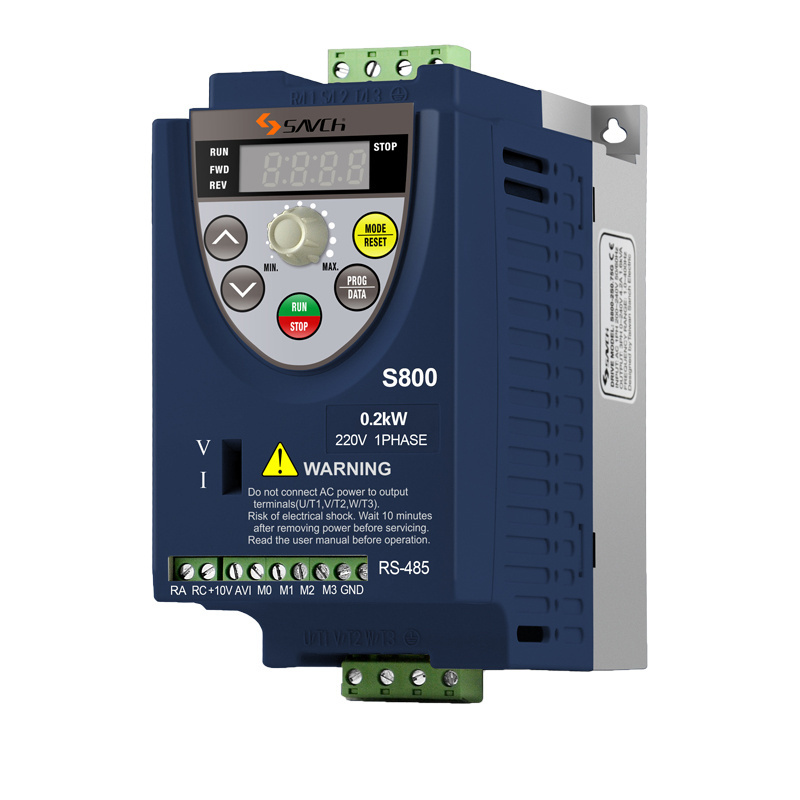

China VFD Drive 220V 2HP Savch Power Inverter 1.5KW S800
| Item | Descriptions | |
| Input Rated Voltage | Single 220V | |
| Output frequency,Voltage | 0.1Hz~400Hz ,0~230V | |
| Capacity (kW) | 0.2 ~1.5kW | |
| Key parts | Microchip MCU & DSP dual core calculation chip | |
| Fairchild IGBT | ||
| Delta Fan | ||
| Certification | CE,ISO9001/14001,OHSAS 18001 | |
| Control Mode | V/F Control,standard RS-485 communication | |
| Output frequency resolution | 0.1Hz | |
| Torque characteristic | There is torque compensation,slip compensation and at 3Hz the activating torque can reach above | |
| Tolerance of overload | 150% of the rated output current, 60 sec. | |
| Acceleration/deceleration time | 0.1~600 sec.(can have independent settings respectively) | |
| V/F curve | Setting 6 fixed curves + any curves | |
| Action position standard of avoiding losing speed | Setting with the percentage of rated current,20~200% | |
| Frequency setting signal | Panel operation | Setting by up/downbuttons or V.R |
| External signal | AVI/ACI setting,UP/DOWN setting,communication setting,pulse input setting | |
| Signal of runsetting | Panel operation | Setting by RUN,STOP buttons |
| External signal | M0,M1,M2 and M3 form run of various run modes; RS-485 communication port | |
| Multifunction input signal | Selection of section command 0~15,FWD/REV inching motion command, acceleration/deceleration prohibition command,swiching command of first and second acceleration/deceleration,selection of counter,program run,external B.B.(NC,NO),pulse input,two kinds of 3-line wiring modes,output prohibition | |
| Multifunction input signal | During run,run frequency arrival,setting frequency arrival,counter arrival,zero speed,abnormal displays in B.B,program run command,FWD/REV running direction command | |
| Advantage and functions | 1.Mini Size | |
| 2.Economy and Competitive cost | ||
| 3.Adopt MCU & DSP dual core calculation chip, fast CPU calculation speed | ||
| 4.Great performance: auto torque compensation, auto slip detection compensation, low noise, high overload performance. | ||
| 5.Intelligent wobble frequency, could be applied in the occasions that required traverse or winding, such textile and fiber chemical etc. | ||
| 6.Built-in PLC, available to preset 16 sections of running program. | ||
| Protective functions | Over voltage,over current,low voltage,limit of over load,electronic thermoelectric station,overheating,self-testing,grounding protection,abnormal contact | |
| Cooling mode | Natural cooling/forced cooling | |
| Environment | Application site | Height below 1000m,indoor,(free of corrosive gas,liquid and dust filth |
| Ambient temperature | -10°C~40°C(no dewing and no freezing) | |
| Storage temperature | -20°C~60°C | |
| Hunidity | Below 90RH%(no dewing) | |
| Vibration | Below 20Hz9.80665m/s²(1G) 20~50Hz 5.88m/s²(0.6G) | |
Any requirements ,feel free to contact :Abby Su 86 13459161645
