Quick Details
-
Model Number:
-
SQ-Z12, Z60
-
Place of Origin:
-
Henan, China
-
Name:
-
Vertical High Pressure Steam Sterilizer Autoclave Used Steam Autoclave
-
Volume:
-
100L ,200L
-
Certificates:
-
CE ISO
-
Color:
-
as picture
-
MOQ:
-
1 Set
-
Standard sterilization time:
-
0-99 Minutes
-
Sterilization temperature:
-
105~134℃
-
Power supply:
-
AC220V.50Hz
-
Max operating pressure:
-
0.22MPa
-
Material:
-
stainless steel
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Onsite Training
-
Brand Name:
-
SANQIANG
-
Model Number:
-
SQ-Z12, Z60
-
Place of Origin:
-
Henan, China
-
Name:
-
Vertical High Pressure Steam Sterilizer Autoclave Used Steam Autoclave
-
Volume:
-
100L ,200L
-
Certificates:
-
CE ISO
-
Color:
-
as picture
-
MOQ:
-
1 Set
-
Standard sterilization time:
-
0-99 Minutes
-
Sterilization temperature:
-
105~134℃
-
Power supply:
-
AC220V.50Hz
-
Max operating pressure:
-
0.22MPa
-
Material:
-
stainless steel

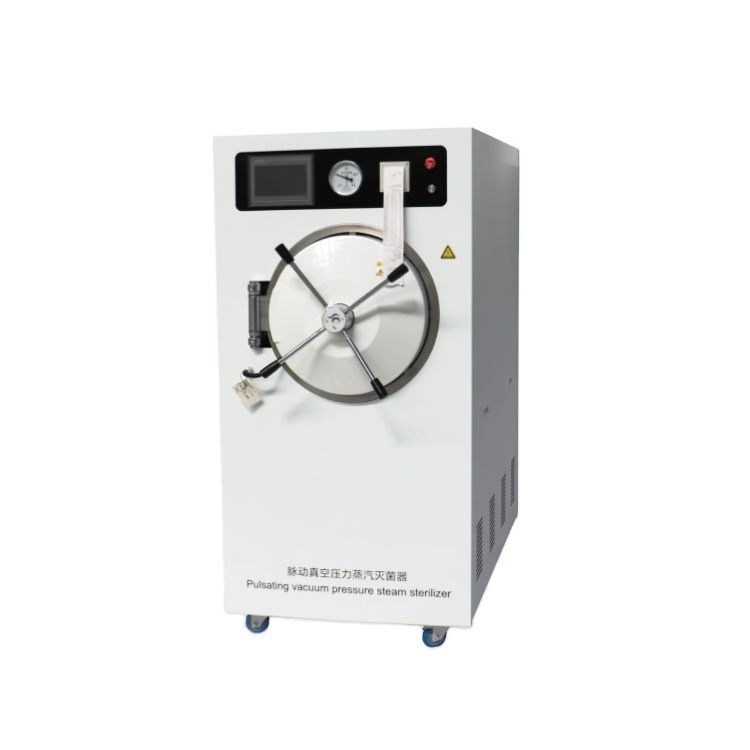

Vertical High Pressure Steam Sterilizer Autoclave Used Steam Autoclave
Specification
|
Model |
SQ-M100 |
SQ-M200 |
|
Volume |
100L |
200L |
|
Type |
Vertical |
Vertical |
|
Heating method |
Electric |
Electric |
|
Power |
10.0KW |
20.0KW |
|
Power supply |
AC380V,50Hz |
AC380V,50Hz |
|
Carton size |
1150x770x1520mm |
1190x810x1580mm |
|
Chamber size |
420×700mm |
500×1000mm |
|
Net weight |
263kg |
305kg |
|
Temperature display |
LCD |
LCD |
|
Designed pressure |
0.29MPa |
0.29MPa |
|
Rated working pressure |
0.21Mpa; |
0.21Mpa; |
|
Designed temperature |
150℃; |
150℃; |
|
Working temperature |
121℃/134℃; |
121℃/134℃; |
|
Pulse times |
0~99 |
0~99 |
|
Sterilize time |
0~9999 seconds |
0~9999 seconds |
|
Drying time |
0~9999 seconds |
0~9999 seconds |
[Pulse amplitude value]positive value 0.065Mpa~0.09Mpa,negative value -0.06Mpa~-0.08Mpa
[Pressure controller set]up switch value 0.23Mpa, down switch value 0.21Mpa
[Generator water source]soften water or purify water, the water temperature ≤45℃,water pressure 0~0.05 Mpa
[Vacuum pump water source]running water(should not be too hard), water pressure 0.10Mpa~0.20Mpa
[Air output]more than 99% (pulse more than 3 times)
[Vacuum drying]avoid the sterilized item wet after sterilization.
[Pulse exhaust]Positive pressure dynamic pulse exhaust, eliminate the chamber indoor cold air completely, to ensure that the steam saturation
[Procedures]Equipped with liquid, culture medium sterilize thermal insulation, culture medium dissolved insulation, glass, utensils, rubber, a variety of procedures to choose.
1 .WHY CHOOSE US ?
HENAN SANQIANG MEDICAL EQUIPMENT LABILITY CO., LTD IS A RESEARCH AND DEVELOPMENT, PRODUCTION AND SALE OF MEDICAL EQUIPMENT AS ONE OF THE INNOVATIVE TECHNOLOGY COMPANIES.
2.OUR PAYMENT METHOD ?
30% DEPOSIT AND 70% BALANCE AGAINST OF B/L COPY .
3.WHAT IS THE LEAD TIME FOR REGULAR ORDER?
3-21 DAYS FOR ORDER QUANTITY LOWER THAN 10PCS ; FOR MORE QUANTITY , USUALLY 30 DAYS .
4.DO YOU INSPECT THE FINISHED PRODUCTS?
YES,EACH STEP OF PRODUCTION AND FINISHED PRODUCTS WILL BE INSPECT BY QC DEPARTMENT BEFORE SHIPPING.
