Quick Details
-
Model Number:
-
GM-026
-
Product Name:
-

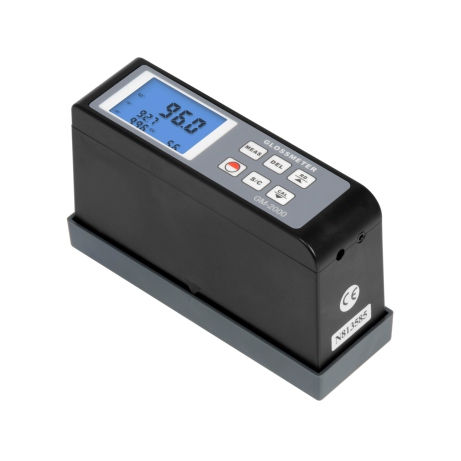

Gloss meter
-
Display:
-
4 Digits Backlit LCD
-
Measuring Angle:
-
20/60/degree
-
Range:
-
0.1 ~ 200 Gloss Units
-
Gloss Units:
-
GU
-
Accuracy:
-
±1.0 GU
-
Resolution:
-
0.1
-
Measuring Area:
-
7 x 14 mm(Ellipse)
-
Power Supply:
-
3.7V Lithium Ion Rechargeable Battery
-
Dimensions:
-
140x45x75mm
-
Certification:
-
ASTMD523, ASTMD1455, ASTMC346, ASTMC584,ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668,JISZ8741, MFT30064, TAPPIT480, GB9754,GB/T13891, GB7706 and GB8807,Its technical parameters conform with JJG696-2002
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Hydraulic
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GM-026
-
Product Name:
-
Gloss meter
-
Display:
-
4 Digits Backlit LCD
-
Measuring Angle:
-
20/60/degree
-
Range:
-
0.1 ~ 200 Gloss Units
-
Gloss Units:
-
GU
-
Accuracy:
-
±1.0 GU
-
Resolution:
-
0.1
-
Measuring Area:
-
7 x 14 mm(Ellipse)
-
Power Supply:
-
3.7V Lithium Ion Rechargeable Battery
-
Dimensions:
-
140x45x75mm
-
Certification:
-
ASTMD523, ASTMD1455, ASTMC346, ASTMC584,ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668,JISZ8741, MFT30064, TAPPIT480, GB9754,GB/T13891, GB7706 and GB8807,Its technical parameters conform with JJG696-2002
Application
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement
Features:
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Material And Angle Selection Recommended
20°: High gloss paint, printing ink, plastics, paper and other materials.
60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
85°: Low gloss paint, camouflage coatings materials.
Product specification:
|
Display |
4 Digits Backlit LCD |
|
Measuring Angle |
20 º /60 º |
|
Range |
0.1 ~ 200 Gloss Units |
|
Gloss Units |
GU |
|
Accuracy |
±1.0 GU |
|
Resolution |
0.1 |
|
Repeatability |
±0.5 GU |
|
Measuring Area |
7 x 14 mm( Ellipse ) |
|
Data Memorized |
254 Groups |
|
Operating Conditions |
Temp : 0 ~ 40°C |
|
Humidity: < 85% RH |
|
|
Power Supply |
3.7V Lithium Ion Rechargeable Battery |
|
Dimensions |
140x45x75mm |
|
Weight |
305 g(Not Including Batteries)) |
|
Standard Accessories |
Main Unit |
|
Holder with Calibration Standard |
|
|
AC Adapter |
|
|
Optical Cleaning Cloth |
|
|
Carrying Case |
|
|
Operation Manual |
