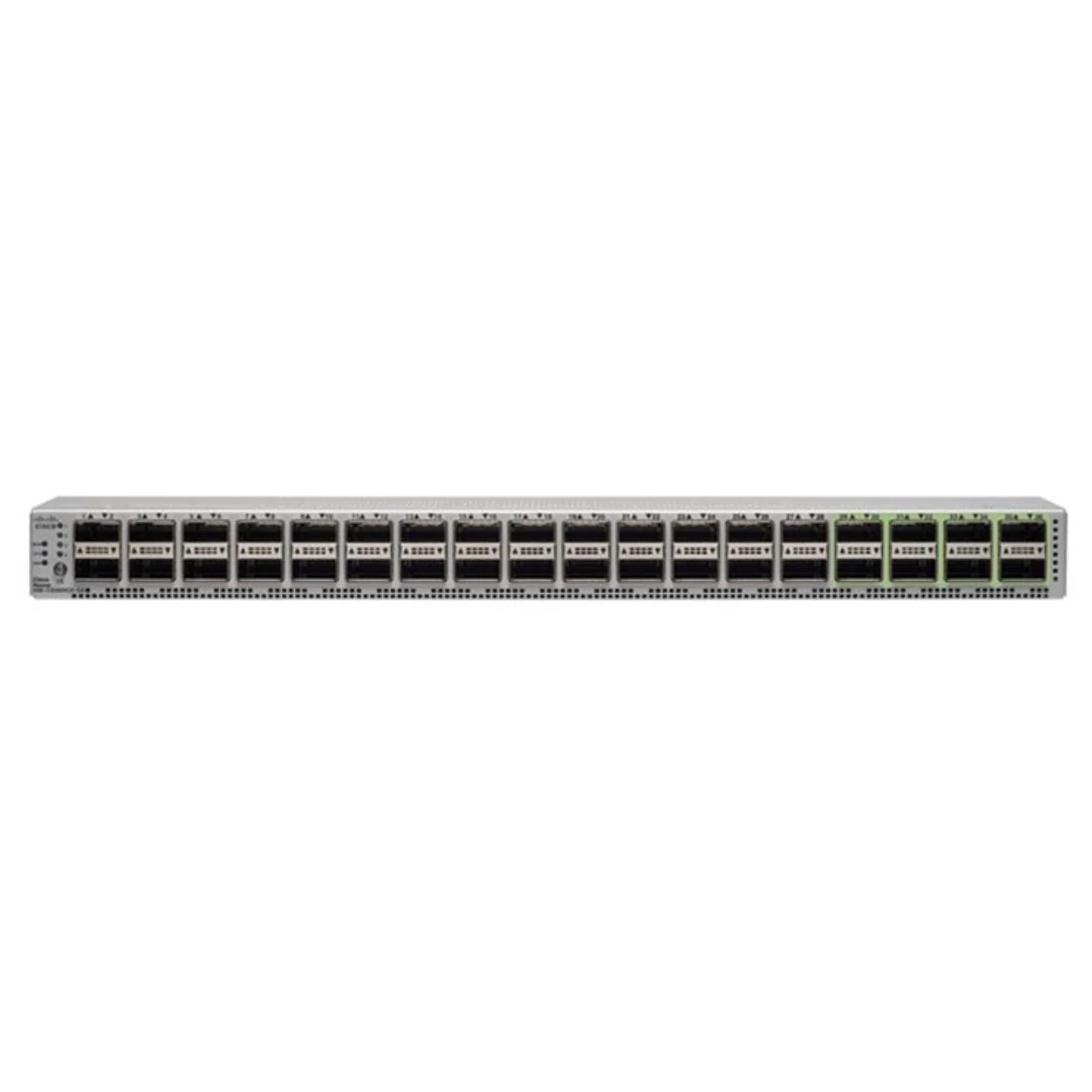

N9K-C93600CD-GX Nexus 9316D Spine and Leaf switch Cisco Nexus 9000 Series N9K-C93600CD-GX

N9K-C93600CD-GX Specification

Ports

● 28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports

Physical

● System memory: 16 GB NX-OS, 24 GB ACI
● Solid-State Disk (SSD): 128 GB
● USB: 1 port
● RS-232 serial console ports: 1
● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
● Broadwell-DE CPU: 4 cores
● Dimensions (H x W x D): 1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm)

Packet buffer

● 80 MB centralized buffer

Cooling

● Fans: NXA-FAN-35CFM-PI and NXA-FAN-35CFM-PE
● 5+1 redundancy
● Port-side intake or port-side exhaust airflow direction
● Hot swappable: Yes

Power

● AC:
◦ 1100W Watt (W) AC power supplies (up to 2)
◦ 1+1 redundancy
◦ 80 Plus Platinum-rated power supplies with efficiency of 90% or greater (20 to 100% load)
◦ Frequency: 50 to 60 Hz (AC)
◦ RoHS compliance: Yes
◦ Hot swappable: Yes
◦ Port-side intake or port-side exhaust options
◦ Typical power: 590W
● DC:
◦ 1100 Watt (W) DC power supplies (up to 2)
◦ 1+1 redundancy
◦ 80 Plus Platinum-rated power supplies with efficiency of 90% or greater (20 to 100% load)
● High-voltage AC/DC
◦ Power: 1100W AC, 930W DC, or 1200W HVAC/HVDC
◦ Input voltage: 100 to 240V * AC or –40 to –72V DC (minimum and maximum), –48 to –60V DC (nominal)

Environmental

● Operating temperature: 32 to 104°F (0 to 40°C)
● Nonoperating (storage) temperature: -40 to 158°F
● (-40 to 70°C)
● Humidity: 5 to 85% (noncondensing)
● Altitude: 0 to 13,123 ft (0 to 4000m)

Maximum number of IPv4 Longest Prefix Match (LPM) routes

896,000

Maximum number of IPv4 host entries

896,000

Maximum number of MAC address entries

256,000

Maximum number of multicast routes

32,000

Number of Interior Gateway Management Protocol (IGMP) snooping groups

Shipping: 8000
Maximum: 32,000

Maximum number of Access-Control-List (ACL) entries

Per slice of the forwarding engine:
● 5000 ingress
● 2000 egress
● Max: 20,000 ingress, 8000 egress

Maximum number of VLANs

3967

Number of Virtual Routing and Forwarding (VRF) instances

Shipping: 1000
Maximum: 16,000

Maximum number of ECMP paths

64

Maximum number of port channels

512

Maximum number of links in a port channel

32

Number of active SPAN sessions

4

Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances

3967

Maximum number of Hot-Standby Router Protocol (HSRP) groups

490

Maximum number of Multiple Spanning Tree (MST) instances

64

Flow-table size used for Cisco Tetration Analytics platform

64,000

Number of Network Address Translation (NAT) entries

1023

Regulatory compliance

Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC.

Safety

● UL 60950-1 Second Edition
● CAN/CSA-C22.2 No. 60950-1 Second Edition
● EN 60950-1 Second Edition
● IEC 60950-1 Second Edition
● AS/NZS 60950-1
● GB4943

EMC: Emissions

● 47CFR Part 15 (CFR 47) Class A
● AS/NZS CISPR22 Class A
● CISPR22 Class A
● EN55022 Class A
● ICES003 Class A
● VCCI Class A
● EN61000-3-2
● EN61000-3-3
● KN22 Class A
● CNS13438 Class A
Note: Cisco Nexus N9K-C9364C passes EMC Radiated Emissions standards in all configurations, with the only exception being if more
than 40 pluggable optics of Cisco part number 10-3142-02 (or 10-3142-01) are used.

EMC: Immunity

● EN55024
● CISPR24
● EN300386
● KN 61000-4 series

RoHS

The product is RoHS-6 compliant with exceptions for leaded Ball Grid-Array (BGA) balls and lead
press-fit connectors.
