Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OMC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5800x3120x3320mm
-
Weight:
-
4000 kg
-
Blade:
-
1pc
-
Programming method:
-
Manual or CAD import
-
Control method:
-
CNC
-
R.P.M:
-
1000-6000
-
X axis working stroke:
-
3500mm
-
Y axis working stroke:
-
2000mm
-
Z axis working stroke:
-
400mm
-
A axis working stroke:
-
360 degree free rotation
-
B axis working stroke:
-
0-90 degree chamfer automatically
-
Cutting thickness:
-
100mm
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
7.5kw
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OMC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5800x3120x3320mm
-
Weight:
-
4000 kg
-
Blade:
-
1pc
-
Programming method:
-
Manual or CAD import
-
Control method:
-
CNC
-
R.P.M:
-
1000-6000
-
X axis working stroke:
-
3500mm
-
Y axis working stroke:
-
2000mm
-
Z axis working stroke:
-
400mm
-
A axis working stroke:
-
360 degree free rotation
-
B axis working stroke:
-
0-90 degree chamfer automatically
-
Cutting thickness:
-
100mm

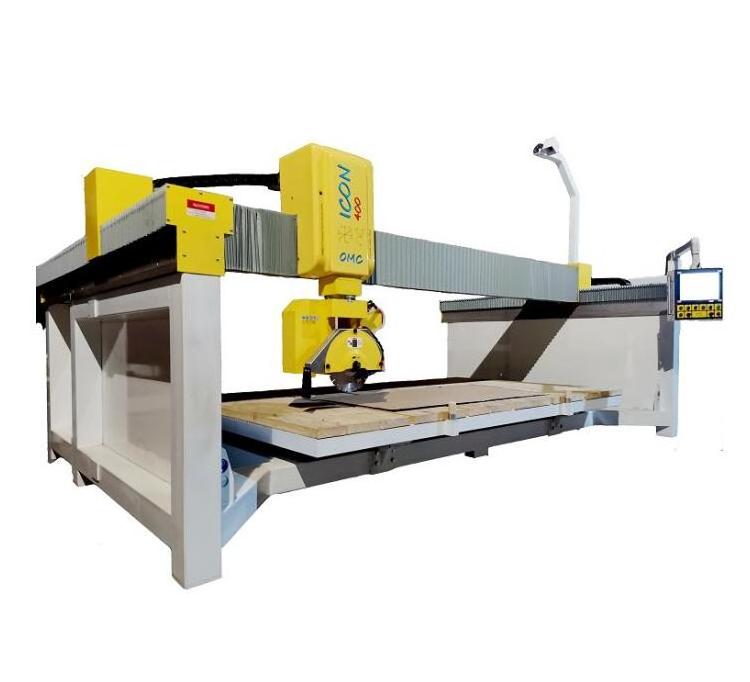

5 AXIS CNC STONE CUTTING MACHINE
ICON400 is the new generation multi-function processing machine which is associated to be designed and manufactured between OMC
and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system,
the machine can be easily operated easily without knowing complicated CNC knowledge.This machine can be used to realize some
advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to
small processing factory and countertop shops.
Characteristic:
1. Powerful 7.5 kW motor with adjustable speed.
2. Full graphic operation with photo typesetting. What you see is what you will get.
3. Support cutting, milling, edge grinding, pofling and laser fixed pointing drawing.
4. High processing accuracy by using precise guide rail and rack.
5. With less electricity and more efficiency, the cost is decreased much.
6. High quality accessories and electric parts are used to secure long service life and low cost.
5. With less electricity and more efficiency, the cost is decreased much.
6. High quality accessories and electric parts are used to secure long service life and low cost.
Specification
|
Model
|
ICON400
|
|
Programming method
|
CAD image input & Manual programming
|
|
Control method
|
CNC
|
|
Power
|
7.5KW (optional 4KW / 11KW)
|
|
Working voltage
|
380V 3phase (customized)
|
|
R.P.M
|
1500-6000r/min
|
|
Blade size
|
400mm
|
|
X-axis working stroke
|
3500mm
|
|
Y-axis working stroke
|
2000mm
|
|
Z-axis working stroke
|
290mm
|
|
A-axis working stroke
|
360° free rotation
|
|
B-axis working stroke
|
0-90°
|
|
X/Y-axis cutting speed
|
1-2000mm/min
|
|
Z-axis cutting speed
|
1-1000mm/min
|
|
A cutting speed
|
0-7r/min
|
|
Cutting thickness
|
100mm
|
|
Processing precision
|
0.2mm
|
|
Working table size
|
3500x2000mm
|
|
Overall size
|
5800x3120x3320mm
|
|
Weight
|
4000kg
|
Product Description
Friendly Note:
Laser fixed-point drawing is optional function. The price shown on the page does not include the function.
Laser fixed-point drawing is optional function. The price shown on the page does not include the function.
Product Function
Packing & Delivery
Outer packaging: Nude packing in one 20'GP
