Quick Details
-
Filling Accuracy:
-
1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YOUNA
-
Dimension(L*W*H):
-
1200mmx300mmx700mm(20-500ml type )
-
Weight:
-
25 KG
-
Core Components:
-
air cylinder
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
manual liquid dispensing machine apply:
-
any liquid material without granule
-
manual liquid dispensing machine range:
-
10-100ml 30-300ml 50-500ml 100-1000ml 500-2500ml 1000-5000ml
-
Machine speed:
-
5-30times/min
-
filling machine nozzle diameter:
-
4/6/8mm
-
manual liquid dispensing machine nozzle:
-
1/2
-
liquid dispensing machine material:
-
304ss
-
liquid dispensing machine operation:
-
pedal control
-
manual liquid dispensing machine control:
-
by move adjuster knob
-
liquid dispensing machine wear part:
-
sealing ring
Quick Details
-
Machinery Capacity:
-
400BPH, 100BPH, 200BPH
-
Packaging Material:
-
liquid
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YOUNA
-
Dimension(L*W*H):
-
1200mmx300mmx700mm(20-500ml type )
-
Weight:
-
25 KG
-
Core Components:
-
air cylinder
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
manual liquid dispensing machine apply:
-
any liquid material without granule
-
manual liquid dispensing machine range:
-
10-100ml 30-300ml 50-500ml 100-1000ml 500-2500ml 1000-5000ml
-
Machine speed:
-
5-30times/min
-
filling machine nozzle diameter:
-
4/6/8mm
-
manual liquid dispensing machine nozzle:
-
1/2
-
liquid dispensing machine material:
-
304ss
-
liquid dispensing machine operation:
-
pedal control
-
manual liquid dispensing machine control:
-
by move adjuster knob
-
liquid dispensing machine wear part:
-
sealing ring
Product Description
Application：
the filling machine is suitable fo
r kinds of paste and liquid material such as
water, juice,
honey, tomato paste, chilli sauce, peanut butter, seasame paste, jam,cosmetic paste, shampoo, etc.
it is widely used in the food, cosmetic, etc.
2. Adopts 304 stainless steel, corrosion resisting, compact structure with easy operation.
3. Filling capacity can be adjusted easily.
4. it can work automatically or controlled by a operation pedal.
5. has single head, double heads and full pneumatic model, if need, pls contact in advance.
Specification
|
item
|
filling machine
|
|
voltage
|
110/220V
|
|
power
|
20w
|
|
filling range
|
5-50ml, 10-100ml, 15-150ml, 30-300ml, 50-500ml, 100-1000ml, 300-1500ml, 300-2600ml, 500-3500ml, 1000-5000ml
|
|
filling mouth diameter
|
3mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 25mm 28mm
|
|
body
|
full stainless steel body, contact material 304SUS, 316SUS accept customized
|
|
filling nozzles
|
1,2,3,4
|
|
work way
|
pneumatic (air compressor)
|
|
air pressure
|
0.5-0.7MPa
|
|
speed
|
5-30bottle/min (influenced by filling volume and operate speed)
|
|
weight
|
30kg (100-1000ml model)
|
Features
Product shows

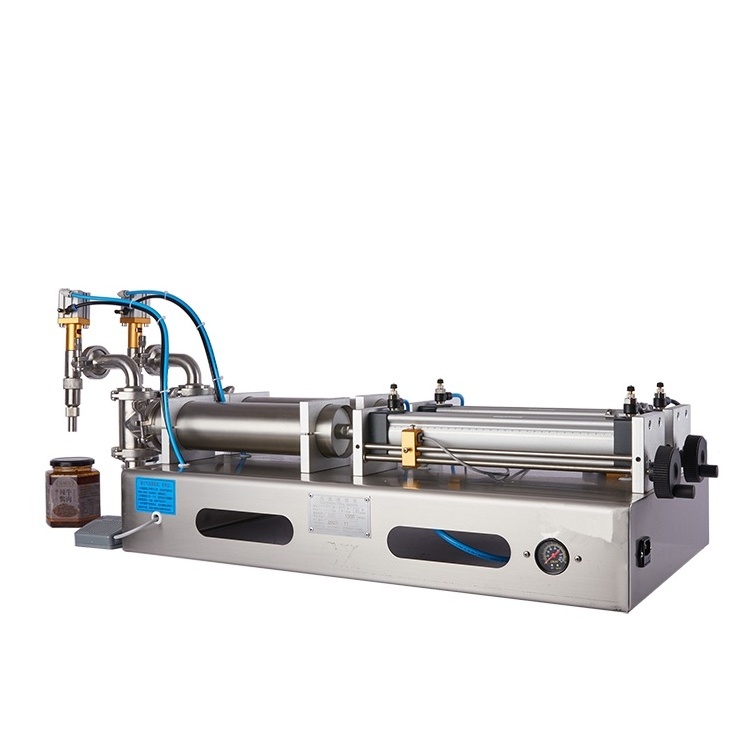

liquid filling machine filling nozzles at one end
liquid filling machine filling nozzles at one side
filling machine with support table
stand model filling machine
liquid filling machine
4 heads filling machine for paste sauce
4 heads filling machine for liquid
