Quick Details
-
Product Name:
-
Door Lock
-
Material:
-
Stainless Steel
-
Application:
-
Warehouse
-
Usage:
-
Storeroom
-
Suitable for:
-
Industrial Safety
-
Type:
-
Door Hardware
-
Certification:
-
RoHS
-
Function:
-
Dead Locking
-
Name:
-
Zinc Alloy Door Lock
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OEM
-
Backset:
-
60mm
-
Product Name:
-
Door Lock
-
Material:
-
Stainless Steel
-
Application:
-
Warehouse
-
Usage:
-
Storeroom
-
Suitable for:
-
Industrial Safety
-
Type:
-
Door Hardware
-
Certification:
-
RoHS
-
Function:
-
Dead Locking
-
Name:
-
Zinc Alloy Door Lock
Product Description
En12209 Din18250
CE
certificate
FIRE

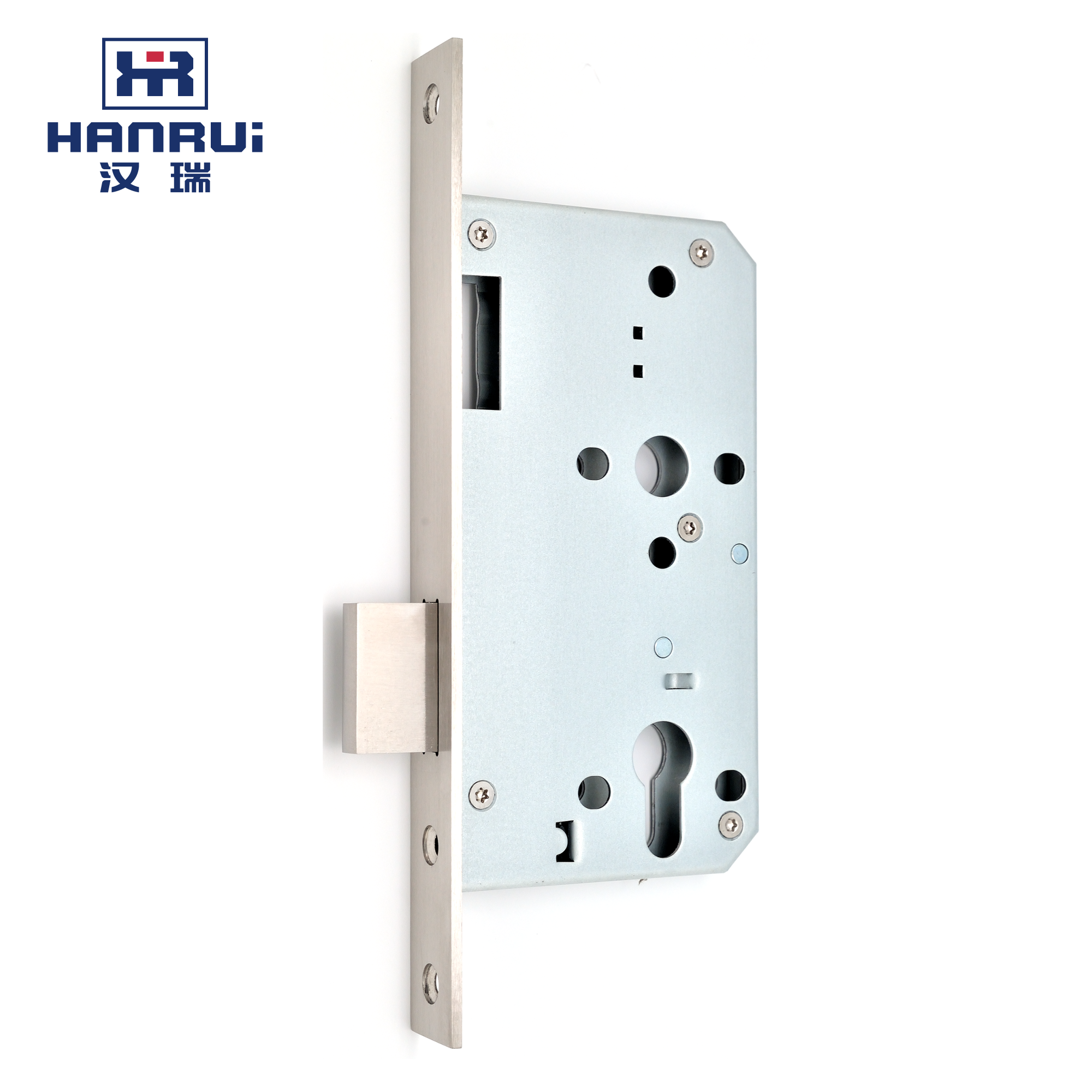

rated deadbolt lock 6072ZD
|
6072ZD
|
Parameter
|
|
Backset
|
60mm
|
|
Center distance
|
72mm
|
|
Fire test-
Timber fire door
|
111 mins
|
|
Fire test-
Steel fire door
|
260 mins
|
|
CE certificate
(Intertek)
|
3 X 9 1 0 G 3 B C 0 0
|
Product Information
|
Intended Use
|
Yes/No
|
Comments
|
Reference
|
|
On hinged doors
|
Yes
|
Locks are tested for side force and end force
|
EN12209:2016
|
|
Supported lock application
|
Yes
|
Tested in accordance with 5.5.1 and 5.11.3 using the fixture 20 or 29 and/or 5.11.5 using fixture 32 with support
|
|
|
Suitability for use on smoke control /fire resistance doorset
|
Yes
|
See manufacturers declaration referring to a test according to EN 1634–1 or declaration of melting point of the relevant latching parts and if applicable the duration of the proven smoke control and/or fire resistance
|
|
|
Lock for use with unsprung handle
|
Yes
|
The lock shall conform to 5.4.6, minimum follower restoring torque of 0,8 Nm
|
|
Application Scenario
Residential,Commercial,Healthcare,Education,Hospitality,Detention
CE Certifications
Packing&Shipping
1PC/BOX, 20PCS/CTN, 1000PCS/PALLET
* Plastic film protects against moisture and transport movement
Product Testing
Durability test (Hinge)
Durability test (Mortise lock)
Test temperature
Durability test (Handle)
Durability test(Cylinder)
Corrosion resistance
Company Introduction
HANRUI
company specialize in Architectural hardware for fire doors (Mortise lock / Lever handle / Profile cylinder / Hinge).
1.
Mortise lock
have CE certification according to EN12209 and EN1634-1
2.
Hinge
have CE certification according to EN1935 and EN1634-1
3.
Brass profile cylinder
has been verified according to EN1303
4.
Lever handle
has been verified according to EN1906
To realize Manufacture and Creation, we continue to improve equipment automation.
