Quick Details
-
Applicable Models:
-
IM608 Diagnostic Tools for All Cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autel
-
Model Number:
-
MaxiIM IM608
-
Warranty:
-
12 Months
-
Product Name:
-
Autel IM608 Key Programmer
-
Function:
-
Key Programming Diagnosis Scan Tool
-
Special Features:
-
IMMO Key Programming Tools
-
Performance:
-
IMMO and Programming All System
-
Item Type:
-
Autel IM608 Car Diagnosis Scanner
-
Application:
-
Diagnostic Tools for All Cars
-
Operating System:
-
Android 4.4.2
-
Feature:
-
XP400 IMMO Key Programmer G-BOX2 ECU Coder
-
Update:
-
1 Year Software
-
Keywords:
-
Autel IM608 Key Programmer
Quick Details
-
Car Fitment:
-
Volkswagen
-
Voltage:
-
12 V (9-24 V)
-
Power:
-
6.5W
-
Applicable Models:
-
IM608 Diagnostic Tools for All Cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autel
-
Model Number:
-
MaxiIM IM608
-
Warranty:
-
12 Months
-
Product Name:
-
Autel IM608 Key Programmer
-
Function:
-
Key Programming Diagnosis Scan Tool
-
Special Features:
-
IMMO Key Programming Tools
-
Performance:
-
IMMO and Programming All System
-
Item Type:
-
Autel IM608 Car Diagnosis Scanner
-
Application:
-
Diagnostic Tools for All Cars
-
Operating System:
-
Android 4.4.2
-
Feature:
-
XP400 IMMO Key Programmer G-BOX2 ECU Coder
-
Update:
-
1 Year Software
-
Keywords:
-
Autel IM608 Key Programmer
Products Description
AUTEL
MaxiIM IM608
Car Diagnosis Tools
J2534 ECU Programming
Table Scanner K
ey Programmer and MaxiFlash ECU Programmer

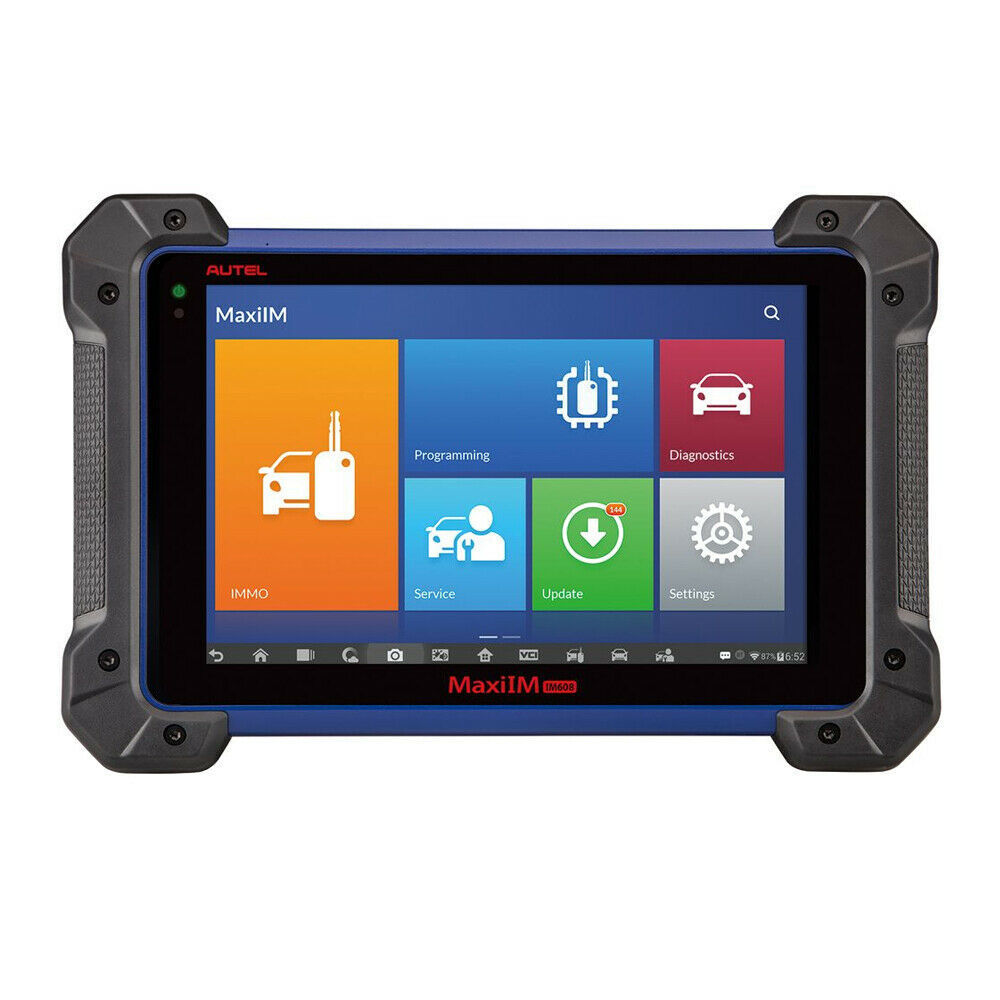

MaxiIM IM608 is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. IM608 provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented key programming and diagnostic tool that you ever wanted.
|
Product Name
|
Autel MaxiIM IM608 IMMO Key Programmer OBD 2 Diagnostic Tool Scanner Machine IM608 PROKPA Key Programming Machine for All Cars
|
|
Operating System
|
Android 4.4.2 KitKat
|
|
Processor
|
Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
|
|
Memory
|
2GB RAM & 64GB On-board Memory
|
|
Display
|
10.1-inch LED capacitive touch screen with 1920x1200 resolution
|
|
Connectivity
|
Wi-Fi (802.11 a/b/g/n/ac)
USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
|
Sensors
|
Gravity Accelerometer, Ambient Light Sensor (ALS)
|
|
Power and Battery
|
15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
|
Input Voltage
|
12 V (9-24 V)
|
|
Power Consumption
|
6.5W
|
|
Operating/Storage Temp
|
0 to 50°C (32 to 122°F)/-20 to 60°C (-4 to 140°F)
|
|
Dimensions(WXHX D)/Net Weight
|
300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.)
|
|
Protocols
|
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
|
Details Images
AUTEL MaxiIM IM608 Car Diagnosis Tools J2534 ECU Programming Table Scanner Key Programmer and MaxiFlash ECU Programmer
• Samsung Exynos 5260(2GB ROM)
• 10.1”1024x768 LCD capacitive touchscreen
• Internal reliable 64GB Memory
• Android Operating System for fast boot-up and multitasking
• Powerful combination of key programming/all system diagnostics/advanced maintenance services
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all key lost) , key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
• Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
• 10.1”1024x768 LCD capacitive touchscreen
• Internal reliable 64GB Memory
• Android Operating System for fast boot-up and multitasking
• Powerful combination of key programming/all system diagnostics/advanced maintenance services
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all key lost) , key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
• Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
