Quick Details
-
Slew Speed:
-
600r/min
-
Optional axis:
-
X Y Z 4 (2/3/4/5/6/8/10Axis Optional)
-
Magnification:
-
X1 X10 X100
-
Frequency Response:
-
0-50kHz
-
Protection Class:
-
IP50
-
Supply Voltage:
-
5-15V/10-30V
-
Output Circuit:
-
Voltage/Line Driver
-
Output Pulse No:
-
25/100
-
Operating Temperature:
-
0-+60°C
Quick Details
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
SANSHENG
-
Model Number:
-
SSK
-
Slew Speed:
-
600r/min
-
Optional axis:
-
X Y Z 4 (2/3/4/5/6/8/10Axis Optional)
-
Magnification:
-
X1 X10 X100
-
Frequency Response:
-
0-50kHz
-
Protection Class:
-
IP50
-
Supply Voltage:
-
5-15V/10-30V
-
Output Circuit:
-
Voltage/Line Driver
-
Output Pulse No:
-
25/100
-
Operating Temperature:
-
0-+60°C

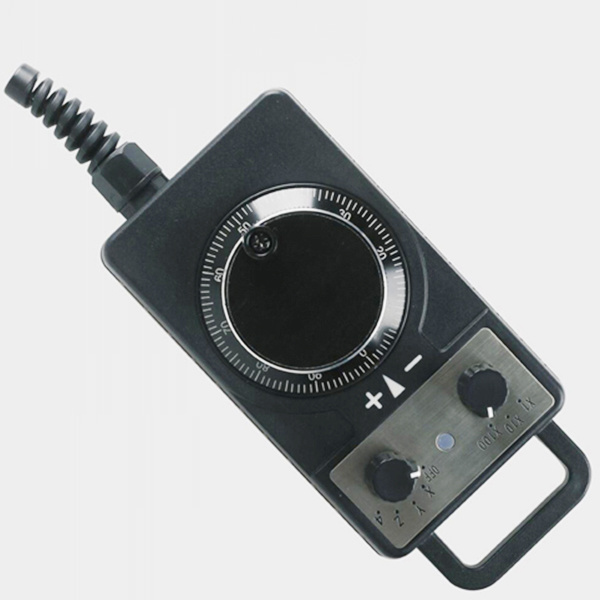

5 axis CNC fanuc machines handwheel mpg pendant
Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.
Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.
Features
1. Mounting part size Φ57.5
2. Thin and Light
3. 3-m3 Screws
4. Metal Gear
5. Clear Rotating Feeling
6. Line Driver Output
7. High Capacity of Resisting Disturbance
8. Suitable for Long Distance Transmission
9. CNC handwheel mpg
| Electrical Specifications | Mechanical Specifications | ||||||
| Supply Voltage DC(V) | 5-15V/10-30V | 5 ±0.5 | Slew Speed | 600r/min | |||
| Output Model | Voltage | Line Driver | Normal Rotational Speed | ≤200r/min | |||
| Current Consumption(mA) | ≤60 | ≤120 | Dial Life | 3× 10 5 turns(≤200r/min) | |||
| Output Voltage(V) | VH | ≥ Vcc-1 | ≥ 2.5 | Environmental Specifications | |||
| VL | ≤0.5 | ≤0.5 | Operating Temperature | 0-+60°C | |||
| Rise/Fall time(ns) | ≤1 | ≤1 | Weight | Appr. 130g | |||
| Frequency Response(kHz) | ≤50 | ≤50 | Protection Class | IP 50 | |||
