High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable

High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable

FOB Reference Price: Get Latest Price
≥1 Sets
US $8600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 years
Place of Origin:
Henan, China
Brand Name:
Nybon
Model Number:
JK/JM
Product Name:
50ton 40ton Single Drum Pulling Electric Slipway Marine Winch
Capacity:
1-100t or customized
Color:
Customer Requirement
Certification:
CCS,CE
Rope Capacity:
50m-1000m or customized
Pulling Speed:
10m/min or customized
Power Supply:
380V 50Hz or customized
Protection Grade:
IP54
Motor:
YZR, YZP
MOQ:
1 Set/Sets

Quick Details

Power:
1400W
Application:
BOAT
Voltage:
220-480V
Warranty:
1 years
Place of Origin:
Henan, China
Brand Name:
Nybon
Model Number:
JK/JM
Product Name:
50ton 40ton Single Drum Pulling Electric Slipway Marine Winch
Capacity:
1-100t or customized
Color:
Customer Requirement
Certification:
CCS,CE
Rope Capacity:
50m-1000m or customized
Pulling Speed:
10m/min or customized
Power Supply:
380V 50Hz or customized
Protection Grade:
IP54
Motor:
YZR, YZP
MOQ:
1 Set/Sets
High And Low Speed 50ton 40ton Single Drum Pulling Electric Slipway Marine Winch with Steel Cable

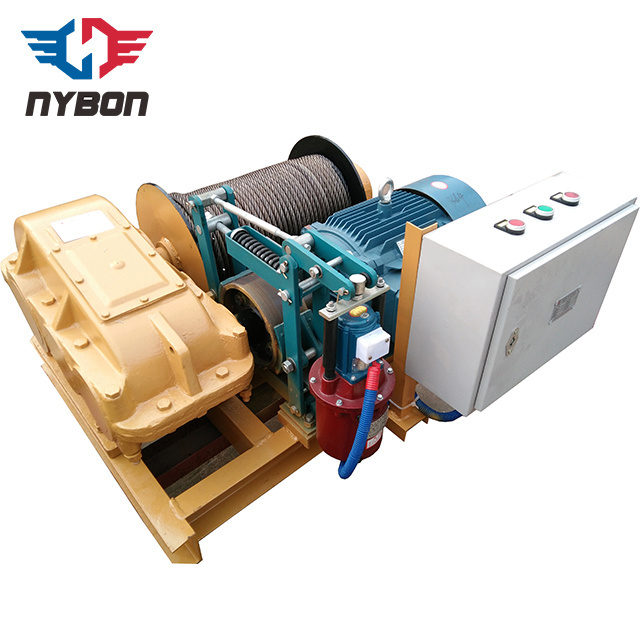

JK/JM series electric winch is is made up of motor, brake, drum, wire rope, electrical appliance, base ect ;This structural characteristic is wire rope orderly arrangement lifting is safe and reliable. Electric winch is mainly used for Vertical lifting, Horizontal pulling, Mooring, Anchoring, slipway, mine,Hydro power station,etc.It is suitable for various bridges, ports, docks, ships and other projects and large-scale plant and equipment installation projects.
Main Features:
> Local / remote control methods; > Bevel/ Spur gear gearbox; > Speed: single/double speed, Variable speed by VFD on optional; > Customized electrical cabinet: PLC, Explosion Proof, Wireless communication,etc; > Accessories: Load cell, Limit switch, encoder, real-time display, safety brake, etc; > Rope Guider on optional; > Flat drum or Grooved drum;
Different types of winches：

JM Type Electric Winch

Load Capacity: 0.5-200t Wire Rope Capacity: 20-3600m
Working Speed: 5-20m/min(Single Speed and Daul Speed)
Power Supply: 220v 690V,50Hz/60Hz,3Phase


Rated Load
(kN)
Rated Speed
(m/min)
Rope Capacity
(m)
Rope Diameter
(mm)
Motor Type
Motor Power
(kW)
JM1
10
15
100
9.3
Y112M-6
3
JM2
20
16
150
13
Y160M-6
7.5
JM5
50
10
270
21.5
YZR160L-6
11
JM8
80
8
250
26
YZR180L-6
15
JM10
100
8
170
30
YZR200L-6
22
JM16
160
10
500
37
YZR250M2-8
37
JM20
200
10
600
43
YZR280S-8
45
JM25
250
9
700
48
YZR280M-8
55
JM32
320
9
700
56
YZR315S-8
75
JM50
500
9
800
65
YZR315M-8
90



JK Type Electric Winch
Load Capacity: 0.5-60t Wire Rope Capacity:20-500m
Working Speed: 20-35m/min(Single Speed and Daul Speed)
Power Supply: 220v-690V,50Hz/60Hz,3Phase


Rated Load
Rated Speed
Rope Capacity
Rope Diameter
Overall Dimension
Total Weight
Model
KN
m/min
m
mm
mm
kg
JK0.5
5
22
190
7.7
620×701×417
200
JK1
10
22
100
9.3
620×701×417
300
JK1.6
16
24
150
12.5
945×996×570
500
JK2
20
24
150
13
945×996×570
550
JK3.2
32
25
290
15.5
1325×1335×840
1011
JK5
50
30
300
21.5
1900×1620×985
2050
JK8
80
25
160
26
1533×1985×1045
3000
JK10
100
30
300
30
2250×2500×1300
5100


JMM Type Electric Winch
Load Capacity: 1-100t Wire Rope Capacity:20-5000m
Working Speed: 5-20m/min
Power Supply: 220v-690V,50Hz/60Hz,3Phase

Items
Rated load (KN)
Rated speed (m/min)
Rope capacity (m)
Rope diameter (mm)
Power (kw)
JMM10
100
10
4800
30
30
JMM16
160
11
4000
34.5
45
JMM20
200
11
3600
39
55
JMM32
320
10
3200
52
75
JMM55
550
5
2000
60
75
Successful Project
Nybon has been exporting to more than 50 countries or regions, including the Russia, Kazakhstan,l Uzbekistan, Turkey, Spain, Netherlands, Italy, South Korea, Thailand, Singapore, Malaysia, Australia, Saudi Arabia, Kenya, Brazil, Peru, Togo, Cameroon, etc. And also many clients visit us from these countries.
Customer Praise
Exhibition
Machining Equipment
We have laser cutting machine, CNC plasma cutting system, box beam forming production line, automatic submerged arc welding system, CNC boring and miling machine, etc. For winches & electric hoists, we have test platform to test each products before delivery to make sure the quality and performance; Under our strictly mangement regulation, our products certificated by EAC, CE, ISO, CCS, BV, RMRS and many other certifcates;
