Quick Details
-
Brand Name:
-
lixian
-
Model Number:
-
HZ-1010A
-
Max. load:
-
5KN,1ton,2ton,option
-
Effective measuring range:
-
0.2%~100%(1 grade)/0.4%~100%(0.5 grade)
-
Certification:
-
CE/Rohs/ISO
-
Accruacy of displacement measurement:
-
Tolerance: ±0.5%/ tolerance: ±0.2%
-
Measuring accuracy:
-
the value ±1% / the value ±0.5%
-
Accurate grade:
-
1 grade /0.5 grade
-
Tester resolution:
-
Max load 1/200000,regardless of inside or outsideconstant
-
Machine size:
-
1200*530*1800mm (lenght*width*height)
-
Range of testing speed:
-
0.001~500mm/min
-
Fixture:
-
according the requirements
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
lixian
-
Model Number:
-
HZ-1010A
-
Max. load:
-
5KN,1ton,2ton,option
-
Effective measuring range:
-
0.2%~100%(1 grade)/0.4%~100%(0.5 grade)
-
Certification:
-
CE/Rohs/ISO
-
Accruacy of displacement measurement:
-
Tolerance: ±0.5%/ tolerance: ±0.2%
-
Measuring accuracy:
-
the value ±1% / the value ±0.5%
-
Accurate grade:
-
1 grade /0.5 grade
-
Tester resolution:
-
Max load 1/200000,regardless of inside or outsideconstant
-
Machine size:
-
1200*530*1800mm (lenght*width*height)
-
Range of testing speed:
-
0.001~500mm/min
-
Fixture:
-
according the requirements
Product Description

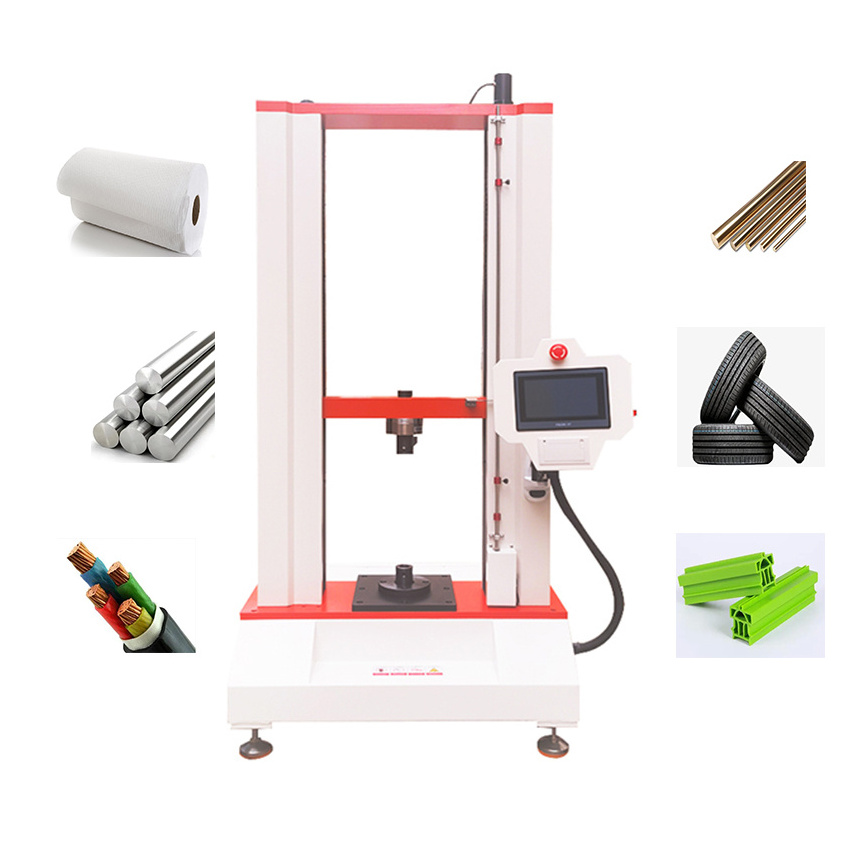

HZ-1010A Touch Screen Controlled Universal Material Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.
corresponding standard 《GB/T16491-1996 electronic universal testing machine》
Specification
|
Brand Name
|
lixian
|
|
Model Number
|
HZ-1010A
|
|
Power
|
Electronic
|
|
Certification
|
CE/ASTM/ISO/ROSH
|
|
Load cell
|
5KN,1ton,2ton, option.(from U.S.A.)
|
|
Accuracy of load measurement
|
the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
|
|
Displacement
|
400,500,600mm
|
|
Data sampling frequency
|
200 times/sec
|
|
Power supply
|
AC 220V single-phase
|
|
Displacement resolution
|
0.001 mm
|
|
Resolution
|
1/50000
|
|
Powre
|
400W
|
|
Machine size
|
1200*530*1800mm(length * width * height)
|
UTM Fixture
Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.
.
