Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Freerchobby
-
Model Number:
-
MP6384
-
Torque:
-
9Nm, 9Nm
-
Dimension:
-
63*84mm
-
Max Power:
-
4000w
-
Motor type:
-
BLDC 6384
-
Brand name:
-
Freerchobby
-
Max volts:
-
12s
-
Motor resistance:
-
0.050ohm
-
Shaft:
-
8/10mm
-
ESC:
-
24-48V/100A
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
9500rpm
-
Continuous Current(A):
-
55A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Freerchobby
-
Model Number:
-
MP6384
-
Torque:
-
9Nm, 9Nm
-
Dimension:
-
63*84mm
-
Max Power:
-
4000w
-
Motor type:
-
BLDC 6384
-
Brand name:
-
Freerchobby
-
Max volts:
-
12s
-
Motor resistance:
-
0.050ohm
-
Shaft:
-
8/10mm
-
ESC:
-
24-48V/100A
-
Certification:
-
ce

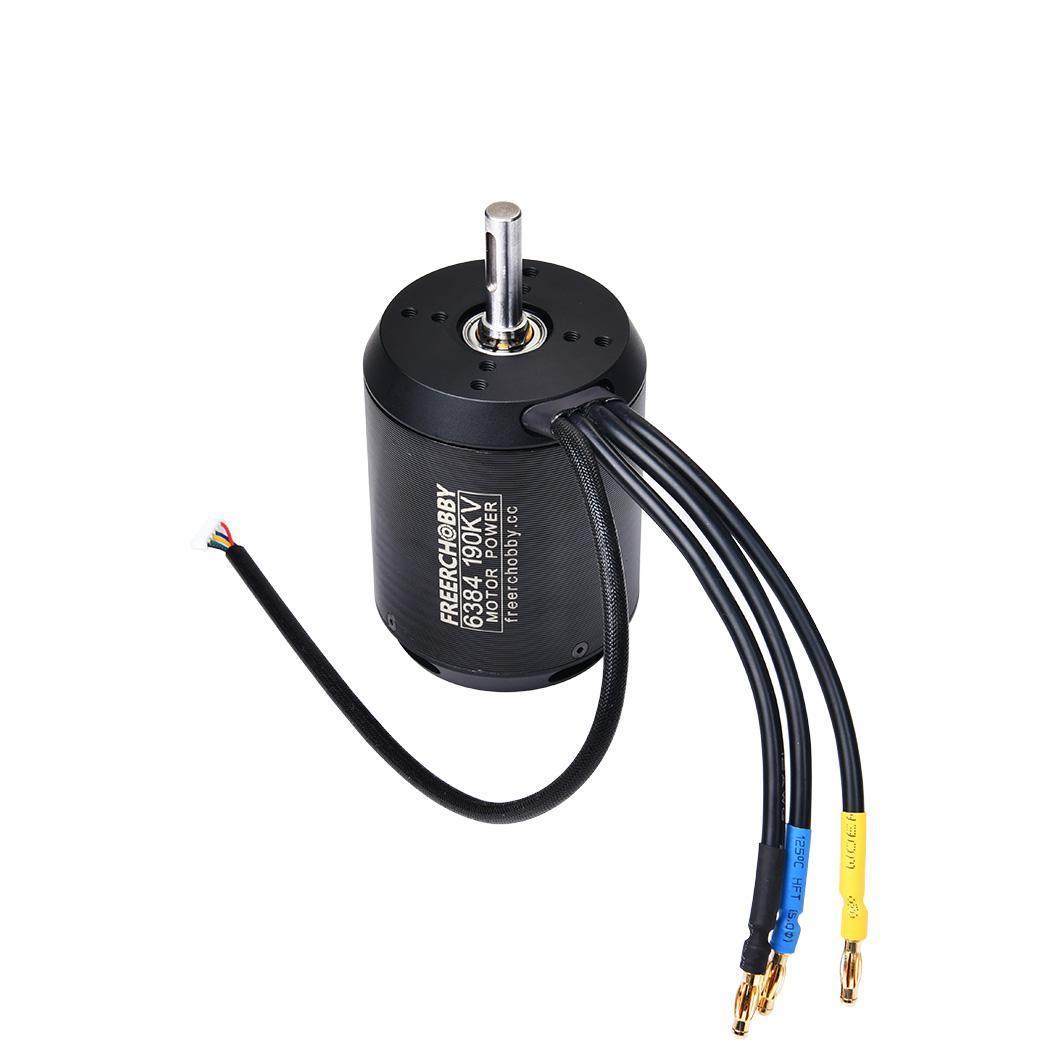

6384 190KV 4000W 12S BLDC Belt Brushless Electric Skateboard Motor
Product Description
| Max power | 4000w |
| Max current | 85Amps |
| No-load current | 1.12A 10V |
| Max volts | 12s |
| Recommend ESC | 3-12s 50A |
| Max Torque | 9Nm |
| Motor Resistance | 0.05Ohm |
| Weight | 1kg |
| The motor length | 84mm |
| The motor diameter | 63mm |
| Shaft | 8/10mm |
| Motor wire | 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector male |
| Wire configuration |
Blue=A Black=B Yellow=C |
| Stator | 0.2mm thickness lamination Japan steel |
| Magnet | N42SH high temp curve magnet |
| Battery typ | Cells Li-Po 4-12s |
| The number of pole | 14 |
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
What's Our Product Feature?
Stator: Lamination Japan steel
12awg high strand silicone wire with 4.0mm gold bullet connectors.
Both support sensor and sensorless mode!
Reference Information:
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
The key for keyawy is not included with motors for shipping
The mechanical diagram:
