FUDA polystyrene rigid foam

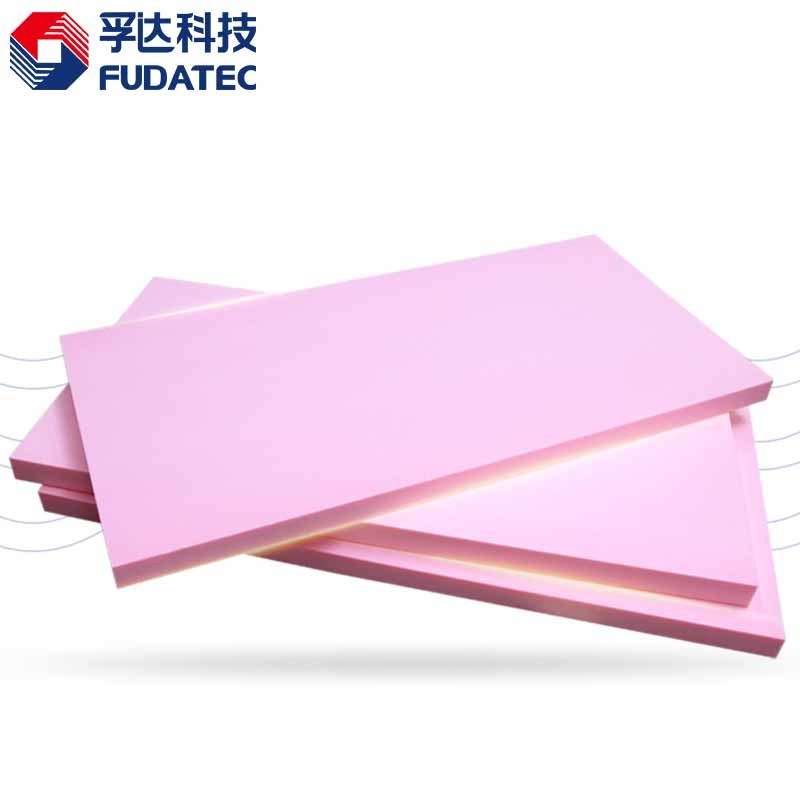

FUDA High Strength XPS Foam Board is a kind of rigid extruded polystyrene thermal insulation material, based on polystyrene resin as the main ingredient, by adding certain proportional additives, is a kind of high-performance rigid foam with honeycomb closed pore structure manufactured through special heating extrusion forming process under the condition of strict quality control through our advanced production lines , the interconnection wall of honeycomb structure has a consistent thickness, and there will be no gap completely, therefore, the uniform organization through extrusion process makes the products have excellent thermal insulation properties, good wet moisture resistance, and high-pressure performance. In addition, closed-cell structures filled with CO2 gas will not cause the ozone layer broken, which is more environmentally friendly compared with conventional CFC gas and HCFC gas.

Our FD COOL Board, a new generation of extruded products for cold chain insulation systems in cold storage. Using green raw materials and additives, product with low stress and low thermal conductivity, environmental friendly, by self-developed unique secondary foaming process. Perfectly adapting to the low-temperature, humid, and freeze-thaw environments of the cold chain system.

The Advantages of our FD XPS:

ü Thermal insulation : A new recipe of blowing agent with low gas-phase thermal conductivity, 0.024W/(m · K) at 25 ℃.. It comes to 0.013W/(m • K) at -20 ℃ ; And the long-term insulation is stable, fully meeting the requirements for cold storage and long-distance transportation of food, drugs, etc. in cold storage and refrigerated trucks.

ü Durability: the thermal conductivity still maintains good insulation after 50 years.

ü Moisture-proof and impermeable: water absorption less than 1%, and vapor permeability coefficient less than 2.0ng/(m·s·Pa).

ü High strength: the compressive strength more than 1.2MPa. The super strong and stable bearing capacity provides technical support for increasing the design capacity of the cold storage and the stability of the overall system, meeting the high pressure needs of various types of elevated warehouses.

ü Green Product: free of HCFC , CFC , low GWP and low ODP damage to the ozone layer ) .

ü Dimensional stability: dimensional stability less than 1%, less deformed, effectively improving the stability and durability of the cold chain cold storage insulation system.

ü Easy application: installation efficiency is high, without secondary decoration.
