Quick Details
-
Brand Name:
-
YABO
-
Model Number:
-
LF4024 12V 400Ah
-
Battery Size:
-
3.2V prismatic 4S2P,522*238*217*217mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
About 37.92kg
-
The charging ratio:
-
200A
-
The discharge rate:
-
200A
-
Product name:
-

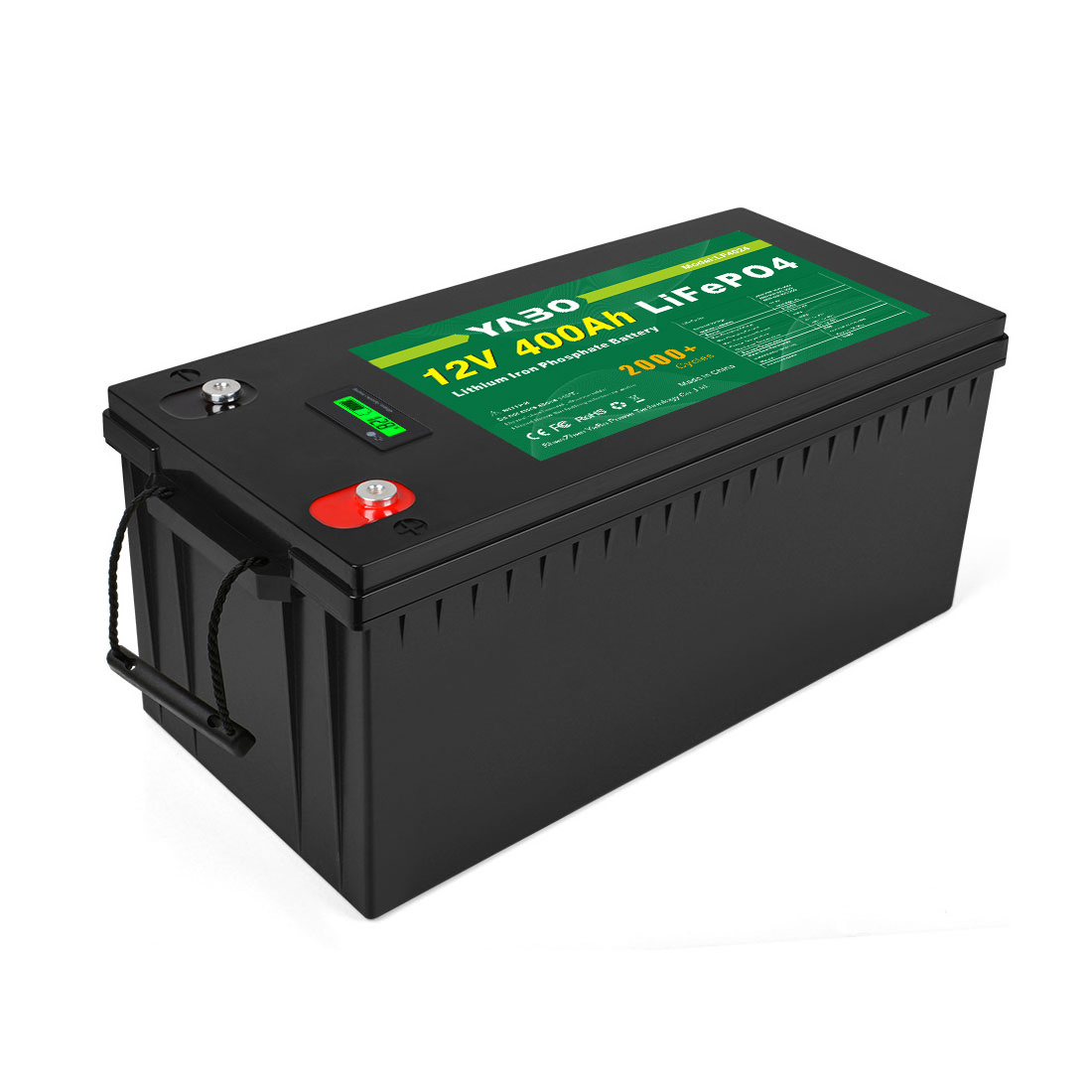

12V 400Ah LiFePO4 Battery
-
Battery Type:
-
50AH 60AH 80AH 100Ah 200Ah 300Ah 400Ah LiFePO4 Battery
-
Charging Current:
-
200A
-
Discharging Current:
-
200A
-
Energe:
-
5120Wh
-
Water Dust Resistance:
-
IP55, Customized
-
Cycle Life:
-
6000+ Times
-
Charging voltage:
-
14.6±0.2V
-
Terminal:
-
M8
-
Certification:
-
CE/IEC/RoHS/UN38.3/FCC/MSDS
Quick Details
-
Storage Type:
-
-20℃~60℃.
-
Anode Material:
-
LFP
-
Application:
-
Solar Energy Storage Systems, BOATS,Golf Carts,SUBMARINES,Electric Power Systems,Power Tools,Electric Forklifts
-
Brand Name:
-
YABO
-
Model Number:
-
LF4024 12V 400Ah
-
Battery Size:
-
3.2V prismatic 4S2P,522*238*217*217mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
About 37.92kg
-
The charging ratio:
-
200A
-
The discharge rate:
-
200A
-
Product name:
-
12V 400Ah LiFePO4 Battery
-
Battery Type:
-
50AH 60AH 80AH 100Ah 200Ah 300Ah 400Ah LiFePO4 Battery
-
Charging Current:
-
200A
-
Discharging Current:
-
200A
-
Energe:
-
5120Wh
-
Water Dust Resistance:
-
IP55, Customized
-
Cycle Life:
-
6000+ Times
-
Charging voltage:
-
14.6±0.2V
-
Terminal:
-
M8
-
Certification:
-
CE/IEC/RoHS/UN38.3/FCC/MSDS
Specification
|
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
|
Nominal Capacity
|
400Ah@0.2C
|
|
|
Energy
|
5120Wh
|
|
|
Internal Resistance
|
≤35mΩ
|
|
|
Cycle Life
|
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C |
|
|
Charging Current
|
100A
|
|
|
Max.Charging Current
|
100A
|
|
Standard Discharging
|
Discharging Current
|
150A
|
|
|
Max. Continuous Current
|
150A
|
|
|
Max.Pulse Current
|
300A(<3S）
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Structure
|
Cell & Format
|
LFP54H4K1(4S2P)
|
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
522*238*217*217mm
|
|
|
Weight
|
Approx. 36.5Kg
|
|
|
Terminal
|
M8
|
Details Images
Test Chart
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Why choose our 12V lifepo4 battery?
12V LiFePO4 (lithium iron phosphate) batteries offer several advantages over other battery types, especially lead-acid batteries. Here are some of the main advantages:
1. High Energy Density: LiFePO4 batteries have a higher energy density compared to lead-acid batteries. This means they can store more energy in a smaller and lighter package, making them suitable for applications where space and weight are important considerations.
2. Longer Cycle Life: LiFePO4 batteries typically have a longer cycle life than lead-acid batteries. They can endure hundreds or even thousands of charge and discharge cycles, which means they last longer and require less frequent replacement.
3. Lightweight: LiFePO4 batteries are significantly lighter than lead-acid batteries with similar capacity. This is especially beneficial in applications where weight matters, such as in recreational vehicles, boats, or portable power solutions.
4. Faster Charging: LiFePO4 batteries can be charged more quickly than lead-acid batteries, reducing downtime and making them more practical for applications where rapid charging is essential.
5. High Discharge Rate: LiFePO4 batteries can deliver a high discharge rate, which is important for applications that require a sudden burst of power, such as starting an engine or powering electric vehicles.
6. Wide Temperature Range: LiFePO4 batteries operate effectively in a wide range of temperatures, from extreme cold to hot conditions, making them suitable for outdoor and automotive applications.
7. Low Self-Discharge Rate: LiFePO4 batteries have a lower self-discharge rate compared to some other battery chemistries, which means they can hold their charge for longer periods without the need for frequent recharging.
8. Maintenance-Free: Unlike lead-acid batteries, LiFePO4 batteries do not require regular maintenance, such as checking electrolyte levels or adding water.
9. Safer Chemistry: LiFePO4 batteries are considered safer than some other lithium-ion chemistries because they are less prone to thermal runaway and do not pose as much of a fire risk. This makes them a preferred choice for applications where safety is a concern.
10. Environmental Impact: LiFePO4 batteries are more environmentally friendly than lead-acid batteries due to their longer lifespan, recyclability, and lower toxic material content.
11. YABO is a professional
factory
supplier.
In the long term, their durability, efficiency and reduced maintenance requirements can make them a cost-effective choice for many applications, particularly in renewable energy systems, electric vehicles and off-grid power solutions.
