Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MX
-
Model Number:
-
MX60420CFM2
-
Voltage:
-
12V
-
Product name:
-
DC Cross Flow Fan
-
Application:
-
Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Re...
-
Size:
-
429X444X489mm
-
Motor:
-
High Performance DC Brushless
-
Bearing Type:
-
Dual Ball Bearing
-
Material:
-
METAL&ALUMINUM ALLOY
-
Function:
-
FG RD IP54 IP58 IP68
-
Speed:
-
1400rpm
-
Noise:
-
50dBA
-
Usage:
-
Cooling System
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Electric Current Type:
-
DC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MX
-
Model Number:
-
MX60420CFM2
-
Voltage:
-
12V
-
Product name:
-
DC Cross Flow Fan
-
Application:
-
Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Re...
-
Size:
-
429X444X489mm
-
Motor:
-
High Performance DC Brushless
-
Bearing Type:
-
Dual Ball Bearing
-
Material:
-
METAL&ALUMINUM ALLOY
-
Function:
-
FG RD IP54 IP58 IP68
-
Speed:
-
1400rpm
-
Noise:
-
50dBA
-
Usage:
-
Cooling System
Details Images

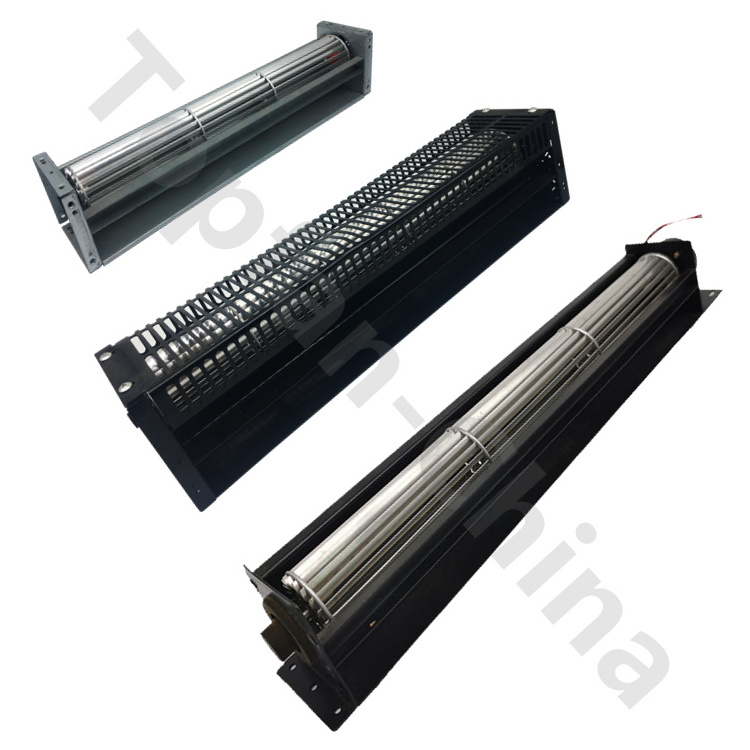

12v High Efficiency Impeller 42mm Cooling Motor Greentech Tangential DC Cross Flow Fan For Fireplace
Product parameters and specifications
|
Model NO.
|
MX60420CFM2
|
Frame size【mm】
|
429
|
|
Frame thickness【mm】
|
489
|
Frame material
|
Mental
|
|
Rate voltage【v】
|
12
|
Operating voltage range【V】
|
8.4～13.2
|
|
Rated current【A】
|
0.6
|
Rated input【W】
|
7.2
|
|
Rated speed 【min-1】
|
1400
|
RO TARY Direction
|
CW
|
|
Max.airflow【cfm】
|
156
|
Max.static pressure【mmAQq】
|
1.7
|
|
Insulation Class
|
Class B
|
SPL【dB(A)】
|
50
|
|
Operating temperature【℃】
|
-20℃～+70℃
|
Expected life【h】
|
30000/60℃(50000/40℃)
|
|
Sensor type
|
Pulse sensor
|
Mass
|
|
|
Ribbed
|
No
|
PWM control function
|
No
|
