You can also connect multiple H803TVs to DVI distributer, each H803TV just control part of the screen
- Product Details
- {{item.text}}
Quick Details
-
Luminous Efficacy(lm/w):
-
90
-
Product Weight（kg）:
-
1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Magic
-
Connection Mode:
-
Wire
-
Controller style:
-
online master controller
-
Support slave controller:
-
255pcs
-
4 port control pixel:
-
400000 pixels.
-
Voltage:
-
DC9V
-
Power Consumption:
-
1W
-
NET Weight:
-
1KG
-
Dimension:
-
L183 x W139 xH40
-
Carton Size:
-
L205 x W168 x H69
-
Support Computer:
-
Windows
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
online master controller
-
Max. Load Power:
-
1W
-
Luminous Efficacy(lm/w):
-
90
-
Product Weight（kg）:
-
1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Magic
-
Connection Mode:
-
Wire
-
Controller style:
-
online master controller
-
Support slave controller:
-
255pcs
-
4 port control pixel:
-
400000 pixels.
-
Voltage:
-
DC9V
-
Power Consumption:
-
1W
-
NET Weight:
-
1KG
-
Dimension:
-
L183 x W139 xH40
-
Carton Size:
-
L205 x W168 x H69
-
Support Computer:
-
Windows
Product Description
1. Features
(1). H803TV is an online master controller that transmits data over DVI/HDMI interface.
(2). Four network interfaces drive maximum 400000 pixels.
(3). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
(4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
(5). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.
(3). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
(4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
(5). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.
(6)Auxiliary slave controller is H802RA and H801RC. Auxiliary software is “LED studio software”
(7)Four ports are separated and configured individually, which means four ports can drive different chips. Four ports control 1020 slave controllers in total, each ports control 255 slave controllers.
(8) Data is transmitted based on standard Ethernet protocol and the transmission distance is up to 100 meters.
2. Supported driver chips
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909,
UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914,
TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002,
DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595,
6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.
Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).
(8) Data is transmitted based on standard Ethernet protocol and the transmission distance is up to 100 meters.
2. Supported driver chips
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909,
UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914,
TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002,
DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595,
6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.
Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).
Package Include
1 pcs controller, 1 pcs USB cable, 1 pcs DVI cable, 1 pcs adaptor
1 pcs controller, 1 pcs USB cable, 1 pcs DVI cable, 1 pcs adaptor
3. Controller and Accessories display
H803TV Online MASTER Controller
Four ports of H803TV can drive different chips, each port can be configured individually.
|
Specifications
|
|
|
|
Support Computer
|
Windows
|
|
|
Input Voltage
|
DC9V
|
|
|
Power Consumption
|
1W
|
|
|
Drive Pixels Number
|
400000
|
|
|
NET Weight
|
1KG
|
|
|
Dimension
|
L183 x W139 xH40
|
|
|
Carton Size
|
L205 x W168 x H69
|
|
USB Cable
HDMI/DVI cable
Adaptor(9V DC 1A output)
5. Basic Workflow

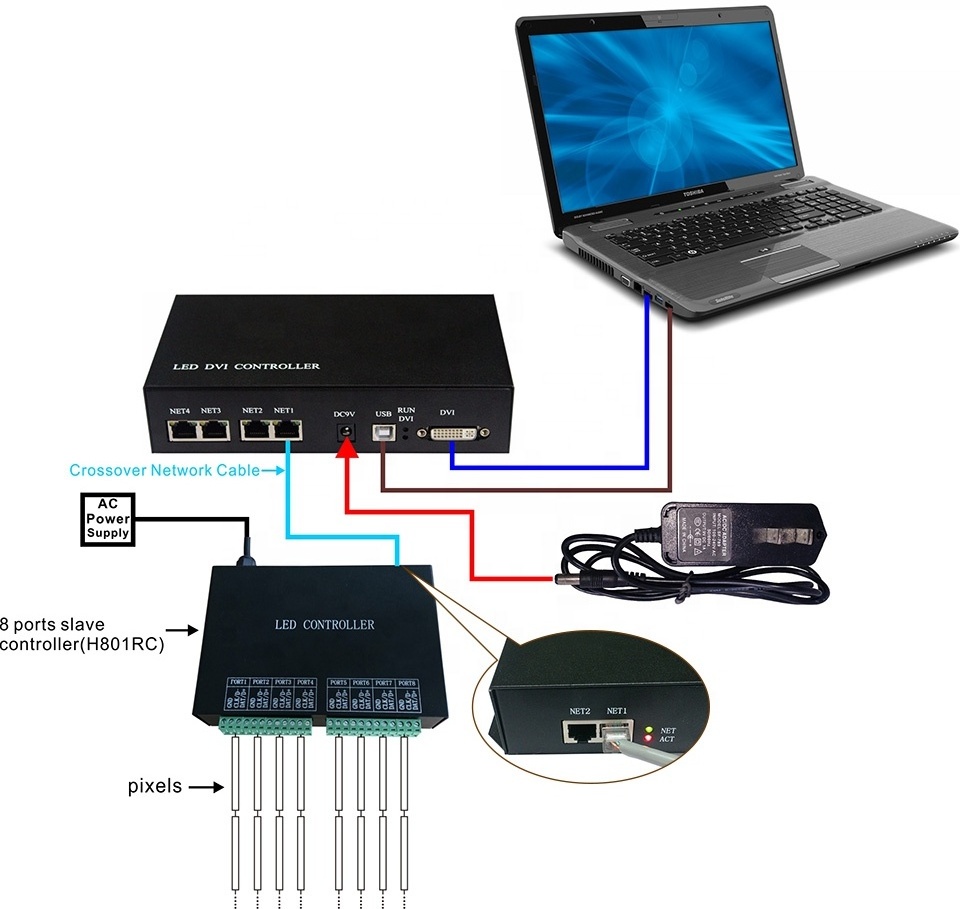

Step 1. Set them up
Step 2. Change the appearance of display
Press WIN+X on keyboard
Please refer to the following settings
Note:
1). H803TV supports the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
2). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
In this manual, i just choose 1024x768 and duplication mode for example.
Then, click "Apply", "OK".
The visible area of your screen should be 1024x768 now.
1). H803TV supports the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
2). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
In this manual, i just choose 1024x768 and duplication mode for example.
Then, click "Apply", "OK".
The visible area of your screen should be 1024x768 now.
Step 3. Configure Led Studio
Open it
Open it
For example if you have a 64(pixels) by 64(pixels) screen.
Click the following icon or "File" -- "New".
Then, click "Apply", pops up the following window.
Origin position: the top left corner of your screen, normally, i set X, Y both to 0
Origin position: the top left corner of your screen, normally, i set X, Y both to 0
Then, click "OK"
In MADRIX
In Jinx
