- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Full Color
-
Panel Size:
-
500*1000mm, 500*1000mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
C-Shine 500*1000
-
Brightness:
-
800cd/sqm
-
Refresh rate:
-
3840Hz
-
Resolution rate:
-
128*256Dots
-
Material:
-
Cast aluminum
-
Average power/㎡:
-
170W/㎡
-
Cabinet size:
-
500*1000*90mm
-
Working temperature:
-
-20~50℃
-
Control system:
-
CHIPSHOW
-
Cabinet weight:
-
13kg
-
Package:
-
Flight Case
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
Chipshow
-
Color:
-
Full Color
-
Panel Size:
-
500*1000mm, 500*1000mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
C-Shine 500*1000
-
Brightness:
-
800cd/sqm
-
Refresh rate:
-
3840Hz
-
Resolution rate:
-
128*256Dots
-
Material:
-
Cast aluminum
-
Average power/㎡:
-
170W/㎡
-
Cabinet size:
-
500*1000*90mm
-
Working temperature:
-
-20~50℃
-
Control system:
-
CHIPSHOW
-
Cabinet weight:
-
13kg
-
Package:
-
Flight Case

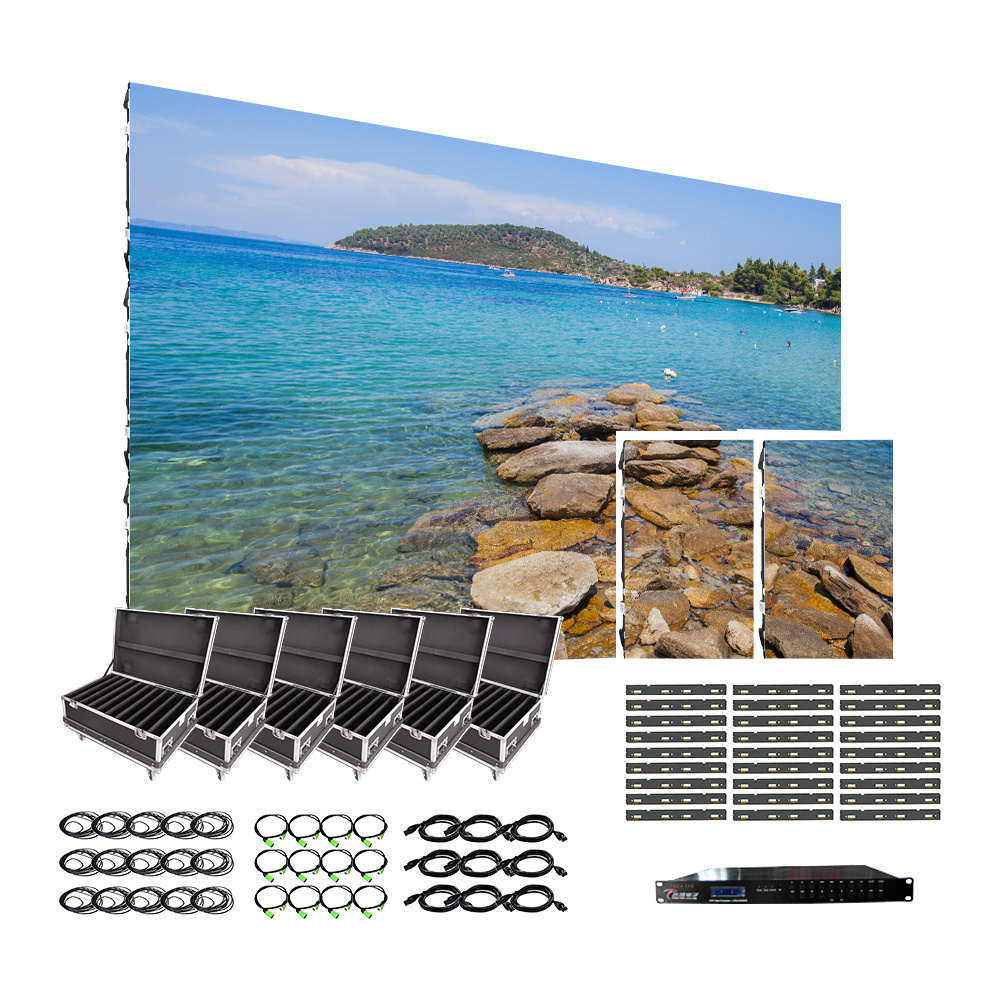

LED Video Wall System Package
What's included:
Led video panels；
Led video processor；
Led video processor；
Rigging Bar；
Power cables；
Power interconnect cables；
Signal cables；
Signal interconnect cables；
Flight Case.
FEATURES
1. High precision cast aluminum cabinet, ultra-thin and light weight, 500x500 ≤ 7.5KG/cabinet, with a thickness of only 90mm;
2. 500X500/500X1000mm cabinets can be mixed and assembled to create a variety of shapes;
3.Both the 500x500mm and 500x1000mm cabinets use a minimalist mini control box of the same model and can be shared, saving installation and calibrating time;
4. Optional curved lock, capable of splicing large screens with ± 10~15 ° inner arc, outer arc, 90°corner, etc;
5. The modular button lock design allows for fast assembly, disassembly and maintenance within 5 seconds;
6. Optional magnetic module can achieve complete assembly, disassembly and maintenance of the module and power supply front the front.
7. Work in silence: no fan, noise ≤ 40DB; Not affecting the on-site audio-visual effect;
8. Point by point calibration: White balance point by point calibration to ensure consistency and uniformity of the display;
9. Background large screen optimization plan; High refresh, SLR, camera 1/3000S shutter capture, no flicker, no ghost scanning line;
10.Indoor and outdoor universal pixel pitches with P1.9/2.6/2.9/3.9/4.8 ets; Specialized in providing overall LED display solutions for events, conferences, stage, product launches and real estate.
Products Description
Buyer Feedback
Technical Parameter
|
Item
|
Value
|
|
Cabinet Size
|
500*1000*90mm
|
|
Cabinet Weight ( per panel)
|
13KG
|
|
Brightness
|
4500-5000CD/㎡
|
|
Viewing Angle (V / H)
|
120°/120°
|
|
Grey Scale
|
65536
|
|
Refresh Rate
|
3840Hz-6240Hz
|
|
Scanning Mode
|
1/16 scanning
|
|
Max. Power Consumption
|
750W/sqm
|
|
Ave. Power Consumption
|
240W/sqm
|
Package and Delivery
|
CHIPSHOW
|
22 Years
|
Why Choose Us
FAQ
Q:Who Are We?
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
A:
Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
