Quick Details
-
Brand Name:
-
WEILI
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
3880X1700X4350mm
-
Weight (T):
-
20 T
-
Model Number:
-
YW32-500TA hydraulic stamping press machine
-
Motor Power (kw):
-
30 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
structure:
-
three beam and four column
-
customized:
-
yes
-
operation:
-
easy
-
control system:
-
adjustment,manual,semi-automatic
-
effective table area:
-
1260x1160mm or customized
-
Product name:
-
500tons hydraulic stamping press machine for metal workpiece
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Return Force (kN):
-
630 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEILI
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
3880X1700X4350mm
-
Weight (T):
-
20 T
-
Model Number:
-
YW32-500TA hydraulic stamping press machine
-
Motor Power (kw):
-
30 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
structure:
-
three beam and four column
-
customized:
-
yes
-
operation:
-
easy
-
control system:
-
adjustment,manual,semi-automatic
-
effective table area:
-
1260x1160mm or customized
-
Product name:
-
500tons hydraulic stamping press machine for metal workpiece
500tons hydraulic stamping press machine for metal workpiece

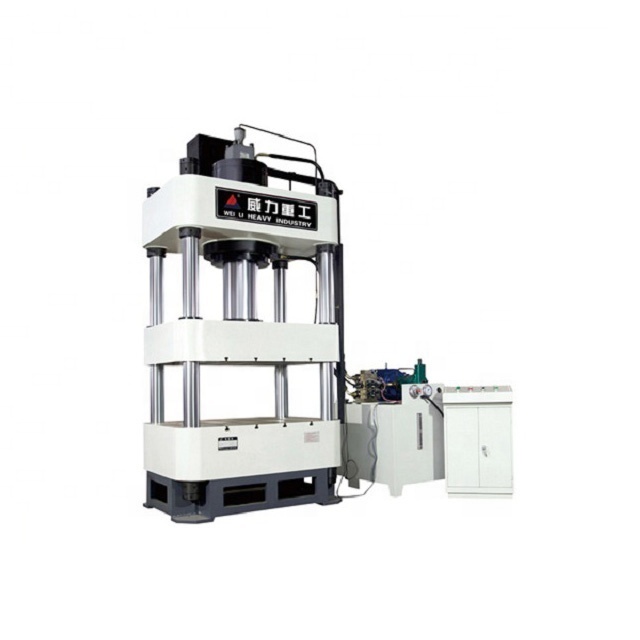

PRODUCT DISPLAY (YW32-500TA)
| MAIN PARAMETER | UNIT | YW32-500TA |
| Normal pressure | kN | 5000 |
| Max. working pressure of liquid | Mpa | 25 |
| Max. travel of oil cylinder | mm | 600 |
| Largest open | mm |
1200 |
| Effective area of table | mm |
L.R: 1260 F.B: 1160 |
| Table height | mm | 650 |
| Floor space | mm |
3880x1700 |
| Height of machine | mm | 4350 |
| Rapid feed speed | mm/s | 120 |
| Working speed | mm/s | 12-16 |
| Return speed | mm/s | 71 |
| Motor power | kw | 30 |
| Pressure of under Dinggang | kN | 630 |
| Travel of upper Dinggang | mm | 300 |
Feature
1. computer optimized structure design,three beam and four pillar structure, simple,econimical and practical.
2. Hydraulic control system adopt cartridge valve intergrated system,reliable,long life and small hydraulic impact,reducing the link pipe and leak points.
3. Independent electrical controlling system.working reliable,easy maintanance.
4. Adopt thr button centralized control,with adjustment for manual and semi-automatic operation.
5. Through operator panel to choose from,can be achieved given away two constant pressure forming process,and have features such as security during rolling.
6. Slider working pressure load and slow down quickly work into the travel range can be adjusted according to process requirments.
Our factory can customized this machine according to your mold and requirment.
OPTIONAL INSTALLATION
1. Blanking damping installation
2. screen safety protection device
3. Touch display screen in industrial
4. Rapid clamp mold installation
5. Floating guideway and rolling bracket for changing mold
6. Slider locking installation
7. Removable table
8. Oil cooling installation
9. Ramming installtion
DETAIL DISPLAY
ABOUT US
Shandong Weili Heavy Industry Machine CO.,LTD. have a hard-earned reputation for durability and reliability, and are built to last. From the start, our mission has been focused on offering our clients affordable, heavy-duty machine tools, without sacrificing quality and performance. And with a nationwide dealer network, we are committed to providing our clients with the highest level of responsive service and support.
