Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGBAOYUAN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
500*165*220CM
-
Weight (KG):
-
4500 kg
-
Product Name:
-
qt4-18 block making machine
-
Raw material:
-
Sand cement gravel ash ect
-
Keywords:
-
Hydraulic Cement Brick Block Making Machine
-
Brick type:
-
Road Paver Block
-
Advantage:
-
Automatic Hydraulic Block Production Line
-
Mould:
-
Customized Mould
-
Function:
-
Multifunctional
-
Rated pressure:
-
20Mpa
-
Application:
-
Buliding Construction
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGBAOYUAN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
500*165*220CM
-
Weight (KG):
-
4500 kg
-
Product Name:
-
qt4-18 block making machine
-
Raw material:
-
Sand cement gravel ash ect
-
Keywords:
-
Hydraulic Cement Brick Block Making Machine
-
Brick type:
-
Road Paver Block
-
Advantage:
-
Automatic Hydraulic Block Production Line
-
Mould:
-
Customized Mould
-
Function:
-
Multifunctional
-
Rated pressure:
-
20Mpa
-
Application:
-
Buliding Construction
Brief introduction QTJ4-18 Hydraulic Concrete and paving block making machine
whatsapp:+8618605394116

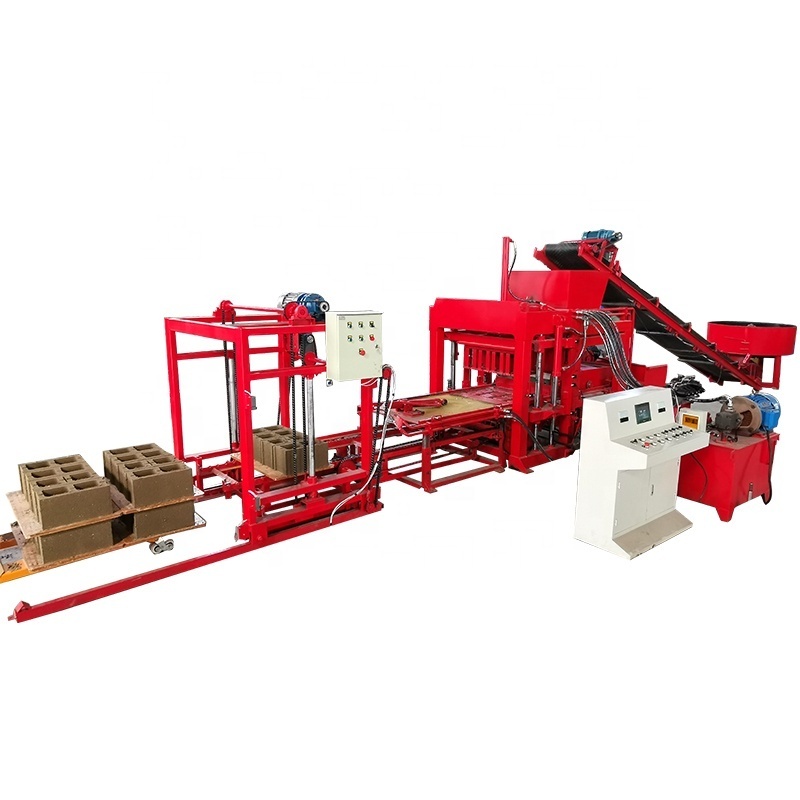

This QT4-18 Is A Fully Automatic Stationary Type Concrete Block, Paver Block, And Solid Block Making Machine.(Multi Purpose)This machine comes with complete Automatic setup with Mixer machine, Belt conveyors, storage box, and feeder box, concrete block machine and hydraulic pallet lifting trolley. The machine automatic units are controlled by high end PLC for prefect operations.The machine can be operated semiautomatic mode also.
This machine is suitable for high production projects/units/factory. All type of concrete blocks, Paver blocks, Hollow blocks,Interlock paving blocks of any measurements can be designed based on customer’s requirement.
This model is engineered and designed by OUR FACOTY based on industry demand. It is suitable all type of whether
climates like USA, Middle east, Africa Europe.
|
Technical parameter of QT4-18 block brick making machinery
|
|
|
|
Overall size
|
3600X1650X2200mm
|
|
|
Forming cycle
|
18-25s
|
|
|
Vibration frequency
|
2800-4200r/m
|
|
|
Pallet size
|
850x550x20mm
|
|
|
Electric source
|
220v/380/440v/50hz or 60hz as request.
|
|
|
Power
|
18.5kw
|
|
|
Total weight
|
4200kgs
|
|
|
Shaping Method
|
hydraulic press+ vibration
|
|
|
Hydraulic pressure
|
15-22mpa
|
|
|
Mixer
|
JQ500
|
|
|
Production Capacity
|
|
|
|
|
|
|||||
|
No.
|
Size(L*W*H)
|
Block Type
|
Pcs/mould
|
Pcs/hr
|
Pcs/8hr
|
|||||
|
01
|
400*200*200mm
|
Hollow blocks
|
4
|
720
|
5760
|
|||||
|
02
|
400*100*200mm
|
Hollow blocks
|
7
|
1260
|
10080
|
|||||
|
03
|
400*150*200mm
|
Hollow blocks
|
5
|
900
|
7200
|
|||||
|
04
|
240*115*52mm
|
Solid bricks
|
26
|
6240
|
49920
|
|||||
|
05
|
200*160*60mm
|
Color pavers
|
9
|
2160
|
17280
|
|||||
|
06
|
500*350*150mm
|
Curbstones
|
3
|
720
|
5760
|
|||||
If you produce color pavers, just add color feeding system.
You can also add stacker for this machine.
QTJ4-18 Hydraulic block molding machine
Automatic block stacker
JQ500 Pan mixer
Belt Conveyor 5m
Hydraulic Manual trolley
Color material feeder
hydraulic station and PLC controller
Block mould
Package: nude package in 20'FT container.we will use pe film for packing or pack it according to customers special request.
Delivery time :within 25 days after payment
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
me fWe Hongbaoyuan machinery are engaged in manufacturing and supplying a high class array of Block and Brick Making Machines. Under the offered array, we have
Concrete Block Making Machine,Interlocking Brick Making Machine and Diesel Engine Brick Making Machine.
The demand of offered machines are rising as these ensure reliable performance, have sturdy construction and require minimum maintenance. To ensure that our offered machines have listed below features, we manufacture these using optimum quality raw material with the assistance of experts.
We are your one stop supplier of inexpensive of interlocking brick making machine.
Contact me freely for more details:
whatsapp:+8618605394116
wechat:kekeruru
