Quick Details
-
Brand Name:
-
PV/HCTC/TRUEMAX
-
Dimension(L*W*H):
-
About 4000*3000*3500 mm
-
Weight:
-
45000 KG
-
Product Name:
-
symons cone crusher
-
Color:
-
Yellow/White
-
Customized:
-
accepted
-
Function:
-
Secondary, tertiary crusher
-
Spare parts supply:
-
Any time in Stock
-
Feeding Size:
-
188-368mm
-
Discharge Setting Size:
-
16-64mm
-
Installation:
-
Engineers Guide in the jobsite
-
Technical service:
-
The whole using life
-
Structure:
-
Casting/Welding body
Quick Details
-
Application:
-
Energy & Mining
-
Capacity(t/h):
-
181-720Tons
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PV/HCTC/TRUEMAX
-
Dimension(L*W*H):
-
About 4000*3000*3500 mm
-
Weight:
-
45000 KG
-
Product Name:
-
symons cone crusher
-
Color:
-
Yellow/White
-
Customized:
-
accepted
-
Function:
-
Secondary, tertiary crusher
-
Spare parts supply:
-
Any time in Stock
-
Feeding Size:
-
188-368mm
-
Discharge Setting Size:
-
16-64mm
-
Installation:
-
Engineers Guide in the jobsite
-
Technical service:
-
The whole using life
-
Structure:
-
Casting/Welding body

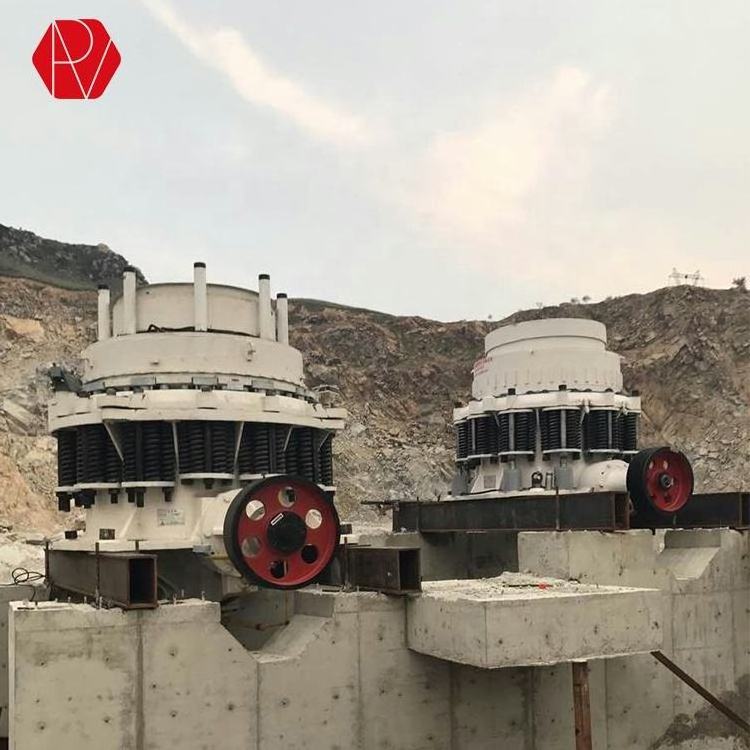

The SYMONS cone crusher adopts the classic technologies from the United States.It is a high-performance crusher with the principle of lamination.
It is suitable for medium and fine crushing which are widely applied in the secondary and tertiary crushing processes,the features including:flexible drive,hydraulic adjustment,automatic cavity clearing,less return materials(can be reduced to 35%),etc.It is used in mining,construction,hydraulic engineering,chemical industry and some other fields.
| STANDARD SYMONS CONE CRUSHERS | ||||||||||||||
| Open Circuit-capacities In Tons Per Hour Passing Through The Crusher At Indicated Discharge Setting "A" | ||||||||||||||
| Size | Type of Cavity | Recommended Minimum Discharge Setting A | Feed Opening With Min. Recommended Discharge Setting A | Capacitise in Tons Per Hour At Each Discharge Setting Size(mm) | ||||||||||
| B Closed Side | B Open Side | 9 | 13 | 16 | 19 | 22 | 25 | 31 | 38 | 51 | 64 | |||
| 3ft (900mm) | fine | 9mm | 83mm | 102mm | 45 | 59 | 72 | 81 | 91 | |||||
| coarse | 13mm | 159mm | 175mm | 59 | 72 | 91 | 109 | 118 | 136 | 163 | ||||
| extra coarse | 25mm | 163mm | 178mm | 128 | 147 | 175 | 196 | |||||||
| 4ft (1200mm) | fine | 9mm | 127mm | 131mm | 63 | 90 | 108 | 126 | 140 | 153 | 167 | |||
| medium | 13mm | 156mm | 156mm | 99 | 117 | 135 | 144 | 162 | 180 | 198 | ||||
| coarse | 19mm | 178mm | 191mm | 140 | 153 | 180 | 198 | 243 | 306 | |||||
| extra coarse | 25mm | 231mm | 250mm | 189 | 207 | 252 | 315 | |||||||
| 4-1/4ft (1275mm) | fine | 13mm | 109mm | 137mm | 109 | 127 | 145 | 154 | 163 | 181 | ||||
| medium | 16mm | 188mm | 210mm | 132 | 159 | 172 | 200 | 227 | 253 | 309 | ||||
| coarse | 19mm | 216mm | 241mm | 172 | 195 | 218 | 249 | 295 | 378 | |||||
| extra coarse | 25mm | 238mm | 259mm | 236 | 276 | 324 | 398 | 455 | ||||||
| 5-1/2ft (1650mm) | fine | 16mm | 188mm | 209mm | 181 | 204 | 227 | 258 | 295 | 327 | ||||
| medium | 22mm | 213mm | 241mm | 258 | 290 | 336 | 381 | 437 | 595 | |||||
| coarse | 25mm | 241mm | 269mm | 354 | 417 | 454 | 610 | 720 | ||||||
| extra coarse | 38mm | 331mm | 368mm | 538 | 630 | 743 | ||||||||
| 7ft (2100mm) | coarse | 31mm | 334mm | 369mm | 789 | 844 | 1088 | 1257 | ||||||
| extra coarse | 38mm | 425mm | 460mm | 880 | 1179 | 1361 | ||||||||
| SHORT HEAD SYMONS CONE CRUSHERS | ||||||||||||||
| Open Circuit-capacities In Tons Per Hour Passing Through The Crusher At Indicated Discharge Setting ''C'' | ||||||||||||||
| Size | Type of Cavity | Recommended Minimum Discharge Setting C | Feed Opening with Min. Recommended Discharge Setting C | Capacitise in Tons Per Hour At Each Discharge Setting Size(mm) | Power | |||||||||
| D Closed Side | D Open Side | 3 | 5 | 6 | 10 | 13 | 16 | 19 | 25 | |||||
| 3ft (914mm) | fine | 3mm | 13mm | 41mm | 27 | 41 | 54 | 68 | 90 | 75kw | ||||
| medium | 3mm | 33mm | 60mm | 27 | 41 | 54 | 68 | 90 | 100 | |||||
| coarse | 6mm | 51mm | 76mm | 59 | 73 | 95 | 113 | 127 | ||||||
| 4ft (1219mm) | fine | 5mm | 29mm | 57mm | 50 | 77 | 86 | 122 | 131 | 110kw | ||||
| medium | 8mm | 44mm | 73mm | 90 | 137 | 144 | ||||||||
| coarse | 13mm | 56mm | 89mm | 140 | 162 | 180 | ||||||||
| extra coarse | 16mm | 89mm | 117mm | 144 | 167 | 189 | 216 | |||||||
| 4-1/4ft (1295mm) | fine | 3mm | 29mm | 64mm | 36 | 59 | 82 | 104 | 136 | 163 | 155kw | |||
| medium | 6mm | 54mm | 89mm | 82 | 104 | 136 | 163 | |||||||
| coarse | 8mm | 70mm | 105mm | 109 | 159 | 181 | 200 | 227 | ||||||
| extra coarse | 16mm | 98mm | 133mm | 209 | 236 | |||||||||
| 5-1/2ft (1676mm) | fine | 5mm | 35mm | 70mm | 90 | 136 | 163 | 209 | 240kw | |||||
| medium | 6mm | 54mm | 89mm | 136 | 163 | 209 | 253 | 281 | ||||||
| coarse | 10mm | 98mm | 133mm | 190 | 253 | 281 | 308 | 336 | ||||||
| extra coarse | 13mm | 117mm | 133mm | 253 | 281 | 308 | 336 | |||||||
| 7ft/HD (2134mm) | fine | 5mm | 51mm | 105mm | 190 | 270 | 345 | 360 | 408 | 475 | 512 | 400kw | ||
| medium | 10mm | 95mm | 133mm | 354 | 408 | 454 | 508 | 560 | ||||||
| coarse | 13mm | 127mm | 178mm | 454 | 480 | 540 | 599 | |||||||
| extra coarse | 16mm | 152mm | 203mm | 508 | 590 | 653 | ||||||||
