Y-130NO/NC is designed for wooden door, metal door, PVC door and so on. The products of our company are various and full-equipped. The operating principle of electric strike is that the electric power turns into magnetic force. Electric strike has two working modes: one of the mode is door locked when power off. The another modesisdoorlockedwhenpoweron
- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-
Electric Strike Lock
-
Feature:
-
FailSecure(Y-130NO);Fail Safe(Y-130NC)
-
Voltage:
-
DC 12V
-
Current:
-
400mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Weight:
-
0.4kg
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
-
HoldingStength:
-
500kg
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
Y130
-
Product Name:
-
Electric Strike Lock
-
Feature:
-
FailSecure(Y-130NO);Fail Safe(Y-130NC)
-
Voltage:
-
DC 12V
-
Current:
-
400mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Weight:
-
0.4kg
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
-
HoldingStength:
-
500kg
-
Certification:
-
CE
Product Description
Adjustable Access Control System Lock Tongue Secure Glass Door Locker Unlock Mode NC NO 12V Narrow Type Electric Strike Lock
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Feature
|
Fail Safe
|
|
|
||
|
Strike Structure
|
Stainless Steel
|
|
|
||
|
Voltage
|
DC12V (Need Order DC24V)
|
|
|
||
|
Current
|
200mA(Y-130NO);200mA(Y-130NC)
|
|
|
||
|
Feature
|
Fail Secure(Y-130NO); Fail Safe(Y-130NC)
|
|
|
||
|
Suitable For:
|
Wooden Door,Metal Door,PVC Door
|
|
|
||
|
Surface Temperature
|
Within +20℃
|
|
|
||
|
Suitable Temperature
|
-10~+55℃(14-131F)
|
|
|
||
|
Operating Humidity
|
0~90%(non-condensing)
|
|
|
||
|
Face plate Housing
|
Painted Steel
|
|
|
||
|
Function
|
Built-out MOV
|
|
|
||
|
Weight
|
0.4kg
|
|
|
||
Product Advantage

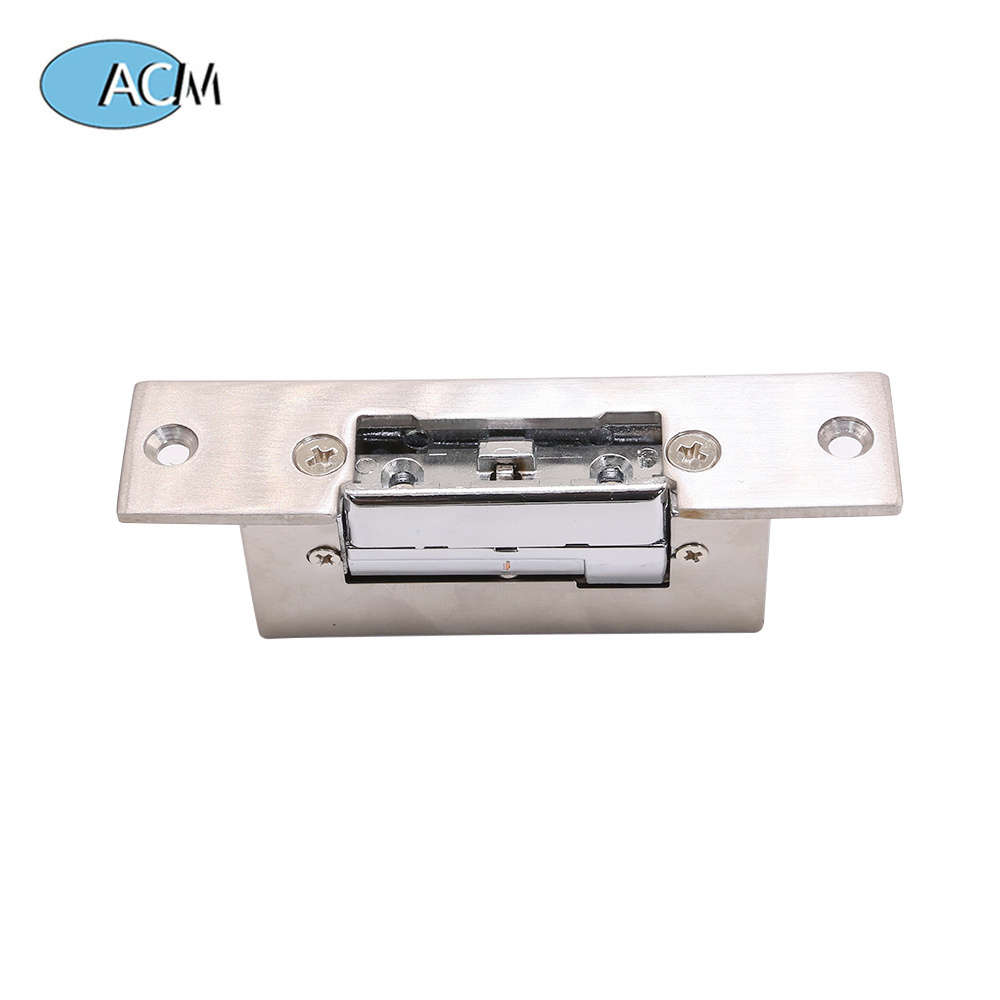

ACM-Y130 NO/NC is the electric strike with long faceplate. It has two modes: A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power. Electric strikes come in many varieties.
More Features and Functions for This Stainless Steel Electronic Stripe (NC/NO)
Instalation Diagram
Quality Warranty
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
