Quick Details
-
Place of Origin:
-
Henan, China
-
Dimensions:
-
1270mmX590X1075mm
-
Weight (KG):
-
165 KG
-
Product name:
-

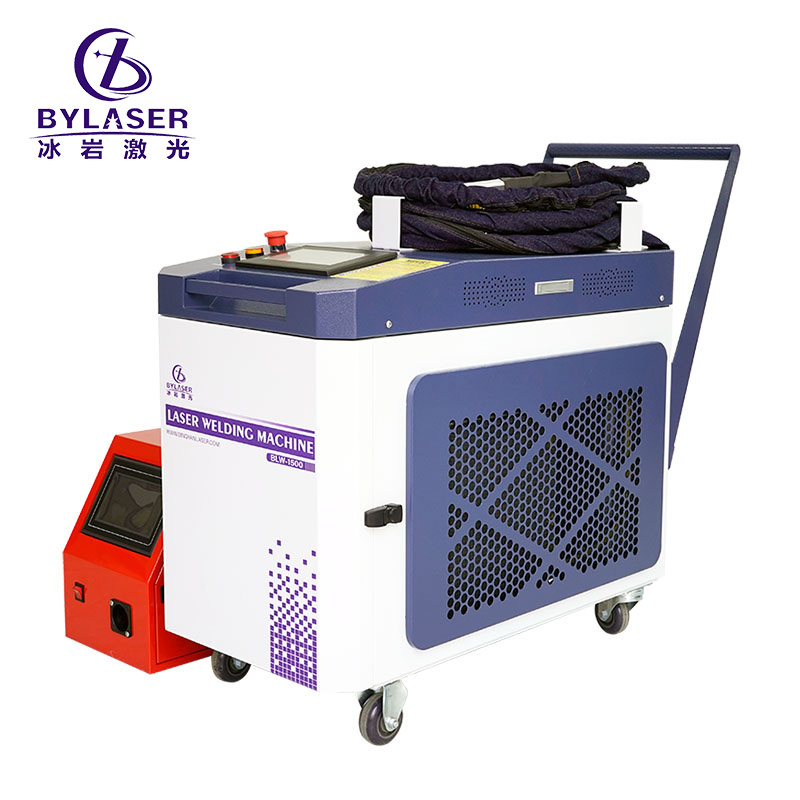

Handheld Laser Welding Machine
-
Laser type:
-
Continuous Fiber Laser
-
Application material:
-
Aluminum Stainless Steel Carbon Steel
-
Laser power:
-
1000W 1500W 2000W 3000W Optional
-
Cooling System:
-
Water Cooling System
-
Power Supply:
-
220V/380V 50HZ/60Hz
-
Function:
-
Welding Cleaning Cutting Metal Materials
-
Certification:
-
CE.ISO9001
-
Operating system:
-
LEIZE V1.1
-
After-sales Service Provided:
-
Video Technical Support
Quick Details
-
Max. Output Power:
-
3000W
-
Usage:
-
metal welding
-
Laser Source Brand:
-
MAX
-
Place of Origin:
-
Henan, China
-
Dimensions:
-
1270mmX590X1075mm
-
Weight (KG):
-
165 KG
-
Product name:
-
Handheld Laser Welding Machine
-
Laser type:
-
Continuous Fiber Laser
-
Application material:
-
Aluminum Stainless Steel Carbon Steel
-
Laser power:
-
1000W 1500W 2000W 3000W Optional
-
Cooling System:
-
Water Cooling System
-
Power Supply:
-
220V/380V 50HZ/60Hz
-
Function:
-
Welding Cleaning Cutting Metal Materials
-
Certification:
-
CE.ISO9001
-
Operating system:
-
LEIZE V1.1
-
After-sales Service Provided:
-
Video Technical Support
* Welded firmly, fast welding speed. weld seam is smooth and even, deep
molten pool, high strength.
* Light and flexible handheld welding head for welding at any angle, Pure
* Light and flexible handheld welding head for welding at any angle, Pure
copper welding nozzle, integrated gas protection system, keeping you safe
without getting tired.
* Integrated and ergonomic design,the volume is only 0.23m³;With universal
casters,it is easy to move and put in the car.
* The first-line supplier--MAX Laser, provides a high-quality experience of
* Integrated and ergonomic design,the volume is only 0.23m³;With universal
casters,it is easy to move and put in the car.
* The first-line supplier--MAX Laser, provides a high-quality experience of
stability, high efficiency, energy saving and low cost.
* The smart control panel and multilingual support, allowing you to easily
* The smart control panel and multilingual support, allowing you to easily
operate and understand the status of the machine in real time.
* Direct water-cooling, high-efficiency heat dissipation, energy saving while
allowing the machine to run in good condition.
we can provide free proofing service！
OEM&ODM Supported.
* Direct water-cooling, high-efficiency heat dissipation, energy saving while
allowing the machine to run in good condition.
we can provide free proofing service！
OEM&ODM Supported.
Sample Show
Suitable for welding stainless steel/carbon steel/copper/aluminum/gold/
silver/chrome/nickel/etc. various metals and alloys in many materials.
Technical Parameters
|
Laser Power
|
1000W
|
1500W
|
2000W
|
||
|
Central Wavelength
|
1080nm
|
|
|
||
|
Laser Running Mode
|
Continuous Mode
|
|
|
||
|
Frequency
|
10-20KHz
|
|
|
||
|
Fiber Cable Length
|
10m
|
|
|
||
|
Cooling Type
|
Water Cooling
|
|
|
||
|
Scanning Width
|
100mm
|
|
|
||
|
Voltage
|
Single phase
220V,50/60Hz
|
|
Three phaser 380V,50/60Hz
|
||
|
Total Consumption
|
5KW
|
8KW
|
10KW
|
||
Why Choose Us
FAQ
1. Who are we?
We are based in Hena,China,start from 2010,sell to Domestic Market(50.00%),North America(8.00%),Eastern Asia(8.00%),Western Europe(8.00%),Sourh America(4.00%),Southeast Asia(4.00%),Africa(4.00%),Oceania(4.00%),Northern Europe(4.00%),Southern urope(4.00%),South Asia(2.00%).There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
We are based in Hena,China,start from 2010,sell to Domestic Market(50.00%),North America(8.00%),Eastern Asia(8.00%),Western Europe(8.00%),Sourh America(4.00%),Southeast Asia(4.00%),Africa(4.00%),Oceania(4.00%),Northern Europe(4.00%),Southern urope(4.00%),South Asia(2.00%).There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What should I do when something goes wrong with the laser?
We offer a one-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
4.Are you a manufacturer or a trading company?
We are a manufacturer established in 2010 ,now in Luoyang CN. Committed to providing the majority of users with economic,high-quality laser equipment. Welcome to our factory.
5.How long does it take to learn the laser?
The machine is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
6.Will the laser machine be safe during transport?
(1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.
So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time.
We offer a one-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
4.Are you a manufacturer or a trading company?
We are a manufacturer established in 2010 ,now in Luoyang CN. Committed to providing the majority of users with economic,high-quality laser equipment. Welcome to our factory.
5.How long does it take to learn the laser?
The machine is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
6.Will the laser machine be safe during transport?
(1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.
So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time.
