Quick Details
-
Material:
-
Natural Rubber
-
Frame material:
-
Nylon Tire Cord Fabric
-
Layer:
-
Customized
-
Diameter:
-
Customized
-
Length:
-
Customized
-
Usage:
-
Widely
-
Certificate:
-
DNV GL BV CCS LR
-
Standard:
-
ISO14409: 2011
-
Lifespon:
-
6-10 years
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ocean shield
-
Product Name:
-

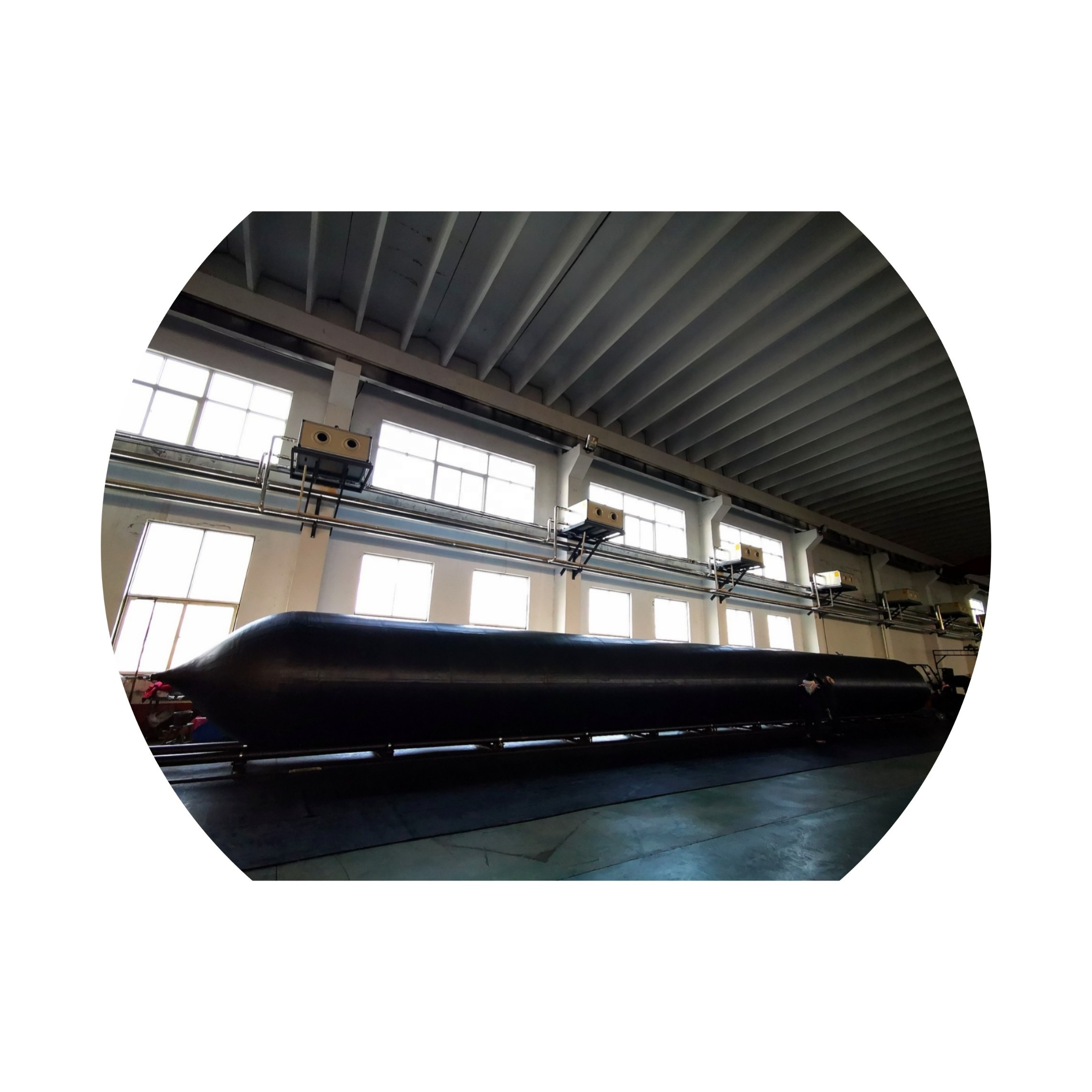

Ship Moving Floating Dock Dry Dock Marine Rubber Airbags Balloons
-
Material:
-
Natural Rubber
-
Frame material:
-
Nylon Tire Cord Fabric
-
Layer:
-
Customized
-
Diameter:
-
Customized
-
Length:
-
Customized
-
Usage:
-
Widely
-
Certificate:
-
DNV GL BV CCS LR
-
Standard:
-
ISO14409: 2011
-
Lifespon:
-
6-10 years
Product Description
Features of our
Ship Moving Floating Dock Dry Dock Marine Rubber Airbags Balloons
:
Fully compliant with ISO 14409 standard
High bearing capacity
High resistance to knead ability
The new structure design of accounts at the end
Optimization of structural layout
Durable anti-aging abilities and wear characteristics
Higher flexibility and shock absorption ability
The cord layers we produced are using polyamide fiber, 3 ply which can extend the airbags' life
Fully compliant with ISO 14409 standard
High bearing capacity
High resistance to knead ability
The new structure design of accounts at the end
Optimization of structural layout
Durable anti-aging abilities and wear characteristics
Higher flexibility and shock absorption ability
The cord layers we produced are using polyamide fiber, 3 ply which can extend the airbags' life
Specification
|
TYPE
|
Guaranteed Working Pressure
|
|
|
|
|
|
|||||
|
|
D=0.8m
(D=2.62ft)
|
D=1.0m
(D=3.28ft)
|
D=1.2m
(D=3.94ft)
|
D=1.5m
(D=4.92ft)
|
D=1.8m
(D=5.90ft)
|
D=2.0m
(D=6.56ft)
|
|||||
|
JZ-3
|
0.13Mpa
(18.85psi)
|
0.10Mpa
(14.50psi) |
0.09Mpa
(13.05psi) |
0.07Mpa
(10.15psi) |
0.06Mpa
(8.70psi) |
0.05Mpa
(7.25psi) |
|||||
|
JZ-4
|
0.17Mpa
(24.66psi) |
0.13Mpa
(18.85 psi) |
0.11Mpa
(15.95 psi) |
0.09Mpa
(13.05psi) |
0.08Mpa
(11.60psi) |
0.07Mpa
(10.15psi) |
|||||
|
JZ-5
|
0.21Mpa
(30.46psi) |
0.17Mpa
(24.66psi) |
0.13Mpa
(20.31psi) |
0.11Mpa
(15.95psi) |
0.09Mpa
(13.05psi) |
0.08Mpa
(11.60psi) |
|||||
|
JZ-6
|
0.25Mpa
(36.26psi) |
0.20Mpa
(29.01psi) |
0.17Mpa
(24.66psi) |
0.13Mpa
(18.85psi) |
0.11Mpa
(15.95psi) |
0.10Mpa
(14.50psi)
|
|||||
