Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
JQ19-11TSB
-
Contact material:
-
Silver
-
Certificate:
-
CQC,CCC
-
Function:
-
Push On
-
application:
-
emergency stop
-
material:
-
red metal
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65/IP67/IP68
-
Max. Current:
-
3A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
JQ19-11TSB
-
Contact material:
-
Silver
-
Certificate:
-
CQC,CCC
-
Function:
-
Push On
-
application:
-
emergency stop
-
material:
-
red metal
-
Certification:
-
CE

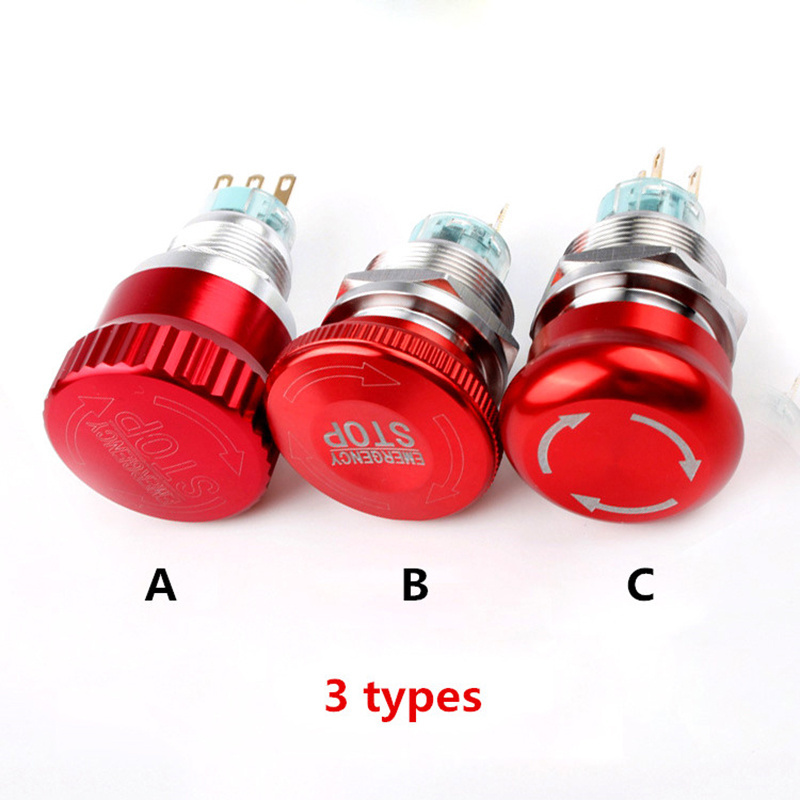

16mm 19mm 22mm big red dome metal mushroom push button switch emergency stop switch
High quality LAY37 LAY090 660V push button switch protective cover
Feature
Should button structure design match nation and Europe total body CE safety attestation request, according to nations IEC947 and En6-0947 and CCC nation the GB14048.5-2001 produce examination.
Install a way adoption Luo mother fix type structure install,touch some switch to have half close The mold piece turn a design and surround half closing type structure,wooden blocks type install structure usage safety can Depend,Connect the line is clear at a glance,the structure’s design be skillful reasonable.Take to have quakeproof from rise bolt Carry son,connect line serew not loose move to shed off to install to make firm.
Overall dimension
Specification
|
JQ19-11TSB |
||
|
Tail type |
wiring terminal |
|
|
Switch specification |
3A/250vAC |
|
|
Contact resistance |
Less than 50m ohm |
|
|
Insulation resistance |
More than 1000M ohm |
|
|
Dielectric strength |
2000vac |
|
|
Operating temperature |
-20 ~ +55 degree |
|
|
Mechanical life |
More than 500000 times |
|
|
Electrical life |
More than 50000 times |
|
|
Panel thickness |
1~10mm |
|
|
torque |
5~14Nm |
|
|
Operating pressure |
About 4N |
|
|
Operating Stroke |
About 1.0mm |
|
|
Protection degree |
IP65, IK08 |
|
|
material |
contact |
Silver alloy |
|
button |
Nickel plated brass/Stainless steel |
|
|
enclosure |
Nickel plated brass/Stainless steel |
|
|
base |
PA66 |
|
